Installation Procedure

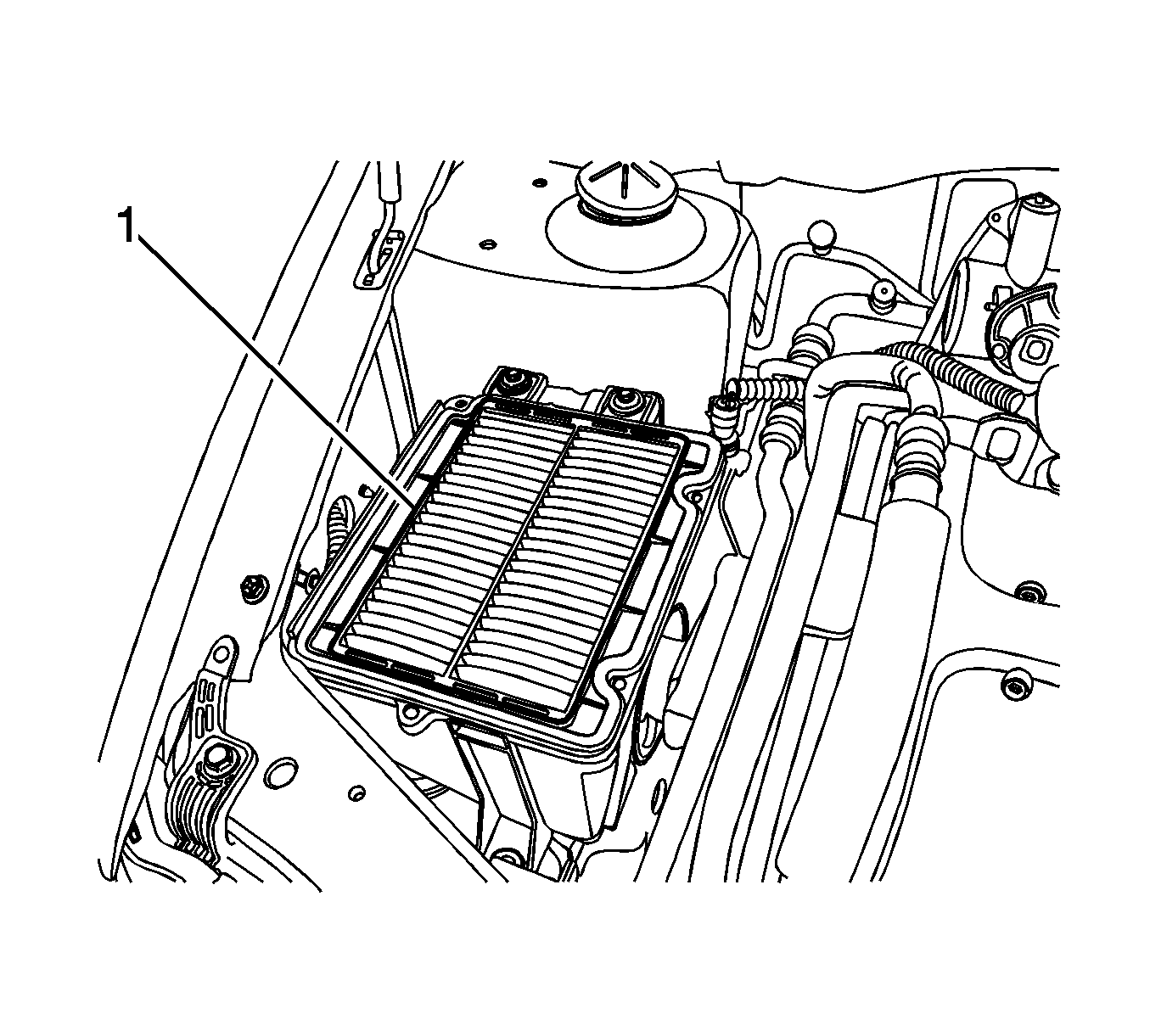

    Fig 1: Air Filter Element
    GM2033774Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the air filter element (1).
  2. Install the air filter upper housing.

    Tighten:  Tighten the air filter upper housing bolts to 2 N.m (1.5 lb ft).
