Memory Seat Module (MSM) X2 (AN3)
Courtesy of GENERAL MOTORS CORP. Memory Seat Module (MSM) X2 (AN3)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 GY |
6206 |
Low Reference |
| 2 |
0.35 PK |
2426 |
Low Reference (without KB6) |
| 3 |
0.35 YE |
2080 |
Low Reference (without KB6) |
| 4 |
- |
- |
Not Used |
| 5 |
0.35 TN |
2482 |
Low Reference (without KB6) |
| 0.35 PK |
2426 |
Low Reference (KB6) |
| 6 |
0.35 PK |
2435 |
Low Reference (without KB6) |
| 0.35 YE |
2080 |
Low Reference (KB6) |

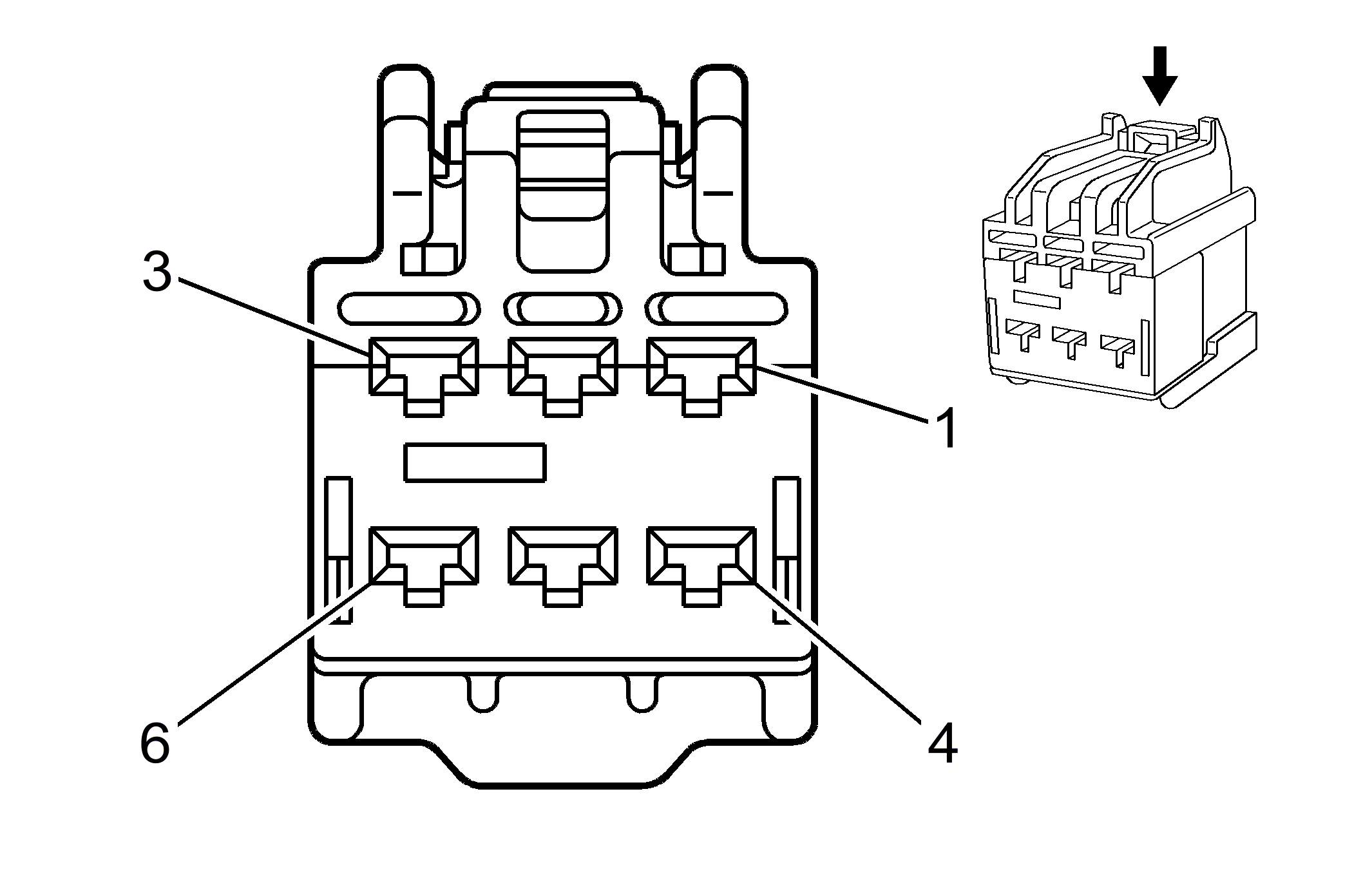

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 6098-4607
- Service Connector: 88989497
- Description: 6-Way F (BK)
|
Terminal Part Information
- Terminated Lead: 13575577
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 8100-4443/22
- Core/Insulation Crimp: E/A
|
