Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

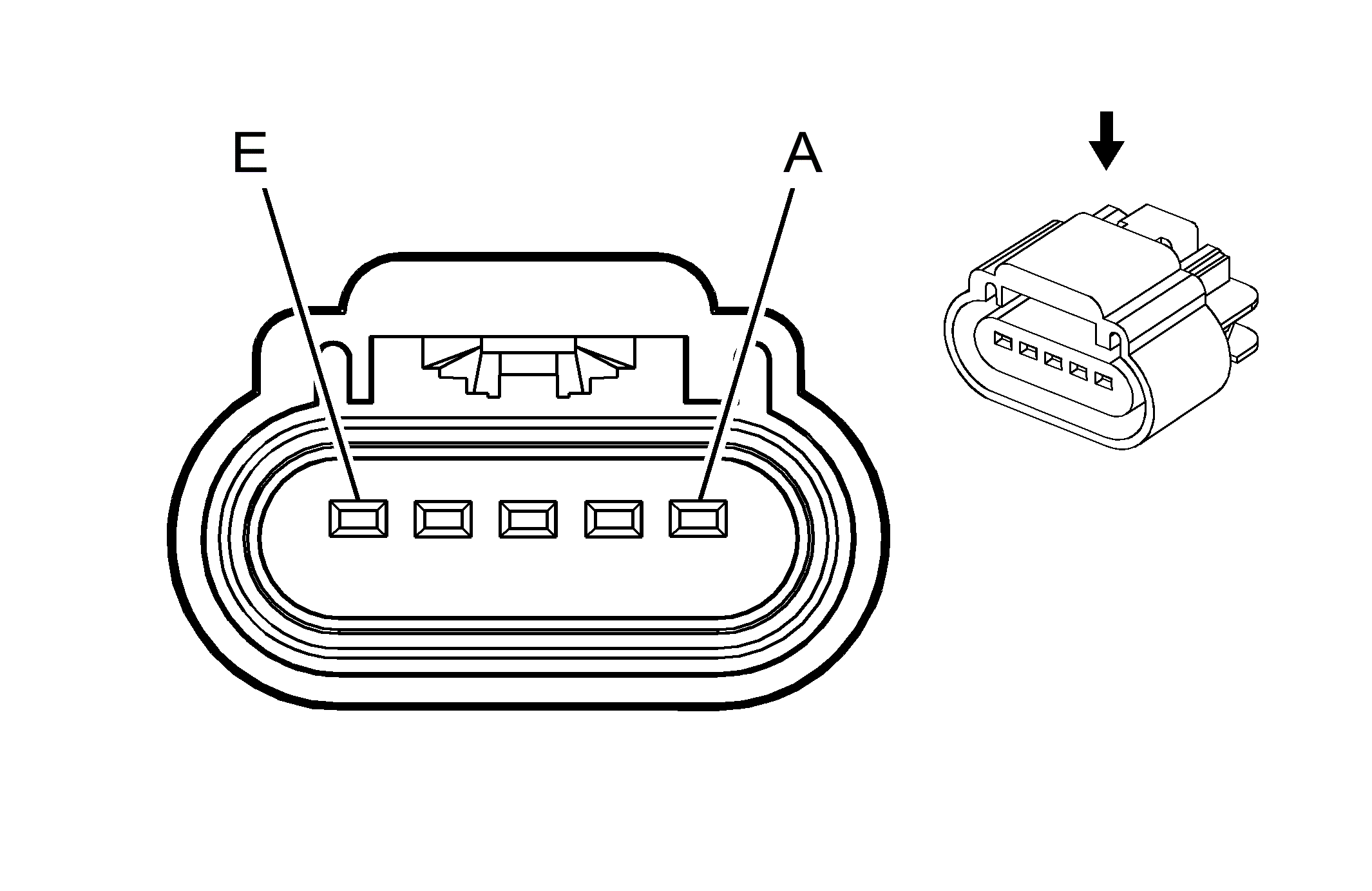

Courtesy of GENERAL MOTORS CORP. Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 TN |
2760 |
Low Reference |
| B |
0.5 TN/BK |
472 |
Intake Air Temperature (IAT) Sensor Signal |
| C |
0.5 YE |
492 |
Mass Air Flow (MAF) Sensor Signal |
| D |
0.5 PK |
1839 |
Ignition Voltage |
| E |
0.5 BK/WH |
451 |
Ground |
Connector Part Information
- Harness Type: Engine
- OEM Connector: 13519912
- Service Connector: 13501881
- Description: 5-Way F GT 150 Series, Sealed (D-GY)
|
Terminal Part Information
- Terminated Lead: 13575413
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 12191819/8
- Core/Insulation Crimp: E/1
|
