Liftgate Module (LGM) X2 (E61)

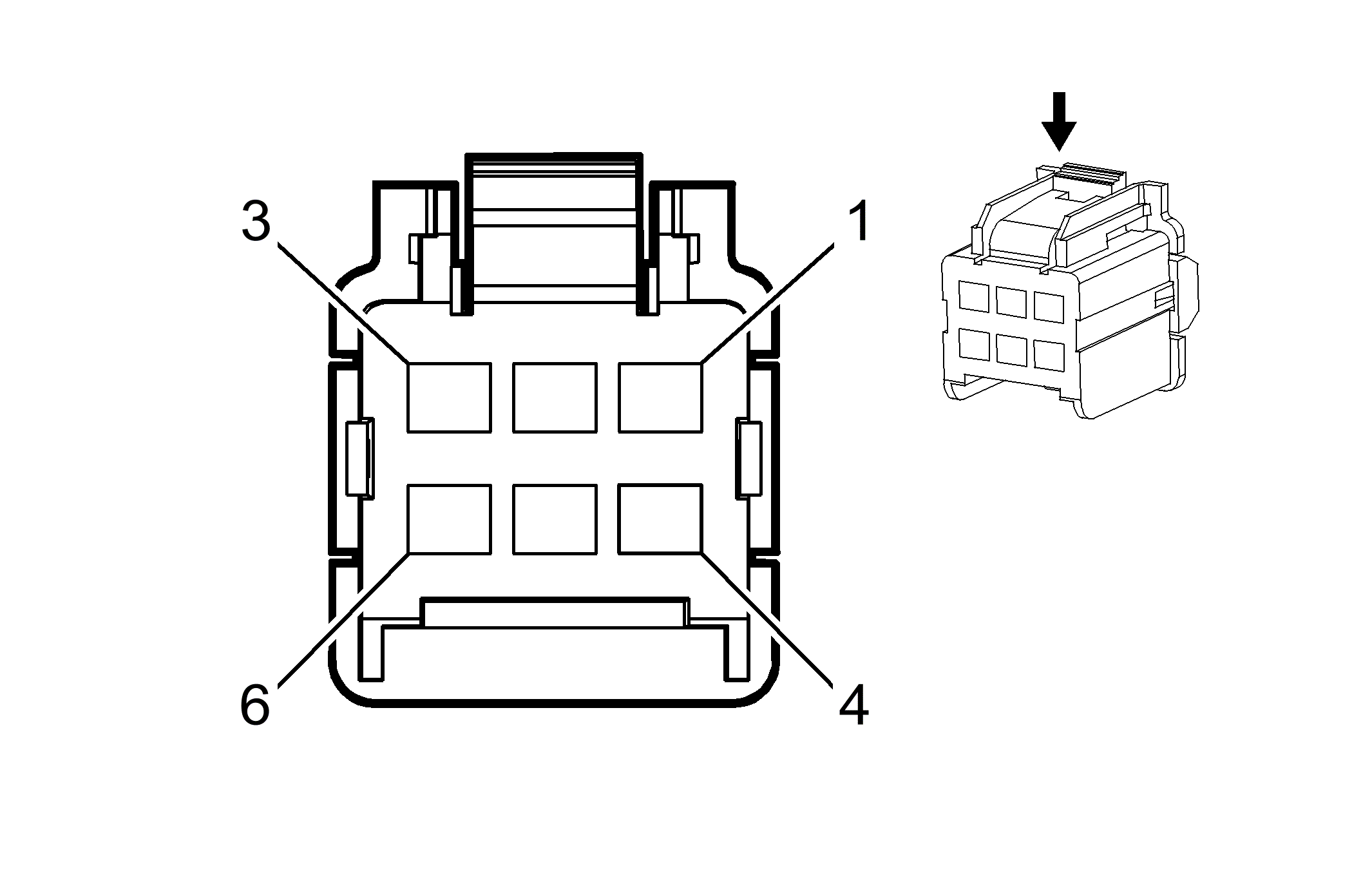

Fig 1: Liftgate Module (LGM) X2 (E61) Connector End View
GM2498533Courtesy of GENERAL MOTORS CORP.
Liftgate Module (LGM) X2 (E61)

Pin Wire Circuit Function
1 2 BN 5790 Liftgate Cinch Latch Motor Open Control
2 2 L-BU 5791 Liftgate Cinch Latch Motor Close Control
3 3 RD/BK 1242 Battery Positive Voltage
4 0.35 RD/WH 840 Battery Positive Voltage
5 - - Not Used
6 3 BK 1450 Ground
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 15477757
  • Service Connector: 13577622
  • Description: 6-Way F Receptacle 2.8 Series (BK)
Terminal Part Information
  • Pins: 1-3, 6
  • Terminated Lead: Pins 1, 2: 13575754
  • Terminated Lead: Pins 3, 6: 13575756
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 15304713/19
  • Core/Insulation Crimp: Pins 1, 2: 4/4
  • Core/Insulation Crimp: Pins 3, 6: 4/4
  • Pins: 4
  • Terminated Lead: 13575753
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: E/A
