Liftgate Close Switch (E61)

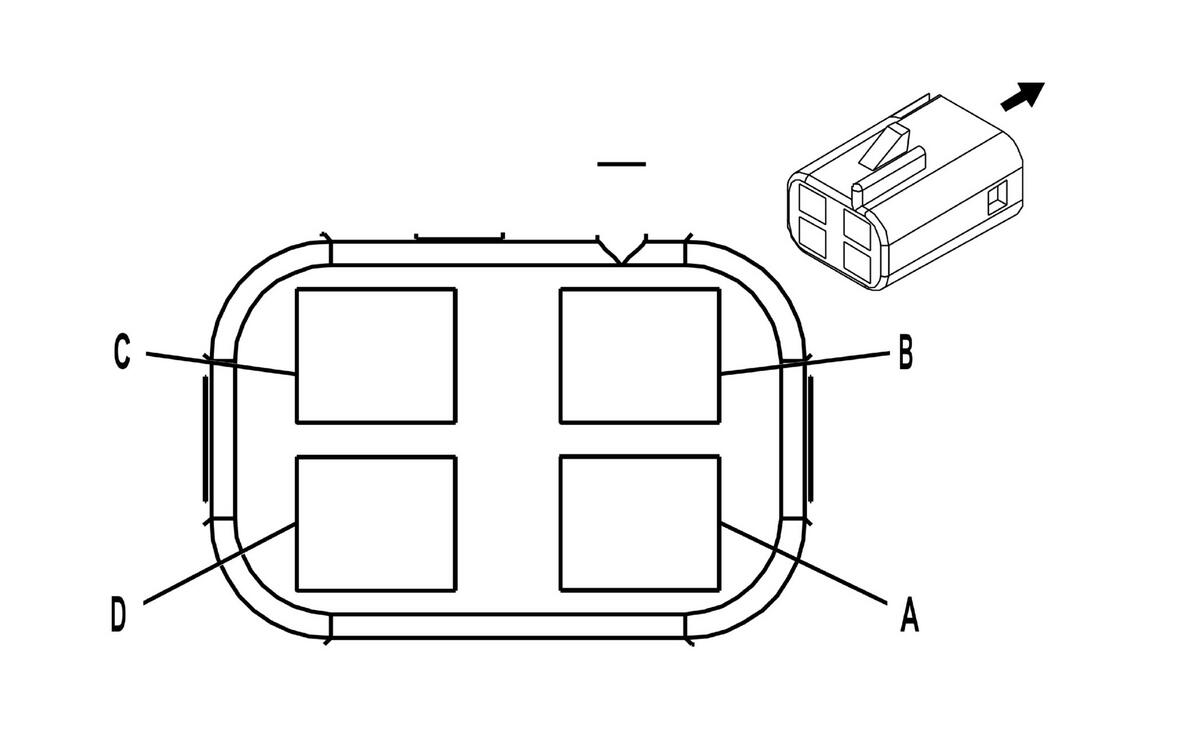

Fig 1: Liftgate Close Switch (E61) Connector End View
GM39660Courtesy of GENERAL MOTORS CORP.
Liftgate Close Switch (E61)

Pin Wire Circuit Function
A 0.35 PU/WH 5801 Low Reference
B-C - - Not Used
D 0.35 GY 5797 Rear Closure Handle Switch Open Signal
Connector Part Information
  • Harness Type: Liftgate
  • OEM Connector: 12047785
  • Service Connector: 12102900
  • Description: 4-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminated Lead: 13575464
  • Release Tool: J-38125-12A
  • Diagnostic Test Probe: J-35616-14 (GN)
  • Terminal/Tray: 15326030/5
  • Core/Insulation Crimp: E/C
