Inflatable Restraint Steering Wheel Module X1

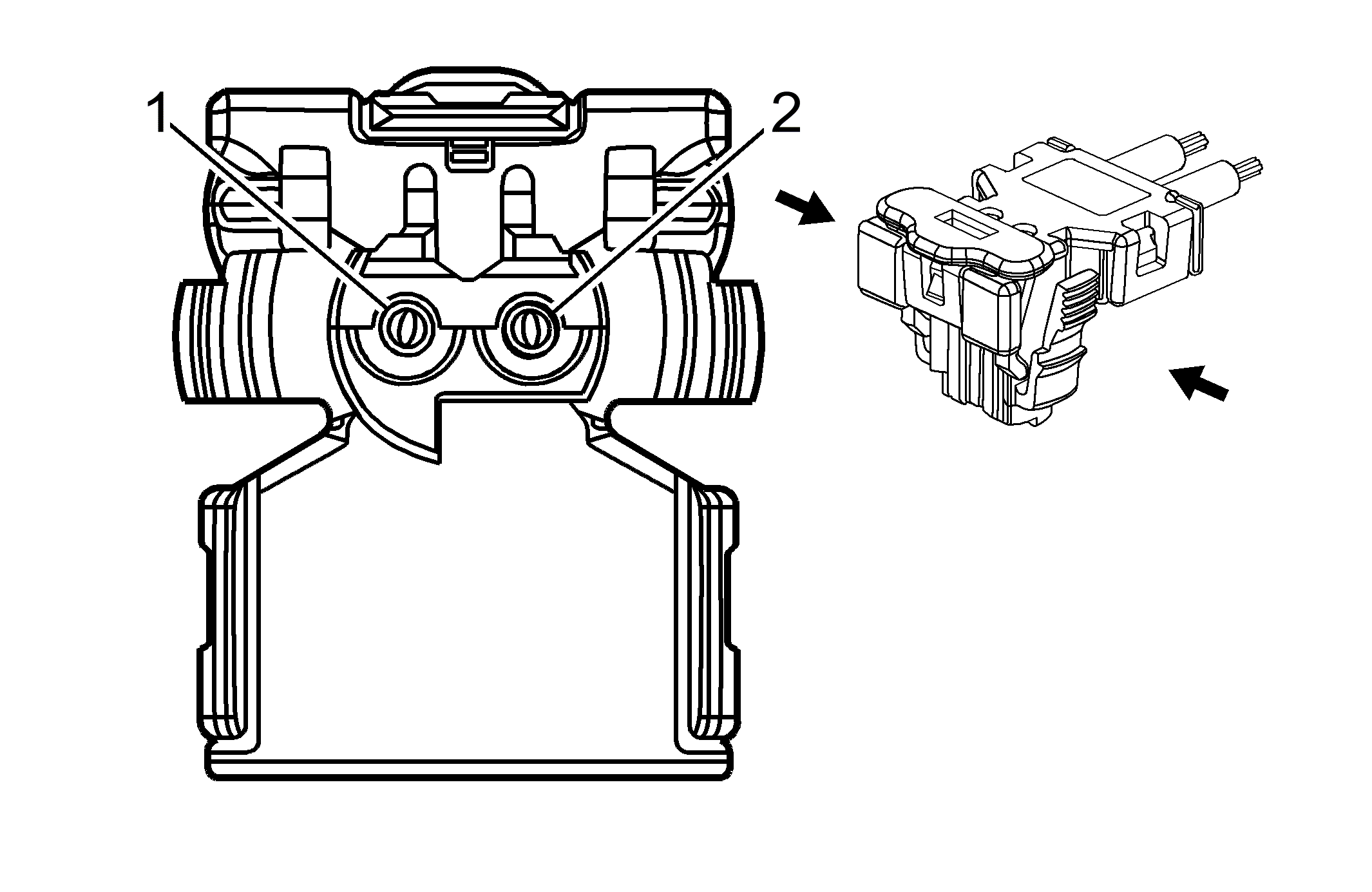

Courtesy of GENERAL MOTORS CORP. Inflatable Restraint Steering Wheel Module X1
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 TN |
3021 |
Steering Wheel Module- Stage 1- High Control |
| 2 |
0.5 BN |
3020 |
Steering Wheel Module- Stage 1- Low Control |
Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 54560236
- Service Connector: Service by Assembly- See Part Catalog
- Description: 2-Way F ABX-4 Code B (GY)
|
Terminal Part Information
- Terminated Lead: Service by Assembly- See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
