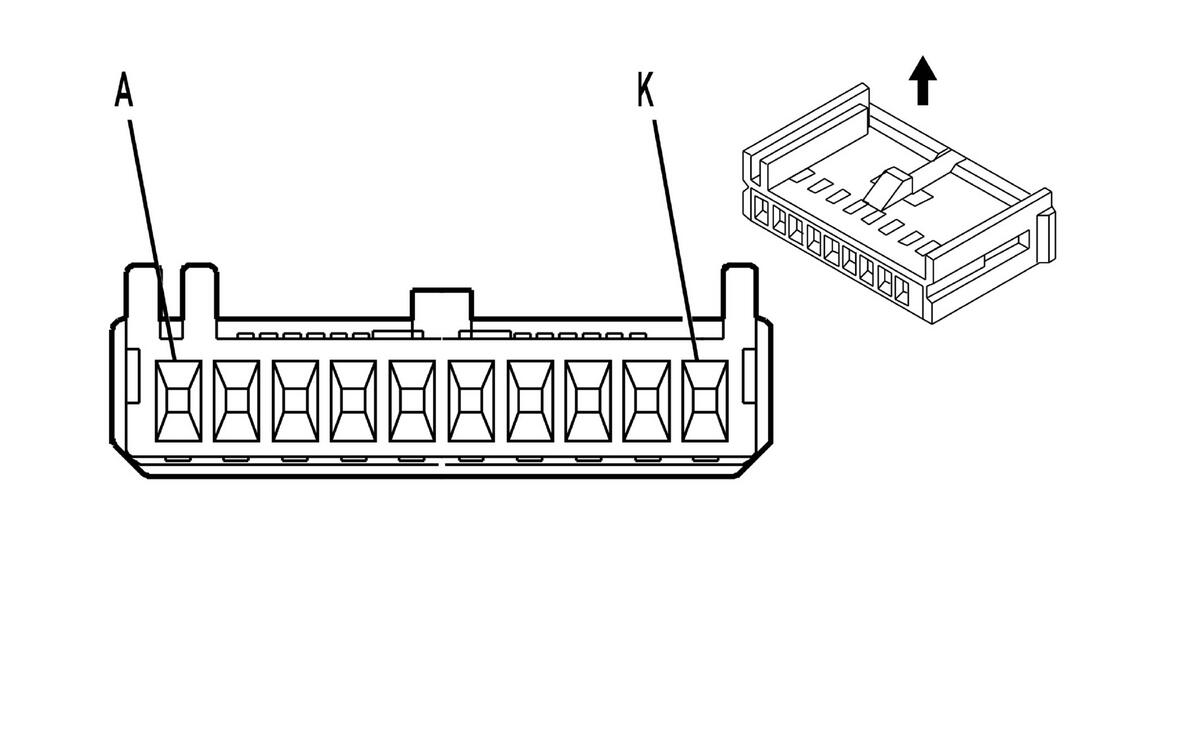

Inflatable Restraint Steering Wheel Module Coil X2
Courtesy of GENERAL MOTORS CORP. Inflatable Restraint Steering Wheel Module Coil X2
| Pin |
Wire |
Circuit |
Function |
| A |
0.35 GY |
1884 |
Cruise Control Switch Signal |
| B |
- |
- |
Not Used |
| C |
0.35 L-GN |
6818 |
Steering Wheel Resistor Ladder Signal 1 |
| D |
0.35 BN |
6136 |
Control |
| E |
0.35 PK |
1444 |
12-Volt Reference |
| F-G |
- |
- |
Not Used |
| H |
0.35 D-GN/WH |
7158 |
Cruise Control Indicator Dimming Signal |
| J |
0.35 TN |
28 |
Horn Relay Control |
| K |
0.35 BK |
1050 |
Ground |
Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 15393433
- Service Connector: 22710638
- Description: 10-Way F (BK)
|
Terminal Part Information
- Terminated Lead: Service by Harness - See Part Catalog
- Release Tool: 12180559-1
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: Service with Terminated Lead
- Core/Insulation Crimp: N/A
|
