Inflatable Restraint Side Impact Sensor (SIS) - Right Front

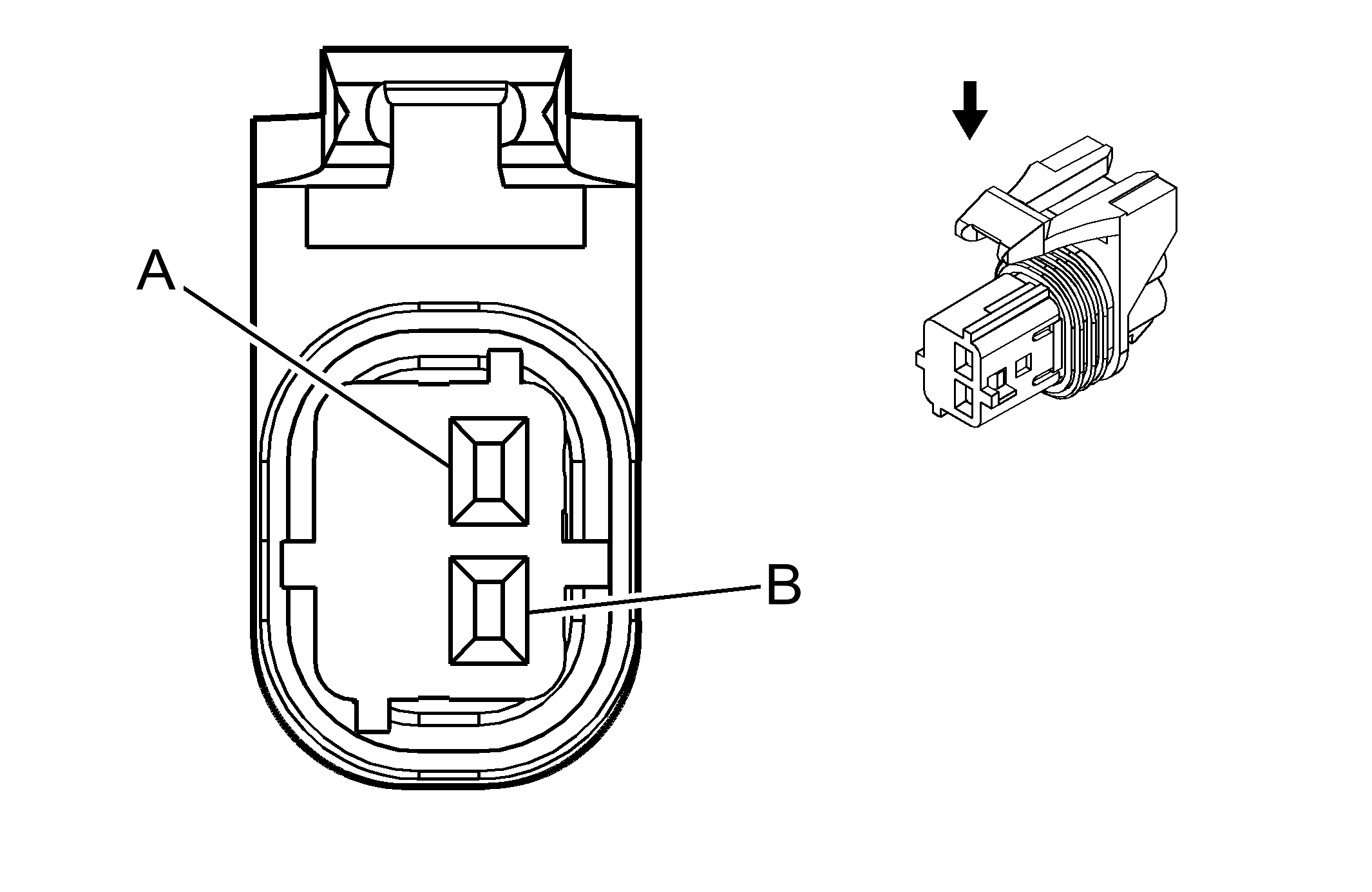

Courtesy of GENERAL MOTORS CORP. Inflatable Restraint Side Impact Sensor (SIS)- Right Front
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 WH/BK |
6629 |
Low Reference |
| B |
0.5 D-GN |
2134 |
Side Impact Sensing Module- Right Signal |
Connector Part Information
- Harness Type: Passenger Door
- OEM Connector: 15356723
- Service Connector: 15306439
- Description: 2-Way F GT 150 Series, Sealed (YE)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly- 15306439
- Release Tool: Not Available
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
