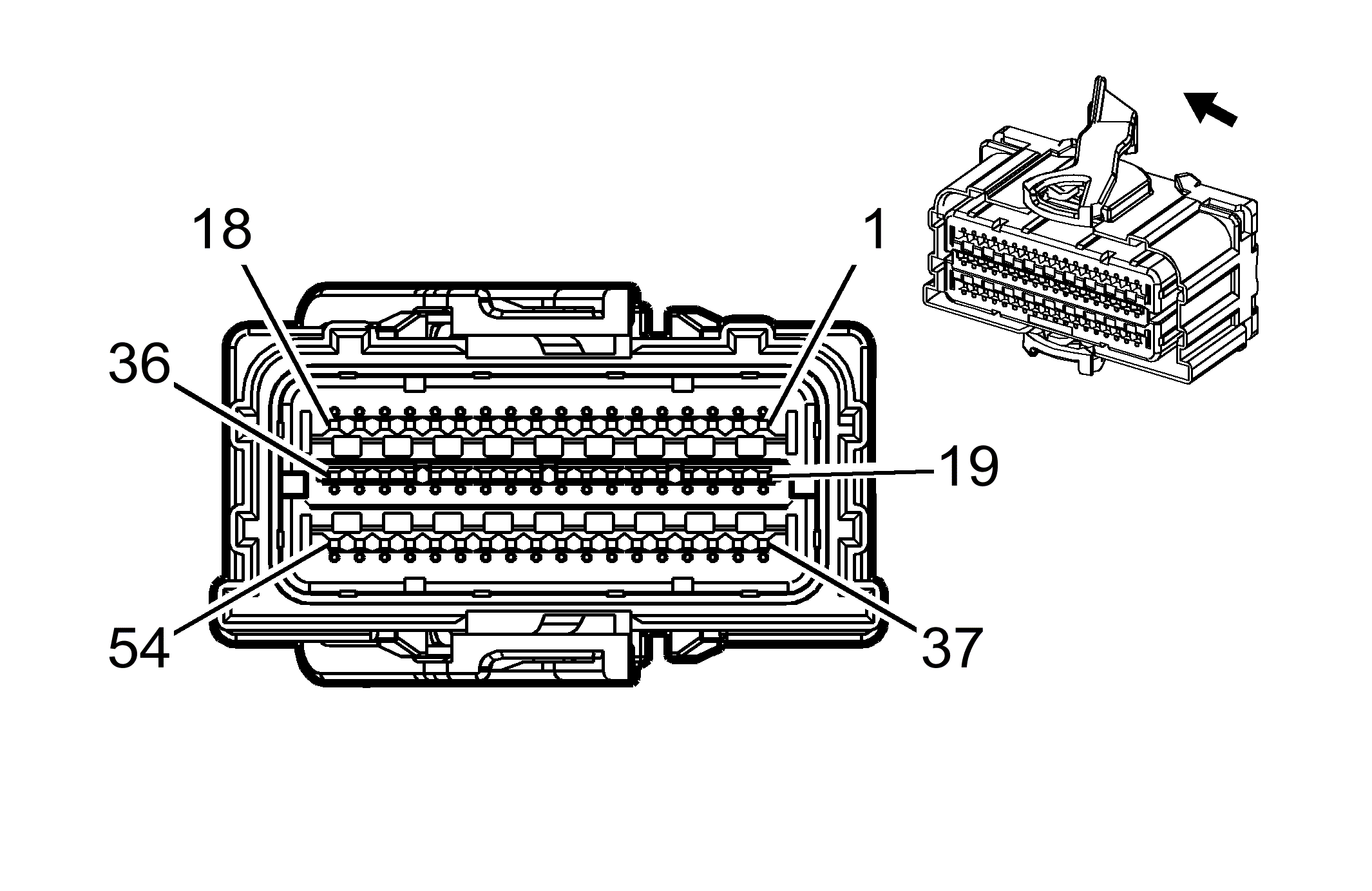

Inflatable Restraint Sensing and Diagnostic Module (SDM) X2
Courtesy of GENERAL MOTORS CORP. Inflatable Restraint Sensing and Diagnostic Module (SDM) X2
| Pin |
Wire |
Circuit |
Function |
| 1-12 |
- |
- |
Not Available |
| 13 |
0.5 L-BU |
3068 |
Left Front Side Impact Module High Control (AS3) |
| 14 |
0.5 L-GN/BK |
3069 |
Left ront Side Impact Module Low Control (AS3) |
| 15 |
0.5 TN/BK |
3067 |
Right Front Side Impact Module Low Control (AS3) |
| 16 |
0.5 PU |
3066 |
Right Front Side Impact Module High Control (AS3) |
| 17 |
0.5 PU/WH |
5019 |
Roof Rail Module - Left - High Control |
| 18 |
0.5 PK |
5020 |
Roof Rail Module - Left - Low Control |
| 19 |
0.5 WH |
2132 |
Side Impact Sensing Module - Left - Signal |
| 20 |
0.5 PU/WH |
6628 |
Low Reference |
| 21 |
0.5 WH/BK |
6629 |
Low Reference |
| 22 |
0.5 D-GN |
2134 |
Side Impact Sensing Module - Right - Signal |
| 23 |
0.5 YE |
354 |
Discriminating Sensor - Signal |
| 24 |
0.5 TN/OG |
5045 |
Low Reference |
| 25 |
0.5 GY |
5600 |
Low Reference |
| 26 |
0.5 D-GN |
1409 |
Discriminating Sensor - Right - Signal |
| 27 |
0.5 D-GN/WH |
6620 |
Left Rear Side Impact Sensing Module Signal |
| 28 |
0.5 GY/BK |
6621 |
Low Reference |
| 29 |
0.5 L-GN/WH |
6625 |
Low Reference |
| 30 |
0.5 L-BU/BK |
6624 |
Right Rear Side Impact Sensing Module Signal |
| 31-36 |
- |
- |
Not Available |
| 37 |
0.5 TN/WH |
3477 |
Seat Belt Pretensioner - Left - High Control |
| 38 |
0.5 PK/BK |
3478 |
Seat Belt Pretensioner - Left - Low Control |
| 39 |
0.5 PK |
3476 |
Seat Belt Pretensioner - Right - Low Control |
| 40 |
0.5 L-GN |
3475 |
Seat Belt Pretensioner - Right - High Control |
| 41 |
0.35 TN/WH |
238 |
Seat Belt Switch - Driver Seat - Signal |
| 42 |
0.35 L-GN |
5055 |
Seat Position Sensor - Left - Signal |
| 43 |
0.35 D-BU |
1363 |
Low Reference |
| 44 |
0.35 L-BU |
1361 |
Low Reference |
| 45 |
0.35 OG |
1362 |
Seat Belt Switch - Passenger Seat - Signal |
| 46 |
0.35 L-BU |
5056 |
Seat Position Sensor - Right - Signal |
| 47-52 |
- |
- |
Not Available |
| 53 |
0.5 YE/BK |
5021 |
Roof Rail Module - Right - High Control |
| 54 |
0.5 WH/BK |
5022 |
Roof Rail Module - Right - Low Control |
Connector Part Information
- Harness Type: Body
- OEM Connector: 13790971 (X88 or Z88 with HP2)
- OEM Connector: 13789037 (without HP2 or Z75 with HP2)
- Service Connector: 13580845
- Description: 30-Way F Receptacle 0.64 Series, Sealed (YE)
|
Terminal Part Information
- Terminated Lead: 13579946
- Release Tool: Pending
- Diagnostic Test Probe: Pending
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
