Inflatable Restraint Seat Position Sensor - Driver

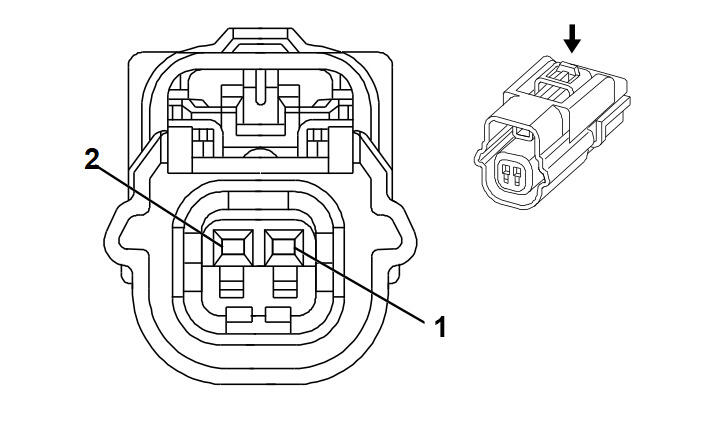

Courtesy of GENERAL MOTORS CORP. Inflatable Restraint Seat Position Sensor- Driver
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 PK |
5057 |
Low Reference |
| 2 |
0.35 L-GN |
5055 |
Driver Seat Position Switch Signal |
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 54390240
- Service Connector: 13577629
- Description: 2-Way F Kaizen 0.64 Series, Sealed (L-GY)
|
Terminal Part Information
- Terminated Lead: 13575845
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: Not Available
- Core/Insulation Crimp: P/P
|
