Inflatable Restraint Passenger Presence System (PPS) Module (without HP2 or Z75 with HP2)

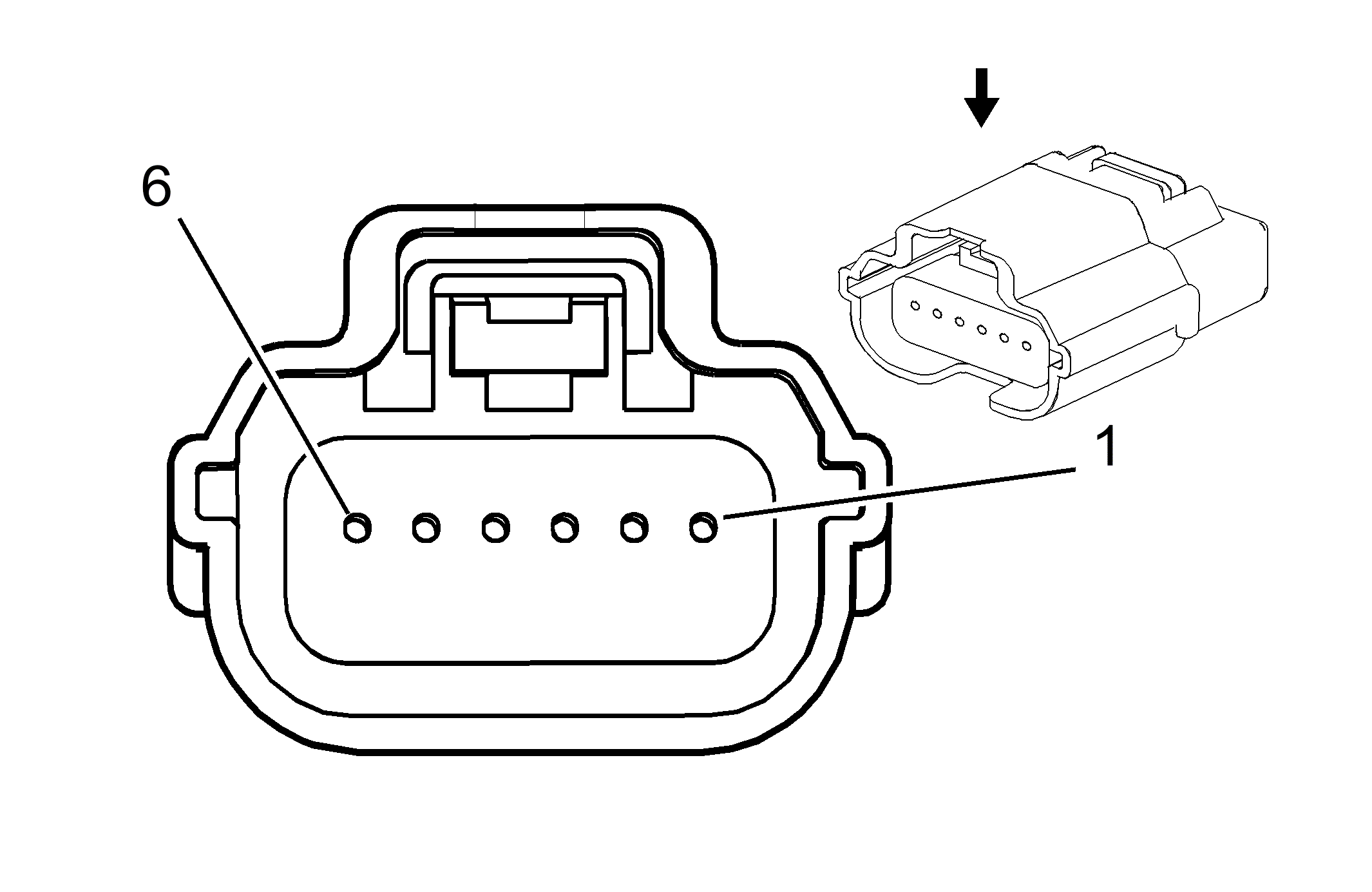

Fig 1: Inflatable Restraint Passenger Presence System (PPS) Module (without HP2 or Z75 with HP2) Connector End View
GM1708509Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Passenger Presence System (PPS) Module (without HP2 or Z75 with HP2)

Pin Wire Circuit Function
1 0.5 RD/WH 4440 Battery Positive Voltage
2 0.35 D-GN 5060 Low Speed GMLAN Serial Data
3 - - Not Used
4 0.5 BK/WH 2751 Low Reference
5 0.35 D-GN 5612 Passenger Seat Belt Tension Sensor Voltage Reference
6 0.35 D-GN/WH 5611 Passenger Seat Belt Tension Sensor Signal
Connector Part Information
  • Harness Type: Passenger Seat
  • OEM Connector: 31404-6110
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 6-Way F M64 Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: 13575845
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: P/P
