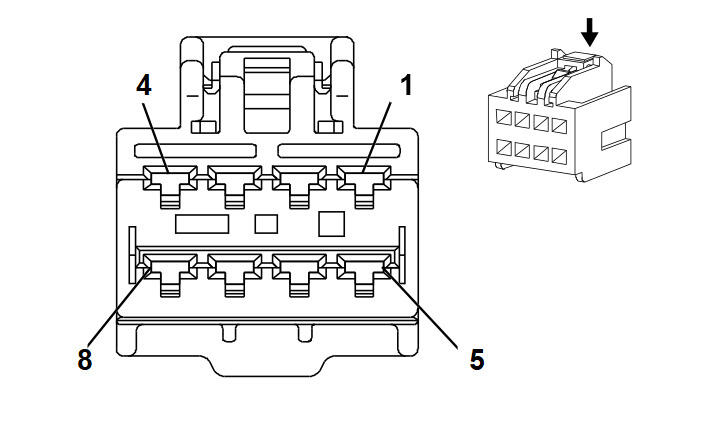

Heated Seat Control Module X2 (KA1 or W03)
Courtesy of GENERAL MOTORS CORP. Heated Seat Control Module X2 (KA1 or W03)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 RD/WH |
1140 |
Battery Positive Voltage |
| 2 |
3 BK |
1150 |
Ground |
| 3-4 |
- |
- |
Not Used |
| 5 |
0.35 PK |
2426 |
Low reference |
| 6 |
0.35 YE |
2080 |
Low reference |
| 7 |
0.35 TN |
2482 |
Low reference |
| 8 |
0.35 PK |
2435 |
Low reference |
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 6098-4713
- Service Connector: 88988652
- Description: 8-Way F 2.8 Series (BK)
|
Terminal Part Information
- Pins: 1
- Terminal/Tray: 8100-4444/22
- Core/Insulation Crimp: 2/A
- Release Tool/Test Probe: 15315247/J-35616-35 (VT)
- Pins: 2
- Terminal/Tray: 8100-4445/22
- Core/Insulation Crimp: 1/F
- Release Tool/Test Probe: 15315247/J-35616-35 (VT)
- Pins: 5-8
- Terminal/Tray: 8100-4443/22
- Core/Insulation Crimp: 1/E
- Release Tool/Test Probe: 15315247/J-35616-35 (VT)
|
