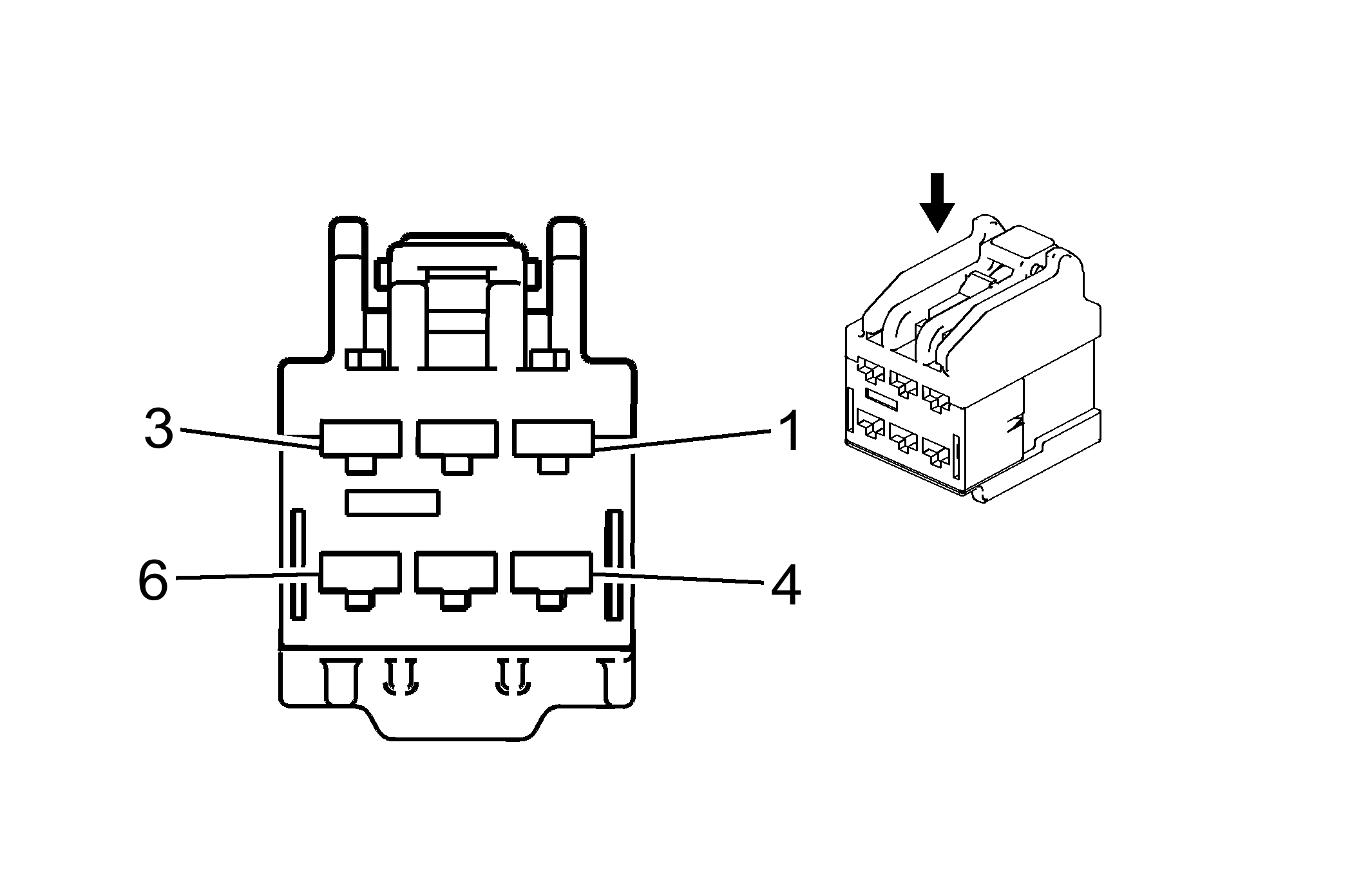

Heated Seat Control Module X1 (KA1 or W03)
Courtesy of GENERAL MOTORS CORP. Heated Seat Control Module X1 (KA1 or W03)
| Pin |
Wire |
Circuit |
Function |
| 1 |
1 PU |
2424 |
Driver Heated Seat Back Element Control |
| 2 |
1 PK |
2480 |
Front Passenger Heated Seat Cushion Element Control |
| 3 |
1 D-BU |
2479 |
Heated Seat Element Control |
| 4 |
1 L-BU |
2433 |
Front Passenger Heated Seat Back Element Control |
| 5 |
1 L-GN |
2078 |
Driver Heated Seat Cushion Element Control |
| 6 |
1 PK |
2077 |
Heated Seat Cushion Element Control |
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 6098-4606
- Service Connector: Service by Harness- See Part Catalog
- Description: 6-Way F (BN)
|
Terminal Part Information
- Terminal/Tray: 8100-4444/22
- Core/Insulation Crimp: 2/A
- Release Tool/Test Probe: 15315247/J-35616-35 (VT)
|
