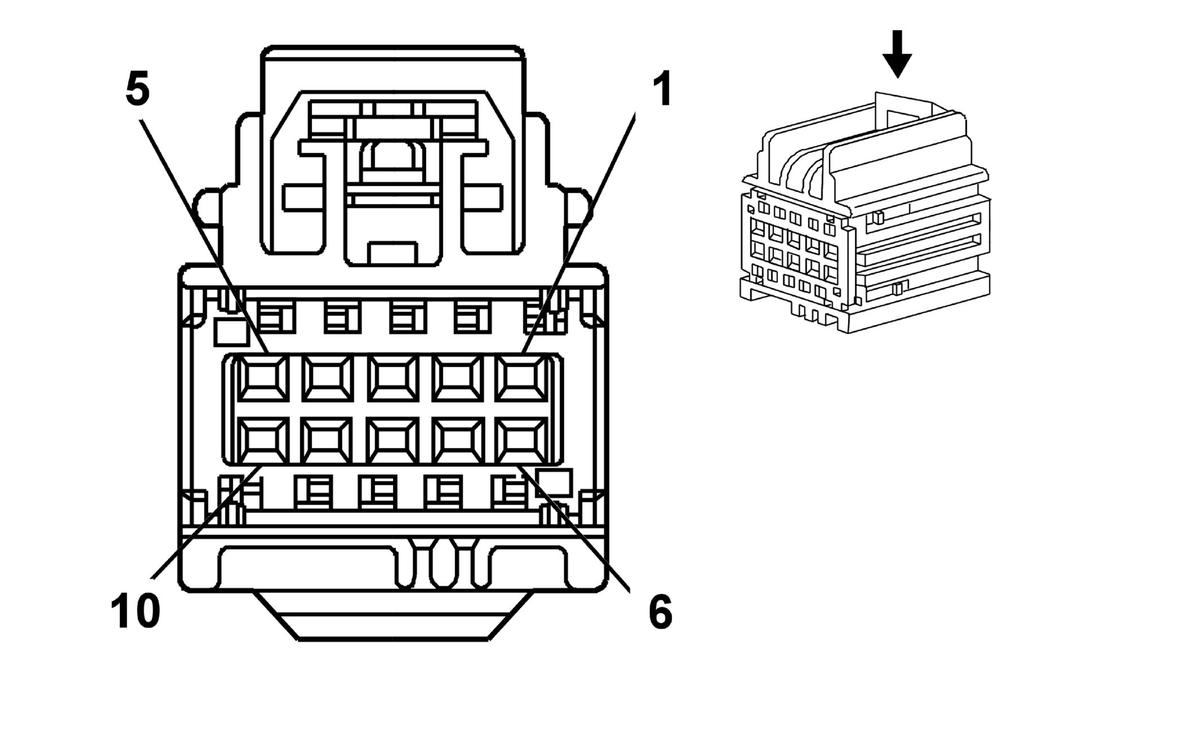

Heated Seat Control Module - Rear X3 (KA6)
Courtesy of GENERAL MOTORS CORP. Heated Seat Control Module - Rear X3 (KA6)
| Pin |
Wire |
Circuit |
Function |
| 1-5 |
- |
- |
Not Used |
| 6 |
0.35 D-GN |
5060 |
Low Speed GMLAN Serial Data |
| 7-10 |
- |
- |
Not Used |
Connector Part Information
- Harness Type: Left Rear Seat
- OEM Connector: 7283-9040-30
- Service Connector: 15127042
- Description: 10-Way F (BK)
|
Terminal Part Information
- Terminal/Tray: Service by Harness - See Part Catalog
- Core/Insulation Crimp: Not Available
- Release Tool/Test Probe: Not Available
|
