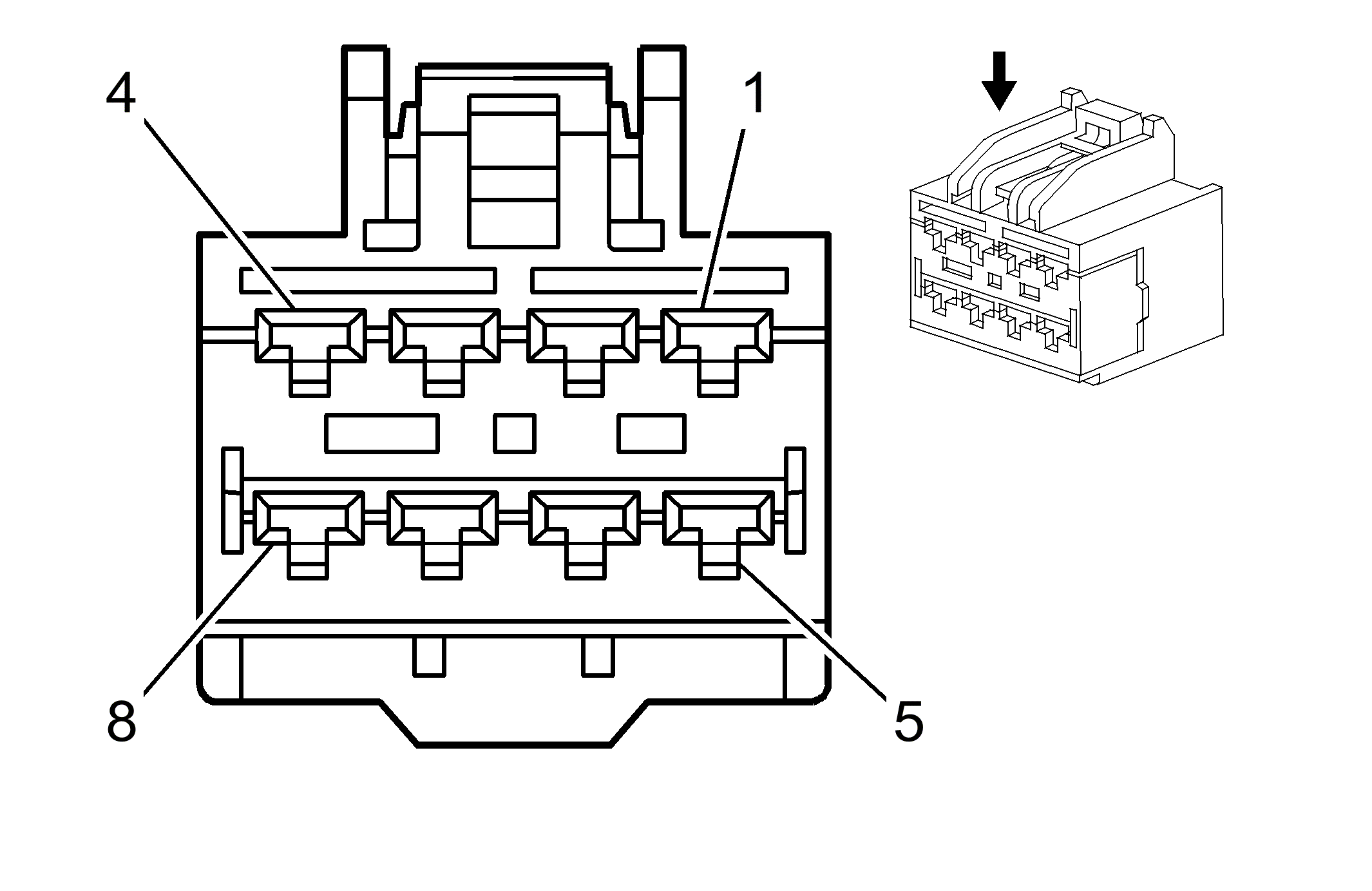

Heated Seat Control Module - Rear X2 (KA6)
Courtesy of GENERAL MOTORS CORP. Heated Seat Control Module - Rear X2 (KA6)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 RD/WH |
4840 |
Battery Positive Voltage |
| 2 |
0.8 BK |
1150 |
Ground |
| 3 |
- |
- |
Not Used |
| 4 |
0.8 BK |
1150 |
Ground |
| 5 |
- |
- |
Not Used |
| 6 |
0.35 D-BU |
2298 |
Low Reference |
| 7 |
- |
- |
Not Used |
| 8 |
0.35 WH/BK |
2301 |
Low Reference |
Connector Part Information
- Harness Type: Left Rear Seat
- OEM Connector: 6098-4713
- Service Connector: 88988652
- Description: 8-Way F (BK)
|
Terminal Part Information
- Terminal/Tray: Service by Harness - See Part Catalog
- Core/Insulation Crimp: Not Available
- Release Tool/Test Probe: Not Available
|
