HVAC Control Module X4 (C69)

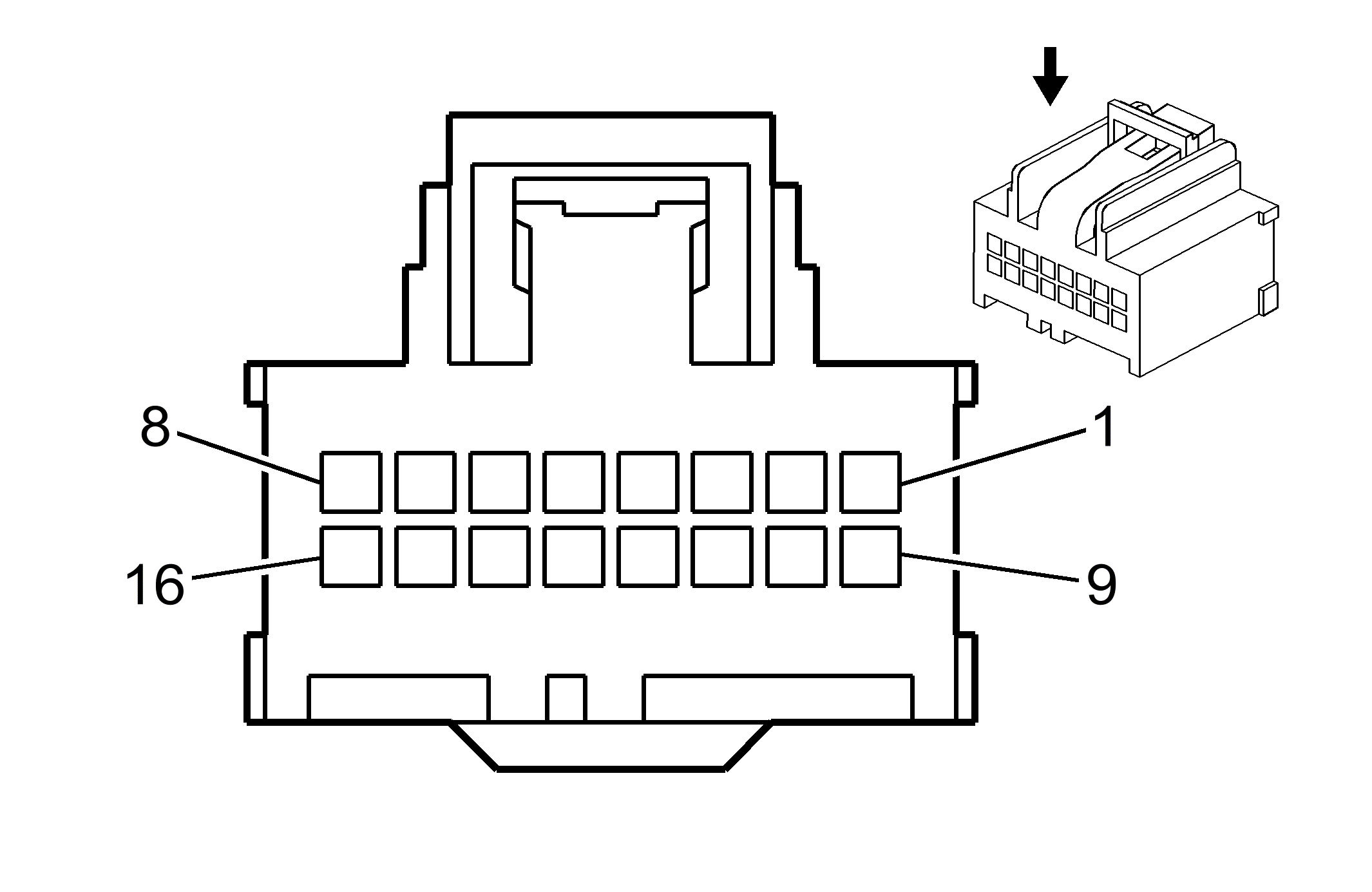

Fig 1: HVAC Control Module X4 (C69) Connector End View
GM1715225Courtesy of GENERAL MOTORS CORP.
HVAC Control Module X4 (C69)

Pin Wire Circuit Function
1 - - Not Used
2 0.35 GY 596 5-Volt Reference
3 0.35 OG 2215 Auxiliary Mode Door Control
4 0.35 GY 2614 Auxiliary Air Temperature Door Control
5 0.35 GY/BK 1798 Low Reference (CJ3)
6 0.35 GY/BK 1798 Low Reference (CJ2)
7 0.35 BN 5516 Inside Air Temperature Sensor Assembly Control (CJ2)
8-9 - - Not Used
10 0.35 D-GN 2211 Auxiliary Blower Motor Speed Control
11-16 - - Not Used
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 15483874
  • Service Connector: 21997401
  • Description: 16-Way F Kaizen 0.64 Series (GN)
Terminal Part Information
  • Terminated Lead: 13575867
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: SAIT-A03T-M064/14
  • Core/Insulation Crimp: P/P
