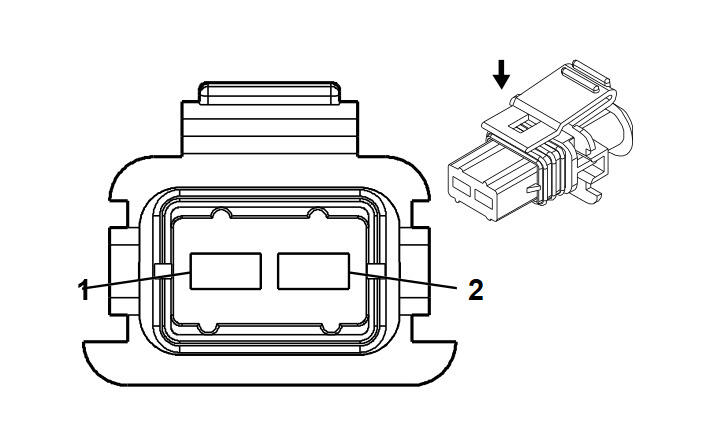

Generator X1 (except HP2)
Courtesy of GENERAL MOTORS CORP. Generator X1 (except HP2)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 BN |
25 |
Charge Indicator Control/Charge Indicator Signal |
| 2 |
0.5 GY |
23 |
Generator Field Duty Cycle Signal |
Connector Part Information
- Harness Type: Engine
- OEM Connector: 12186308
- Service Connector: 89046837
- Description: 2-Way F Junior Power Timer Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly- 89046837
- Release Tool: J-38125-36
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 4-964286-1/16
- Core/Insulation Crimp: E/1
|
