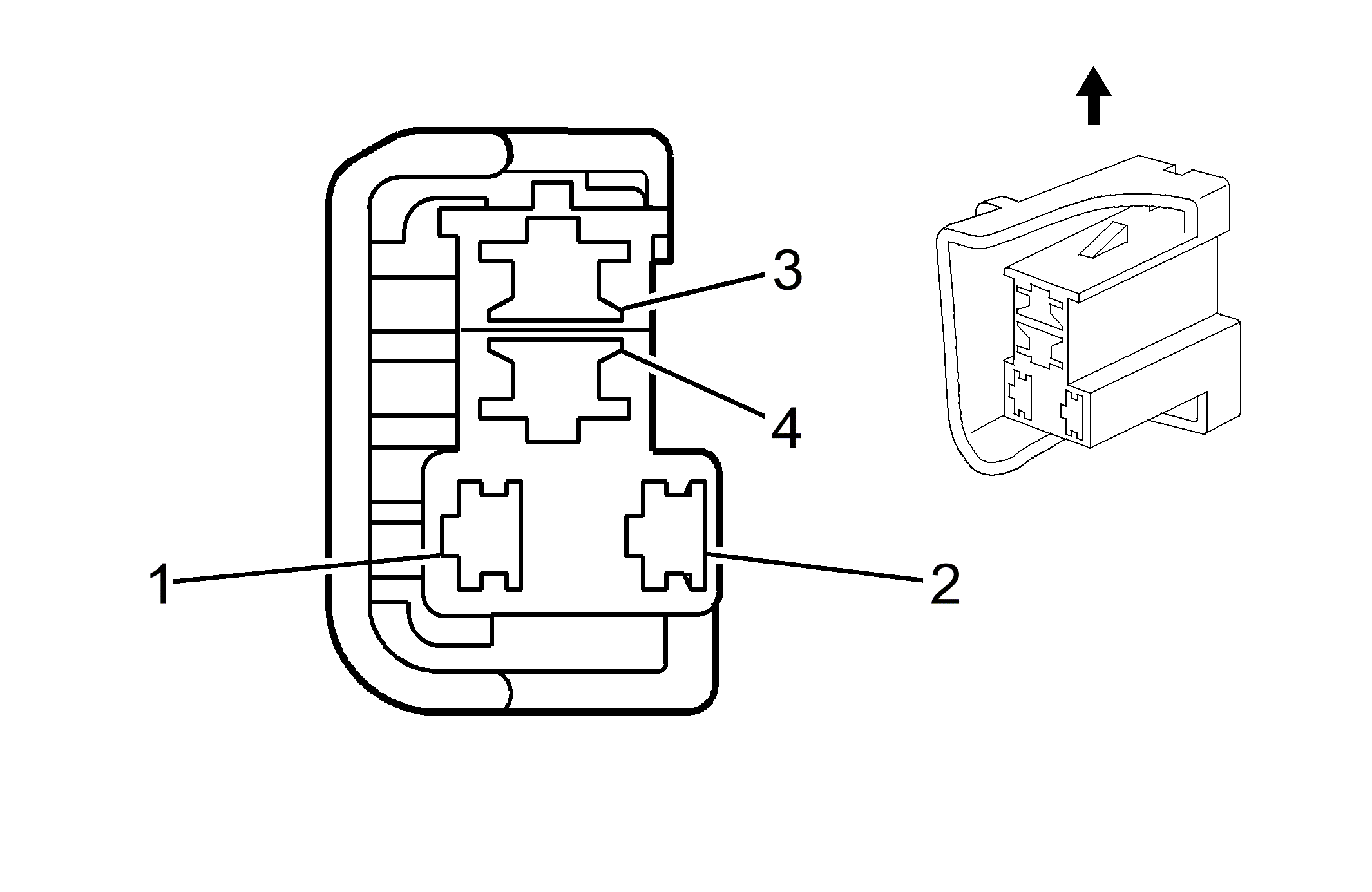

Generator Battery Vent Fan Relay (HP2)
Courtesy of GENERAL MOTORS CORP. Generator Battery Vent Fan Relay (HP2)
| Pin |
Wire |
Circuit |
Function |
| 1 |
WH/GN |
- |
Relay Control |
| 2 |
RD/WH |
- |
Battery Positive Voltage |
| 3 |
RD/WH |
- |
Battery Positive Voltage |
| 4 |
PK/D-BU |
- |
Fan Motor Power Feed |
Connector Part Information
- Harness Type: Drive Motor Generator Battery Control
- OEM Connector: Service by Harness - See Part Catalog
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F (WH)
|
Terminal Part Information
- Terminal/Tray: Service by Harness - See Part Catalog
- Core/Insulation Crimp: Not Available
- Release Tool/Test Probe: Not Available
|
