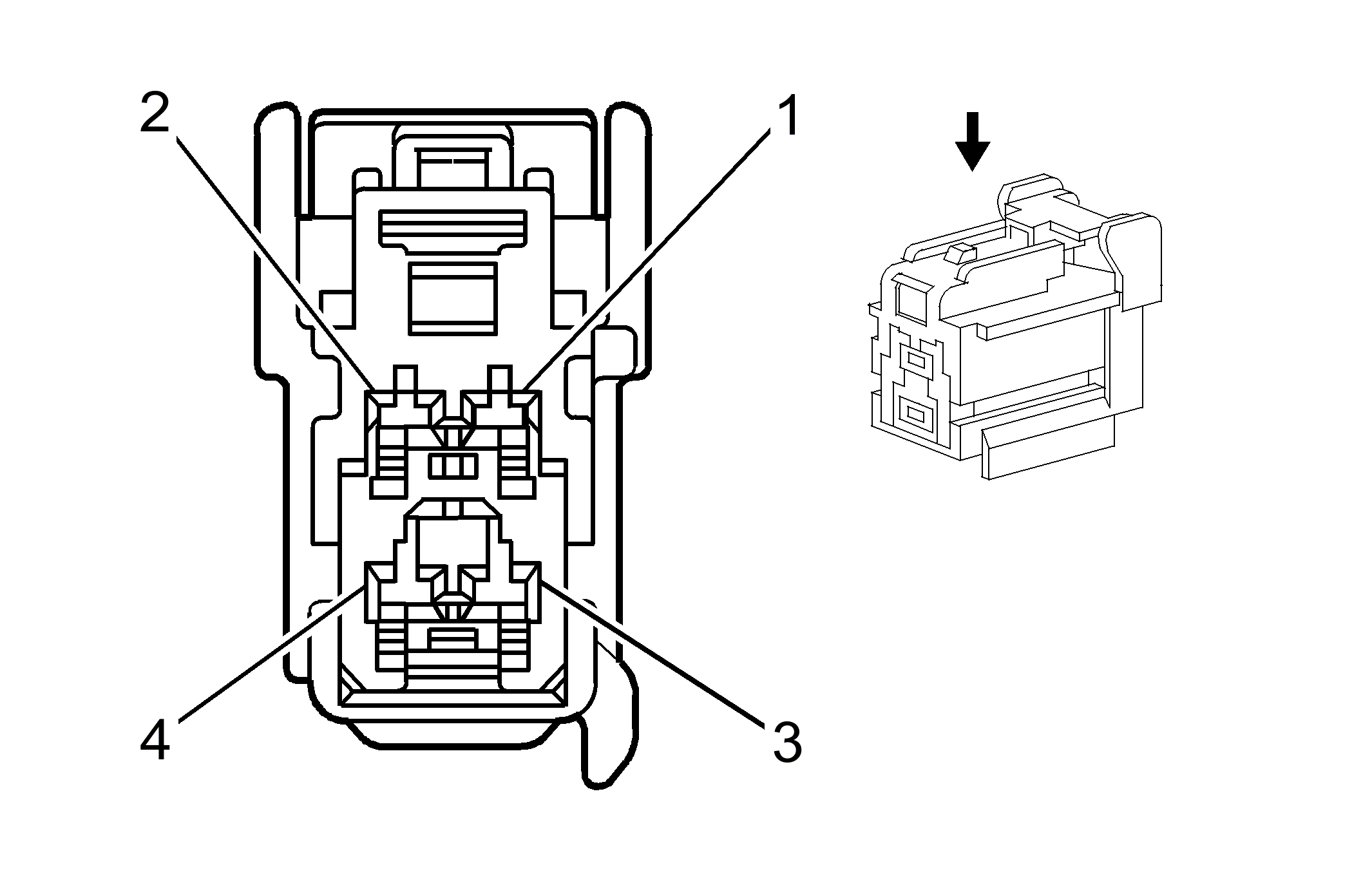

Generator Battery Vent Fan (HP2)
Courtesy of GENERAL MOTORS CORP. Generator Battery Vent Fan (HP2)
| Pin |
Wire |
Circuit |
Function |
| 1 |
L-GN |
- |
Not Used |
| 2 |
PK/D-BU |
- |
Fan Motor Power Feed |
| 3 |
BK/YE |
- |
Ground |
| 4 |
L-GN/BK |
- |
5-Volt Reference |
Connector Part Information
- Harness Type: Drive Motor Generator Battery Control
- OEM Connector: 7283-5531-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F YESC/USCAR Class III (D-GY)
|
Terminal Part Information
- Terminal/Tray: Service by Harness - See Part Catalog
- Core/Insulation Crimp: Not Available
- Release Tool/Test Probe: Not Available
|
