Fuel Tank Pressure (FTP) Sensor

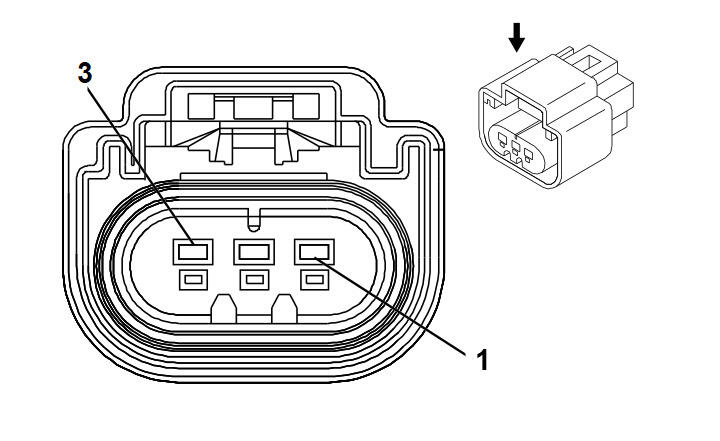

Courtesy of GENERAL MOTORS CORP. Fuel Tank Pressure (FTP) Sensor
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 D-GN |
890 |
Fuel Tank Pressure Sensor Signal |
| 2 |
0.5 TN/BK |
6049 |
Low Reference |
| 3 |
0.5 GY |
2709 |
5-Volt Reference |
Connector Part Information
- Harness Type: Chassis
- OEM Connector: 13511996
- Service Connector: 19149288
- Description: 3-Way F GT 150 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13575354
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 12191819/8
- Core/Insulation Crimp: E/1
|
