Windshield Wiper Motor Replacement

WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

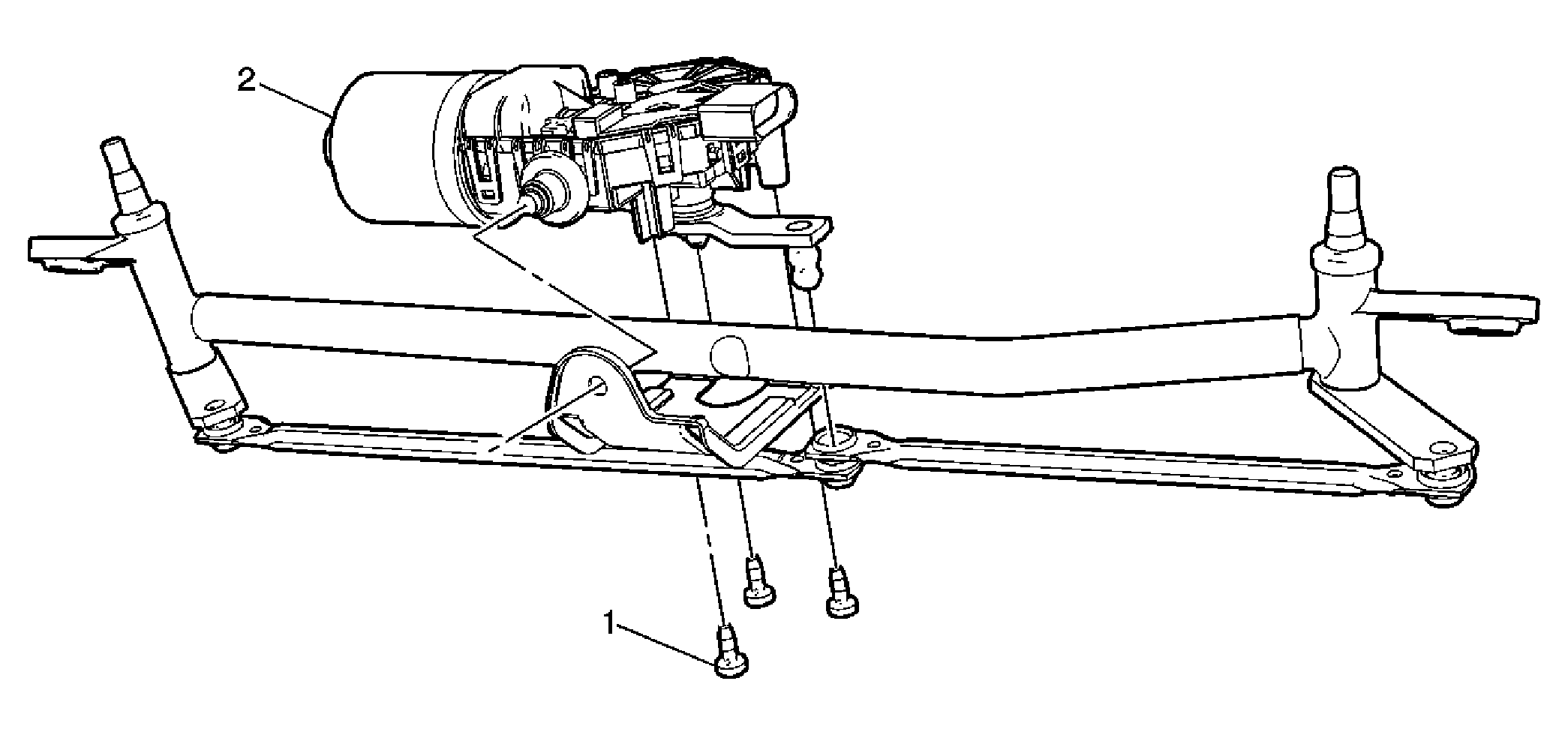

Fig 1: Identifying Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the windshield wiper transmission assembly. Refer to Windshield Wiper Transmission Replacement .
1	Windshield Wiper Motor Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 8.5 N.m (75 lb in)
2	Wiper Motor Kit Procedure Install the motor to the transmission. Loosely attach the crank arm to the motor. Using the J 39529 Wiper Linkage Installer or equivalent, attach the first transmission arm to the crank arm. See Special Tools . Align both the crank arm and the first transmission arm so that the arms are in a straight line. Install the crank arm nut. Tighten: 19.5 N.m (14 lb ft) Using the J 39529 Wiper Linkage Installer or equivalent, attach the second transmission arm to the crank arm. See Special Tools . Special Tools: J 39529: Wiper Linkage Installer

Callout

Component Name

Preliminary Procedure:
Remove the windshield wiper transmission assembly. Refer to Windshield Wiper Transmission Replacement .

Windshield Wiper Motor Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 8.5 N.m (75 lb in)

Wiper Motor Kit

Procedure

Install the motor to the transmission.
Loosely attach the crank arm to the motor.
Using the J 39529 Wiper Linkage Installer or equivalent, attach the first transmission arm to the crank arm. See Special Tools .
Align both the crank arm and the first transmission arm so that the arms are in a straight line.
Install the crank arm nut.
Tighten: 19.5 N.m (14 lb ft)
Using the J 39529 Wiper Linkage Installer or equivalent, attach the second transmission arm to the crank arm. See Special Tools .

Special Tools:
J 39529: Wiper Linkage Installer
