Reading Lamp Replacement
WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

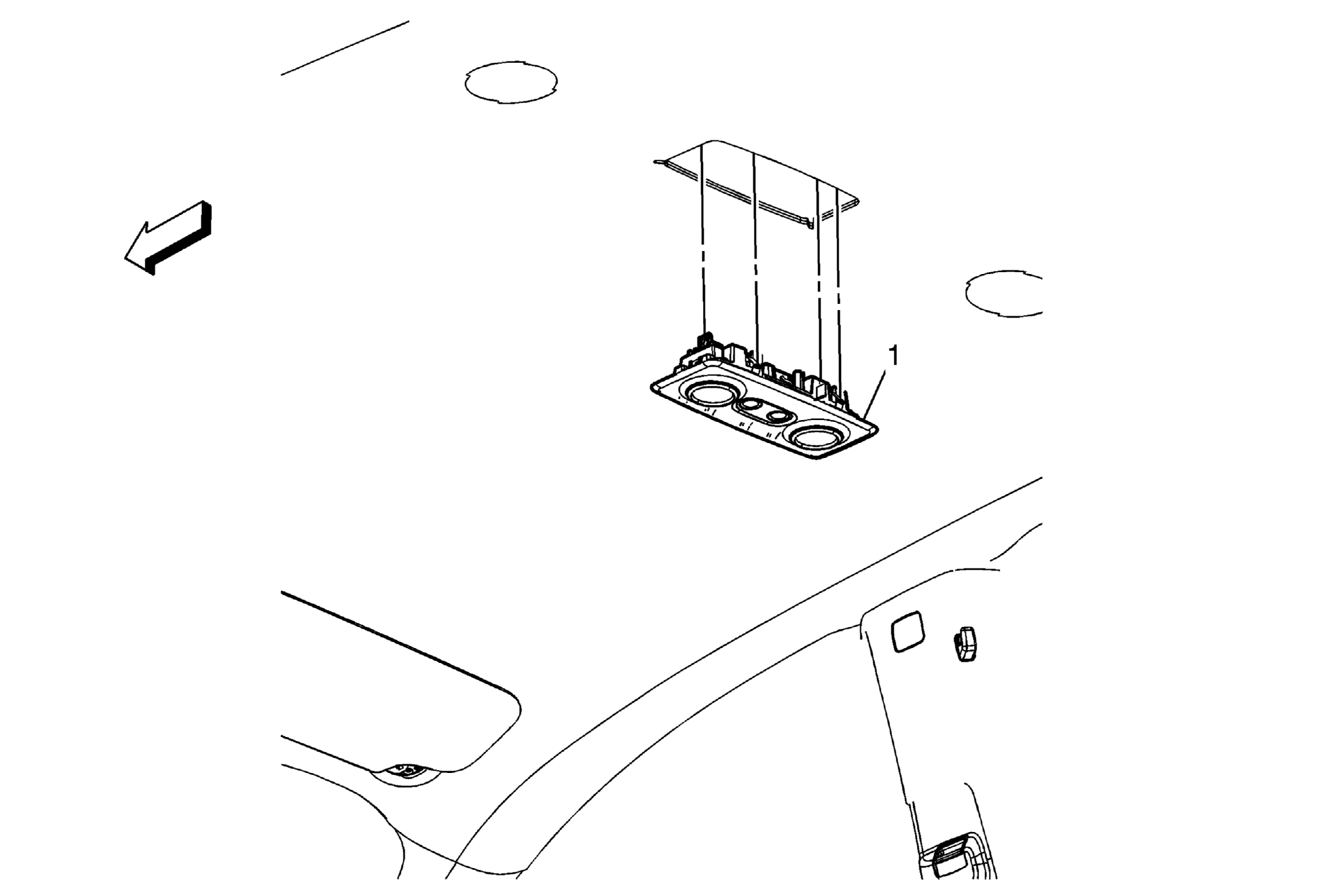

| Callout |
Component Name |
| 1 |
Reading Lamp Assembly Procedure
- Carefully use a plastic flat bladed tool, and release the clips retaining the reading lamp assembly to the headliner.
- Grasp the reading lamp assembly and pull downward to disengage the retainers securing the reading lamp assembly to the vehicle.
- Disconnect the electrical connectors.
|
