Front Side Door Lock Striker Replacement
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

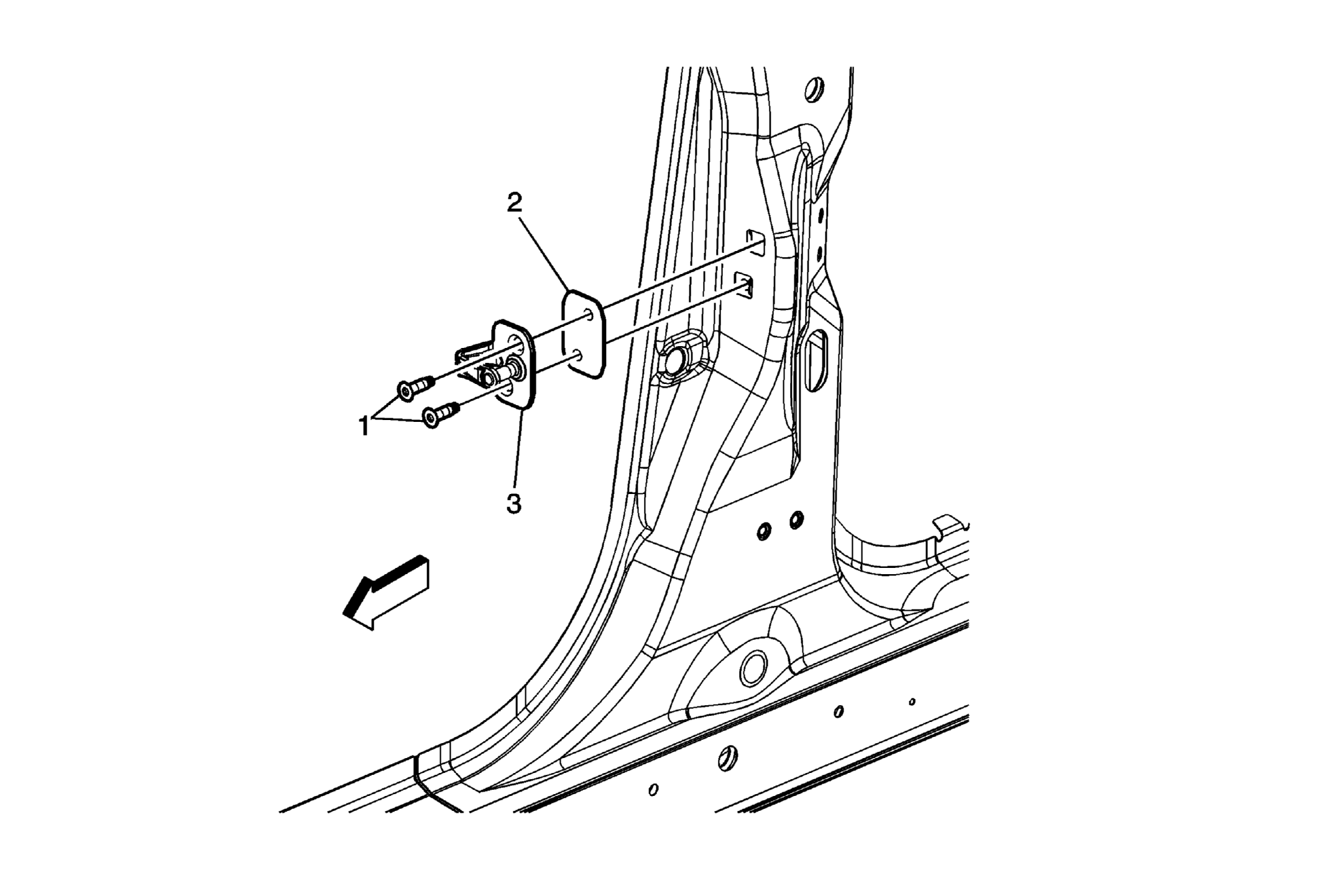

| Callout | Component Name |
|---|---|
| 1 | Front Side Door Lock Striker Bolt (Qty: 2)
WARNING:
In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS.
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) TIP: Remove the rear side door lock striker cover to expose the screws |
| 2 | Front Side Door Lock Striker Assembly TIP: Ensure proper alignment after installation. Refer to Front Side Door Lock Striker Adjustment . |
| 3 | Front Side Door Lock Striker Spacer |
