Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Brake Hose Fitting Bolt
    GM2216181Courtesy of GENERAL MOTORS CORP.
    NOTE: Install new brake hose fitting gaskets.
  1. Assemble the brake hose fitting bolt (1) with 2 new brake hose fitting gaskets (2) to the brake hose fitting (3).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the brake hose assembly to the brake caliper and tighten the brake hose fitting bolt to 40 N.m (30 lb ft).

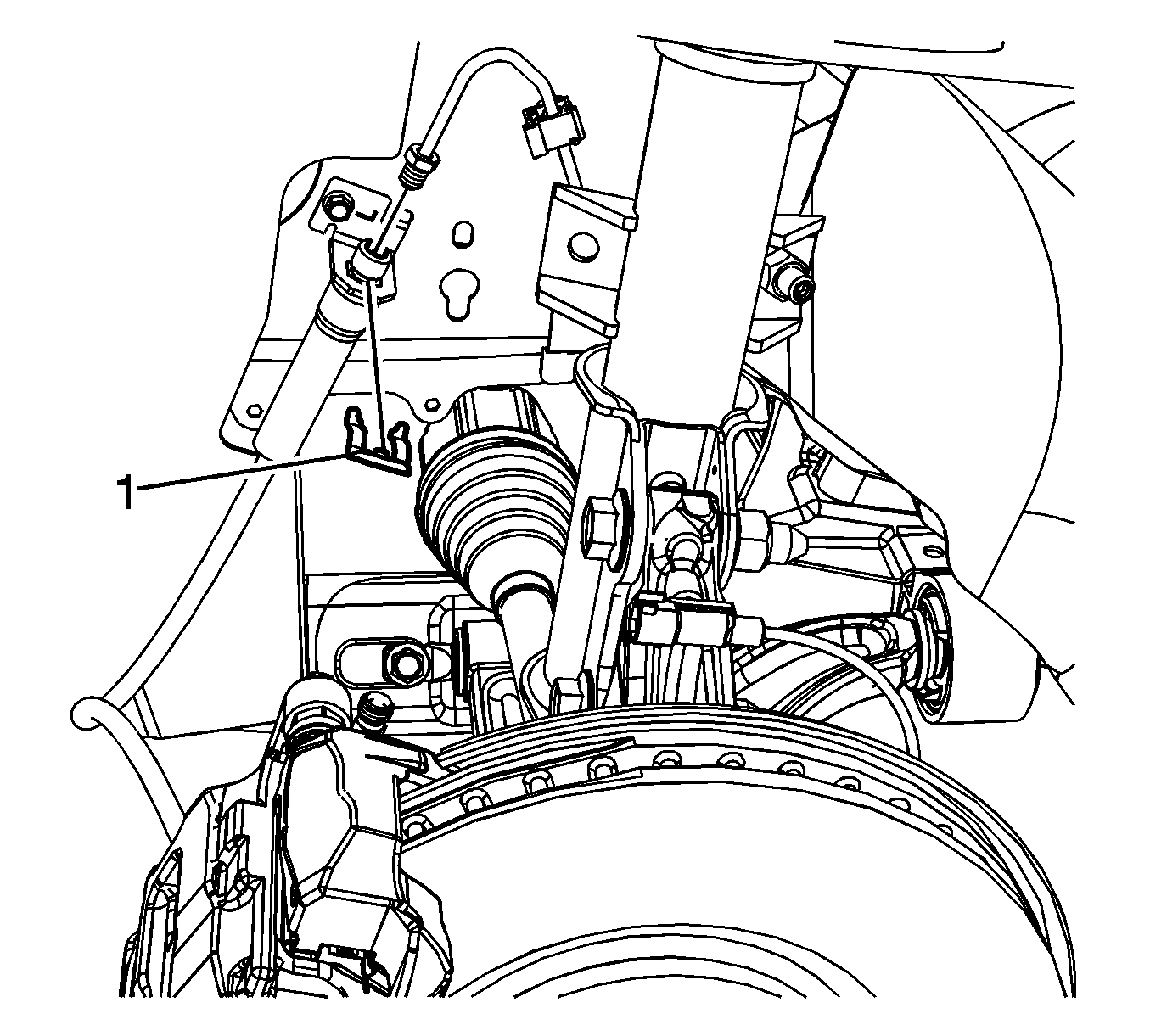

    3. Fig 2: Identifying Front Brake Hose Retaining Clip
    GM2230592Courtesy of GENERAL MOTORS CORP.
  3. Position the brake hose to the bracket.
  4. Install the front brake hose retaining clip (1).

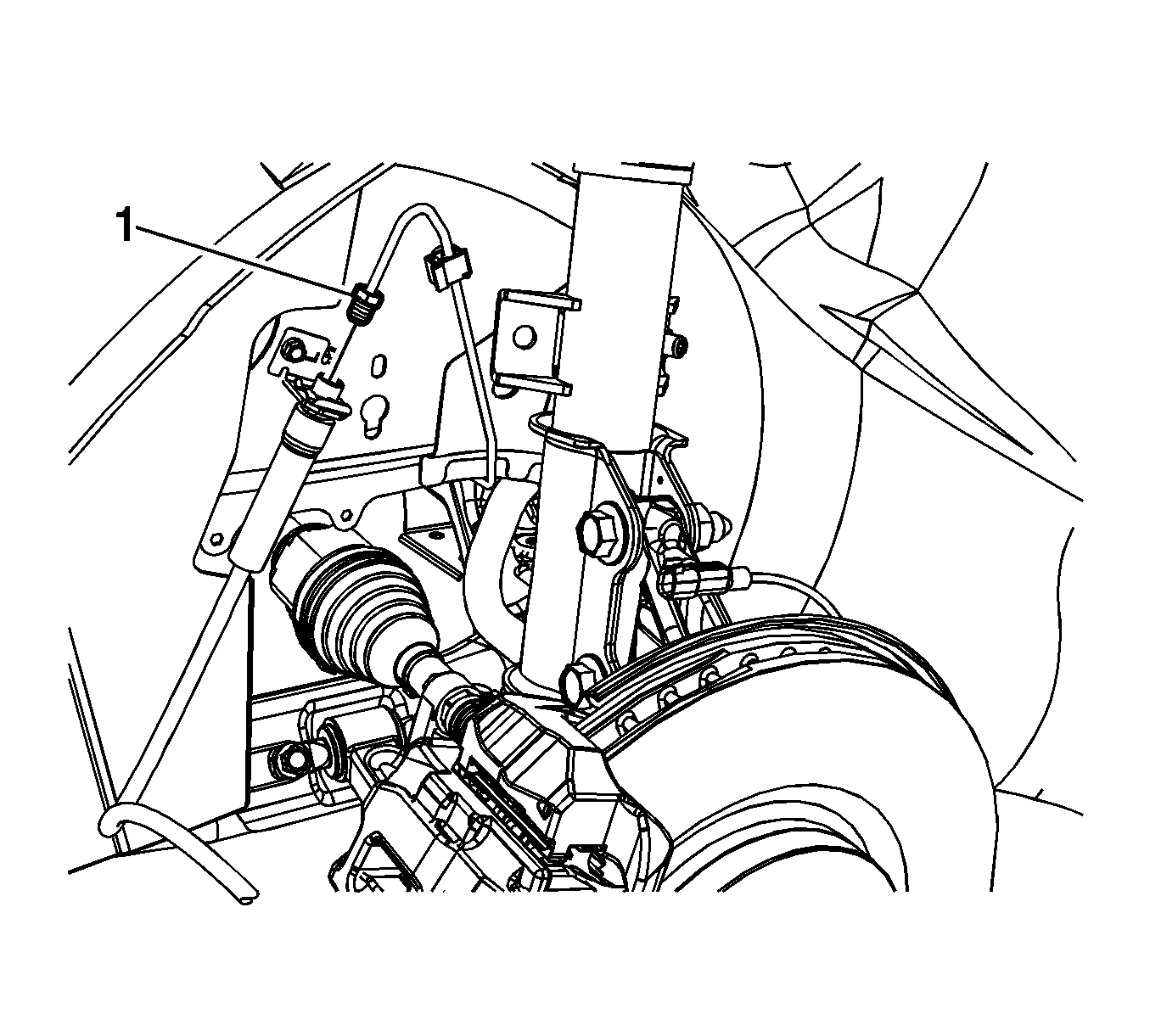

    5. Fig 3: Identifying Brake Pipe Fitting
    GM2230589Courtesy of GENERAL MOTORS CORP.
  5. Install the brake pipe fitting (1) to the front brake hose and tighten to 19 N.m (14 lb ft).
  6. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual)  or Hydraulic Brake System Bleeding (Pressure) .
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
