Installation Procedure

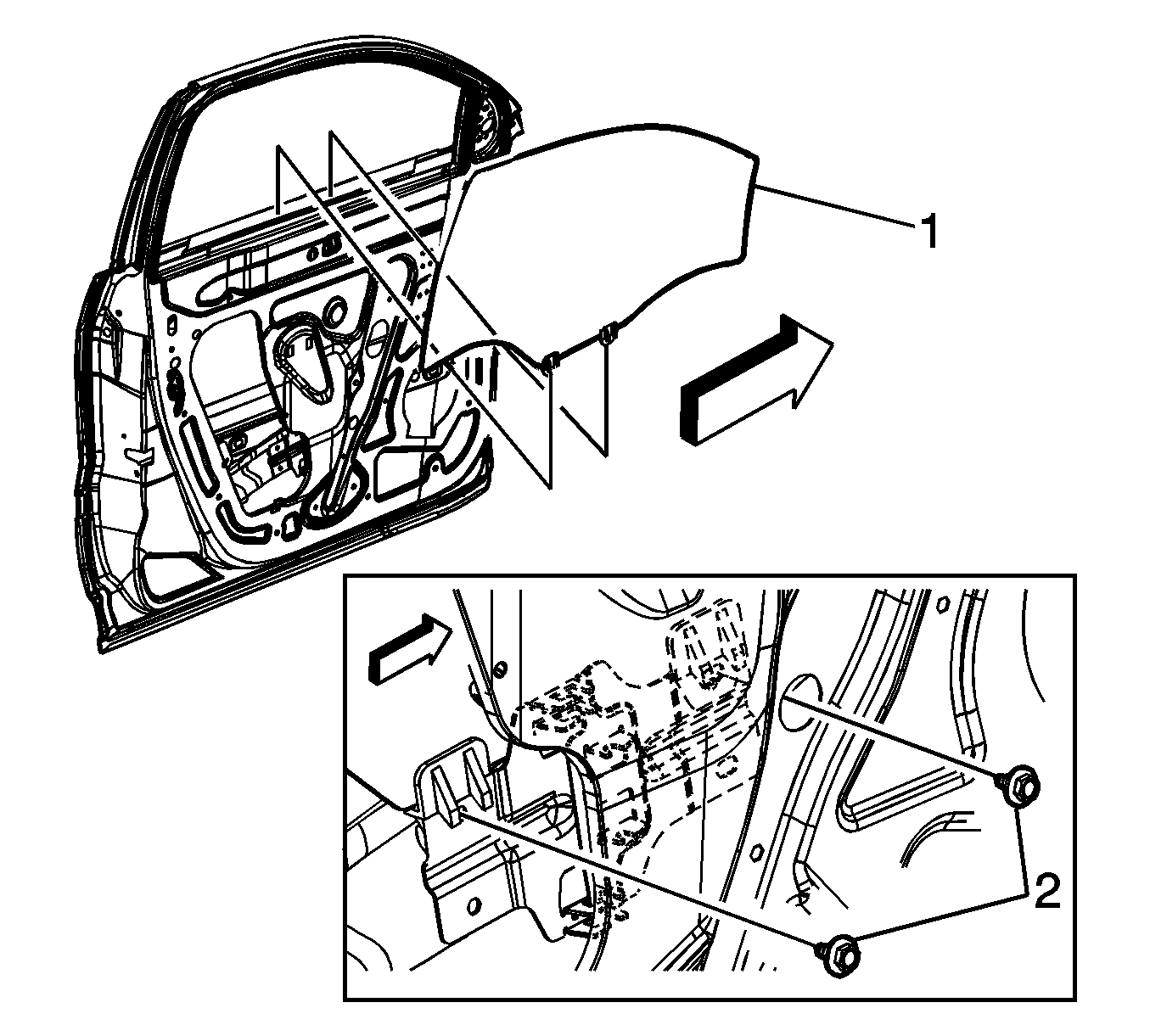

Fig 1: Locating Front Side Door Window & Regulator Bolts

Courtesy of GENERAL MOTORS CORP.

Install the window to the door with the regulator adjusted to the remove/load position.
Tilt the window forward and carefully guide the window into the rear run channel.
Position the window (1) to an upright position.
Loosely tighten the regulator bolts (2).

NOTE: Do not operate the regulator motor without supporting the window. Ensure that the window remains in the run channels when operating the regulator motor.

Carefully move the regulator upward for short slow intervals, while ensuring that the window remains in the run channels.
Position the window (1) to a fully secure position into the upper door weatherstrip.

CAUTION: Refer to Fastener Caution .

Tighten the 2 regulator bolts (2).
Tighten: Tighten the bolts to 10 N.m (89 lb in).
Lower the window to the full down position.
Install the inner belt sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement .
Install the water deflector. Refer to Front Side Door Water Deflector Replacement .
Install the door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Enclave) or Front Side Door Trim Panel Replacement - Left Side (Acadia) or Front Side Door Trim Panel Replacement - Left Side (Traverse) or Front Side Door Trim Panel Replacement - Left Side (OUTLOOK) or Front Side Door Trim Panel Replacement - Right Side (OUTLOOK) or Front Side Door Trim Panel Replacement - Right Side (Traverse) or Front Side Door Trim Panel Replacement - Right Side (Acadia) or Front Side Door Trim Panel Replacement - Right Side (Enclave) .
