Automatic Transmission Manual Shift Switch

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Equinox, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

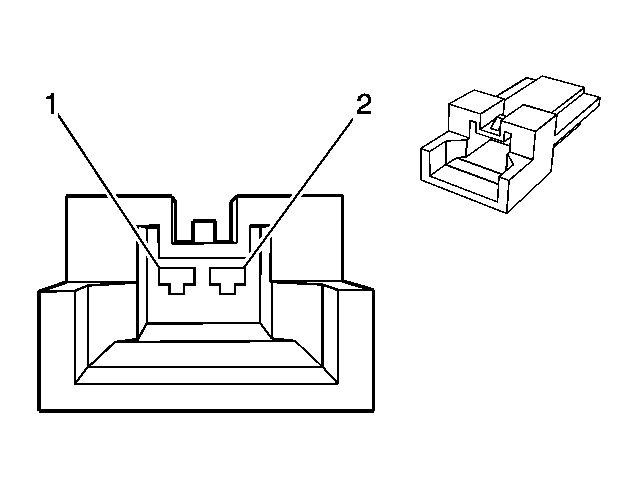

Fig 1: Automatic Transmission Manual Shift Switch Connector End View
GM2204223Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Manual Shift Switch

Pin Wire Circuit Function
A 0.35 PU 1375 Tap Up/Tap Down Switch Signal
B 0.35 PU 5526 Ignition Voltage)
C - - Not Used
D - - Not Used
Connector Part Information
  • Harness: A/T Shifter
  • OEM: 12064761
  • Service: See Catalog
  • Description: 4-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12047581/2
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094429/J-35616-3 (GY)
