Tail Lamp Bulb Replacement (Enclave)
WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

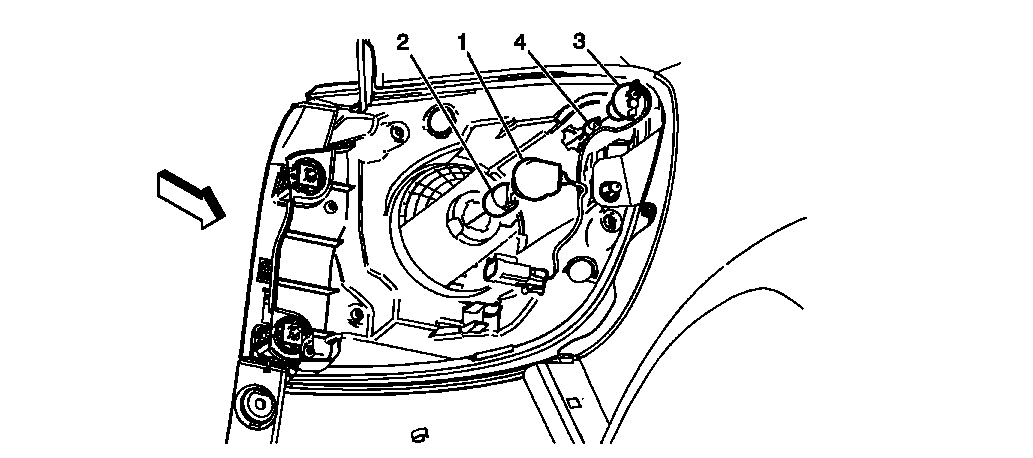

| Callout | Component Name |
|---|---|
| Procedure: Remove the tail lamp assembly. Refer to Tail Lamp Replacement (Traverse) or Tail Lamp Replacement (Acadia) or Tail Lamp Replacement (Enclave) or Tail Lamp Replacement (OUTLOOK) . |
|
| 1 | Stop, Tail, Turn Signal Lamp Bulb Socket Procedure: Rotate and remove the lamp socket from the tail lamp housing. |
| 2 | Stop, Tail, Turn Signal Lamp Bulb Tip: Pull the bulb straight from the lamp socket. |
| 3 | Rear Side Marker Lamp Socket Procedure: Rotate and remove the lamp socket from the tail lamp housing. |
| 4 | Rear Side Marker Lamp Bulb |
