Daytime Running Lamp Bulb Replacement (OUTLOOK)

WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

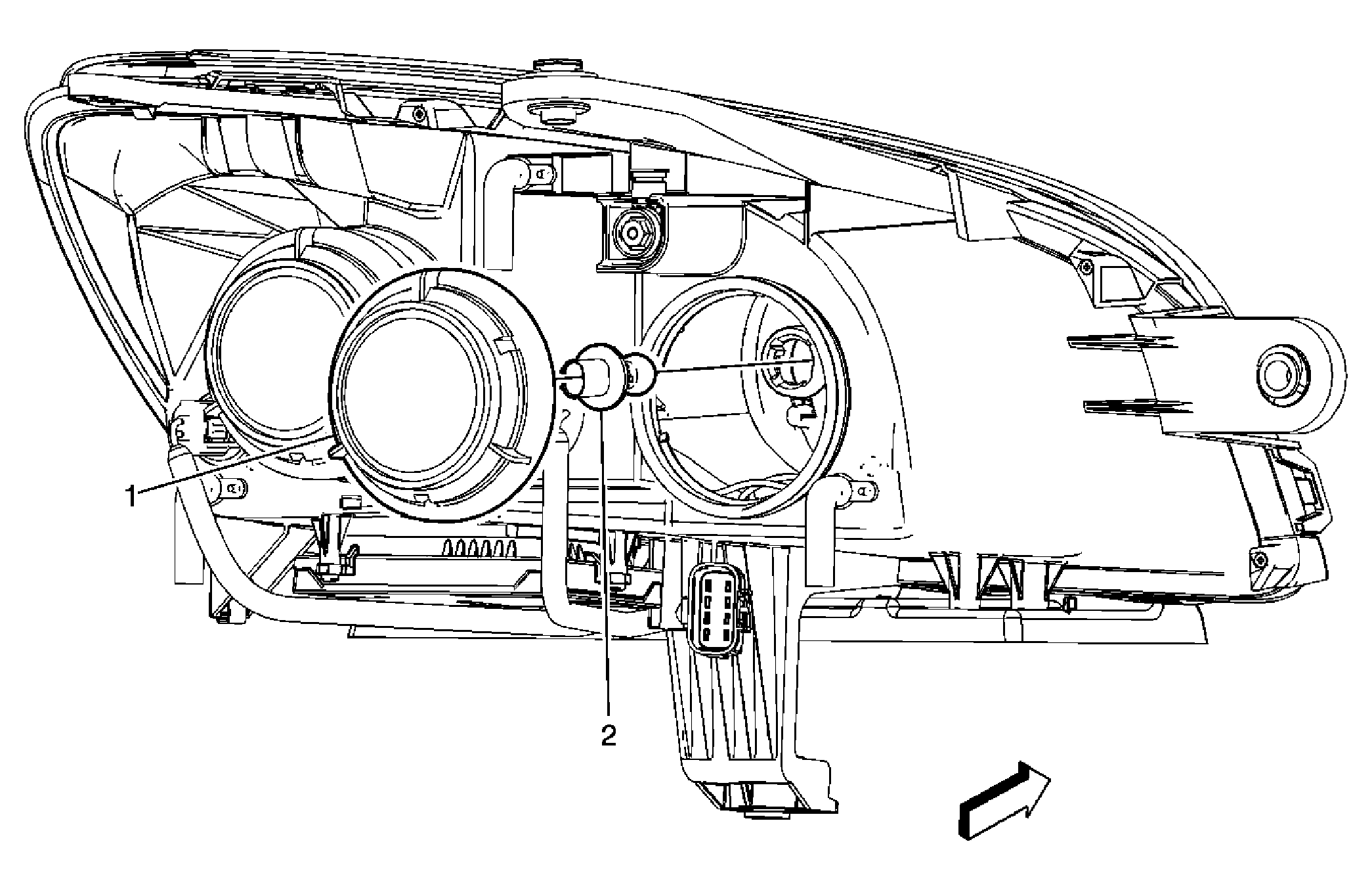

Fig 1: View Of Daytime Running Lamp Bulb (Outlook)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the headlamp capsule from the vehicle. Refer to Headlamp Capsule Replacement (Acadia TVD) or Headlamp Capsule Replacement (Enclave TVC TSH) or Headlamp Capsule Replacement (OUTLOOK) .
1	Headlamp Bulb Accessory Cover Procedure: Rotate the bulb cover counterclockwise from the headlamp capsule and remove.
2	Daytime Running Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure: Rotate the bulb socket and disconnect the electrical connector from the bulb socket.
