Front Side Door Window Frame Front Cover Replacement (Traverse)
WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

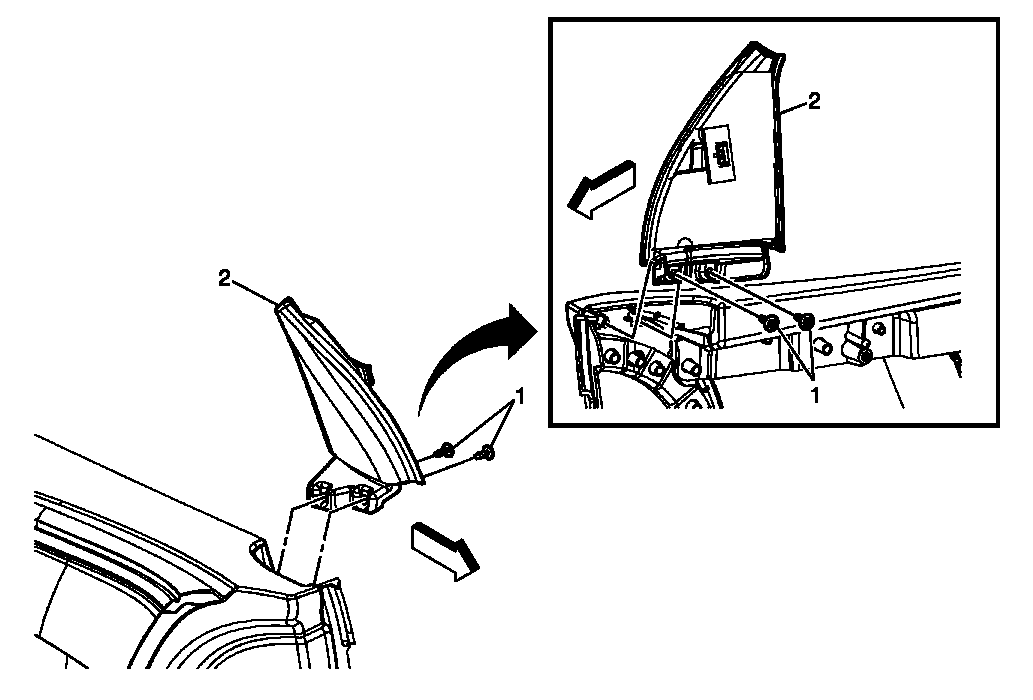

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Traverse) or Front Side Door Trim Panel Replacement - Left Side (Acadia) or Front Side Door Trim Panel Replacement - Left Side (Enclave) or Front Side Door Trim Panel Replacement - Left Side (OUTLOOK) and Front Side Door Trim Panel Replacement - Right Side (Traverse) or Front Side Door Trim Panel Replacement - Right Side (Acadia) or Front Side Door Trim Panel Replacement - Right Side (Enclave) or Front Side Door Trim Panel Replacement - Right Side (OUTLOOK) . |
|
| 1 | Front Side Door Trim Fastener
CAUTION:
Refer to Fastener Caution
.
Tighten: 1 N.m (9 lb in) |
| 2 | Front Side Door Window Frame Front Cover Assembly |
