Sunroof Housing Drain Gutter Replacement

WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

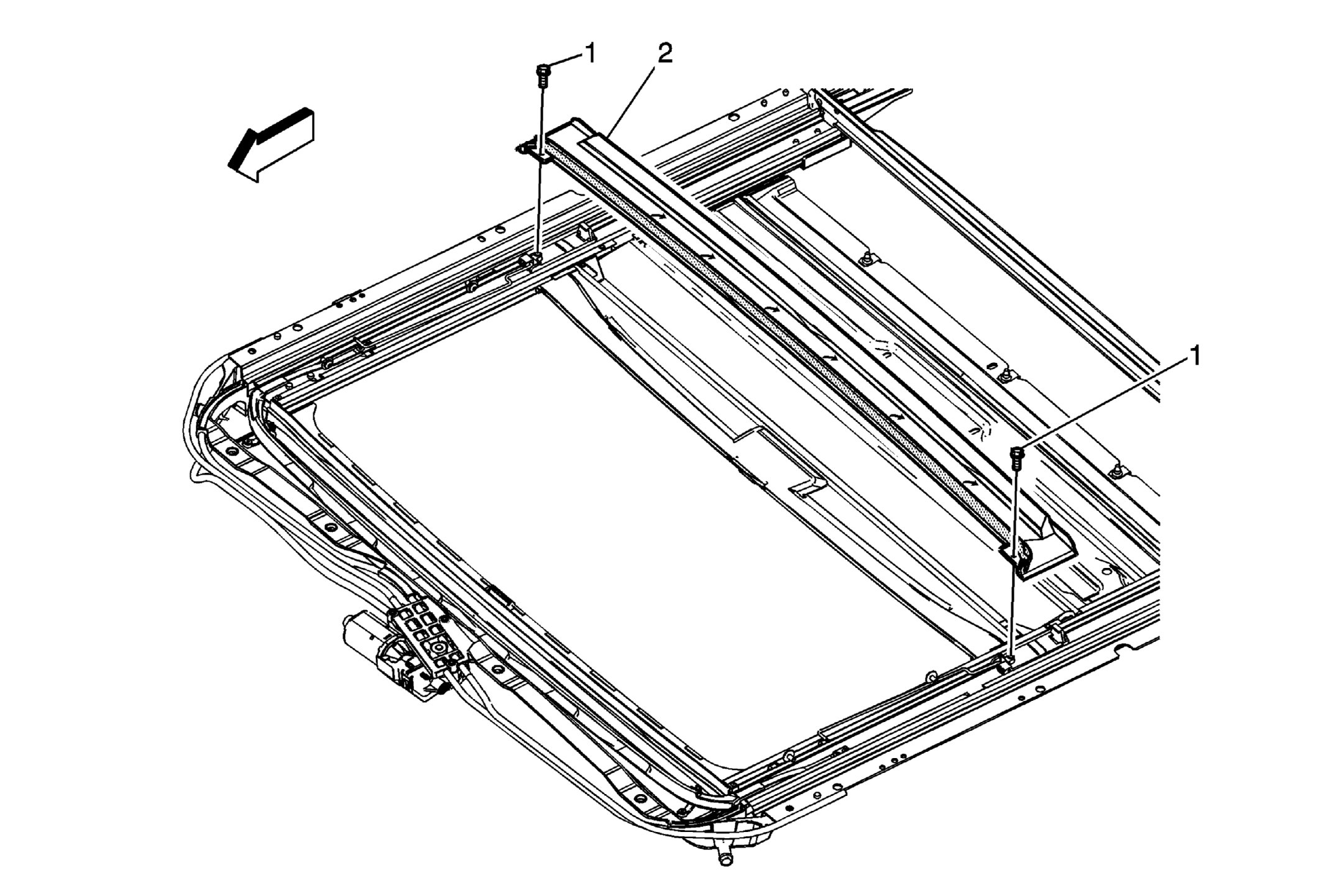

Fig 1: Identifying Sunroof Housing Drain Gutter
GM1850600Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the sunroof window. Refer to Sunroof Window Replacement .
1 Sunroof Gutter Screws (Qty: 2)
2 Sunroof Gutter
