Installation Procedure

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

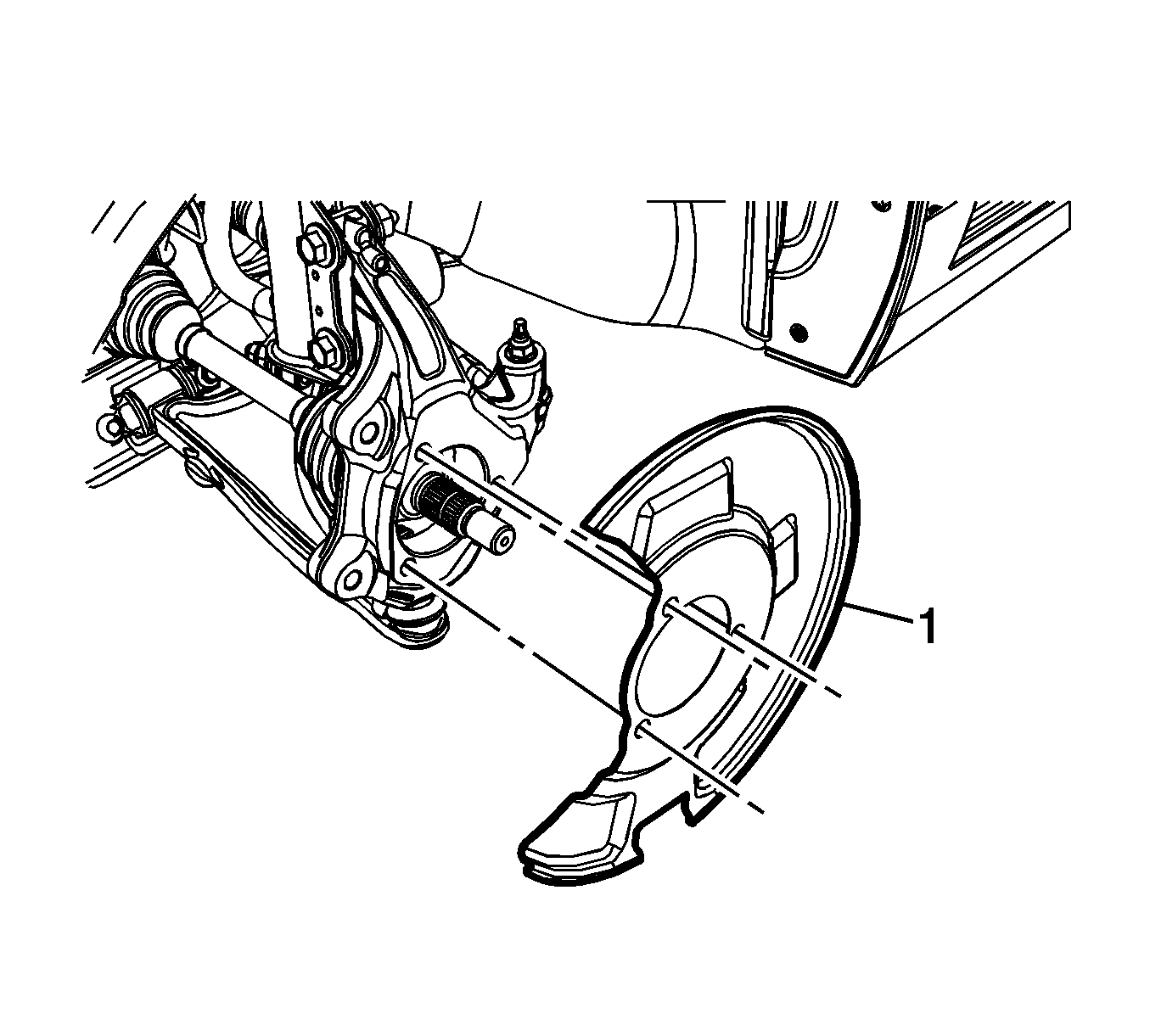

    Fig 1: View Of Front Brake Shield
    GM2216199Courtesy of GENERAL MOTORS COMPANY
  1. Install the front brake shield (1).
  2. Install the front wheel bearing and hub assembly. Refer to Front Wheel Bearing and Hub Replacement .
