Outside Rearview Mirror Schematics

WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

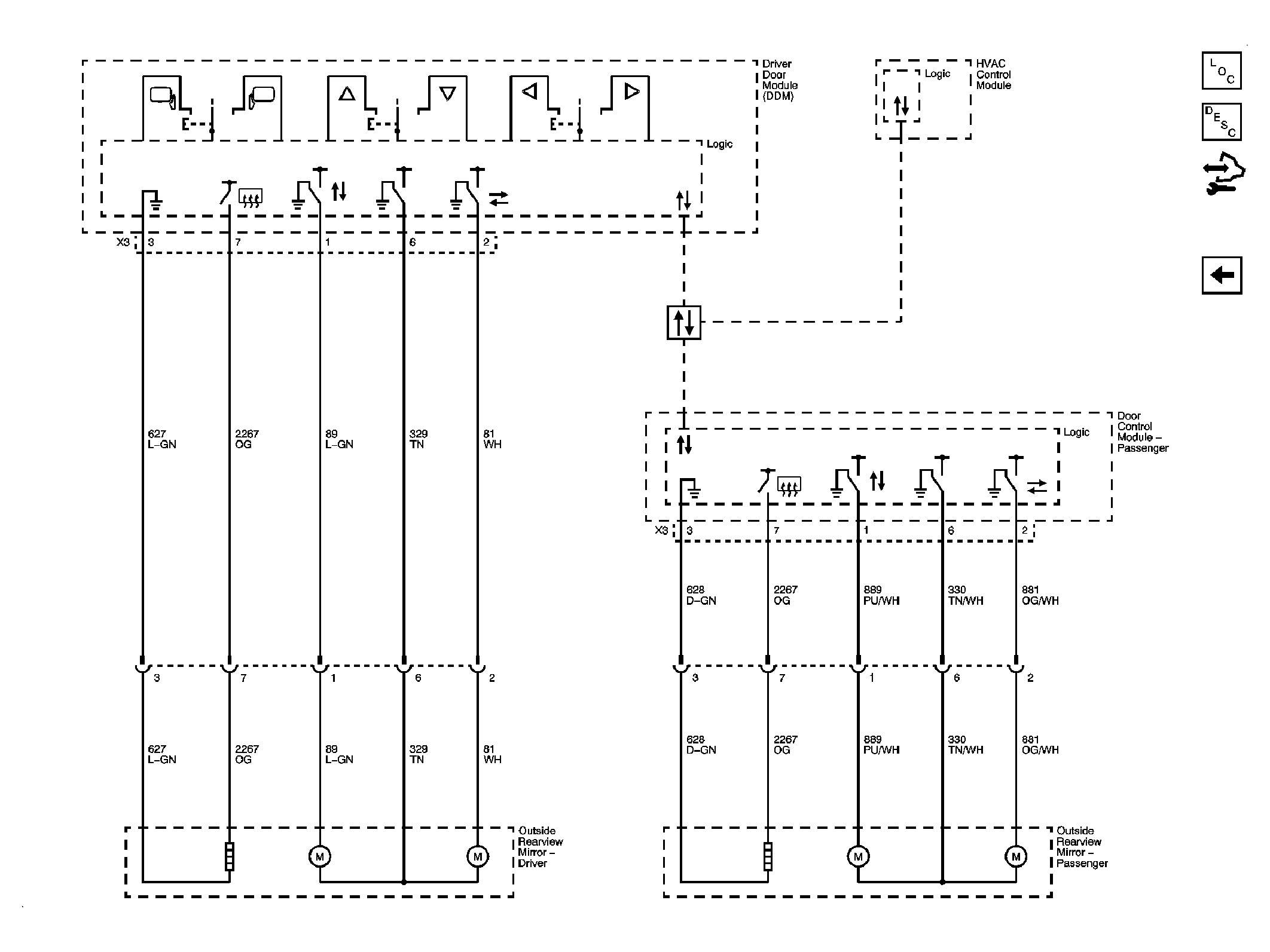

Fig 1: Outside Rearview Mirror Circuit Schematic (DL6 Or DS3)

Courtesy of GENERAL MOTORS CORP.

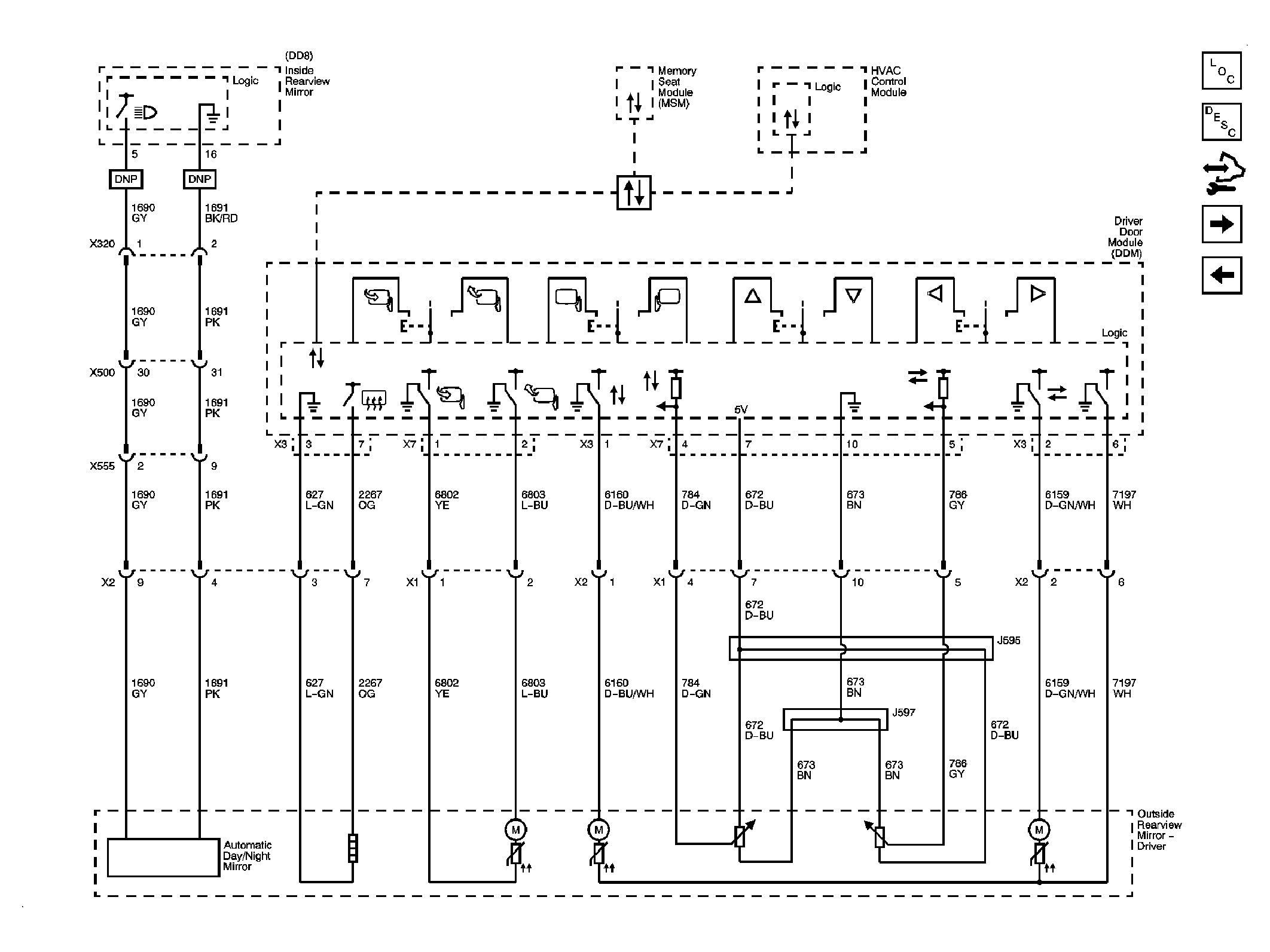

Fig 2: Driver Mirror Circuit Schematic (DNP Or DNT)

Courtesy of GENERAL MOTORS CORP.

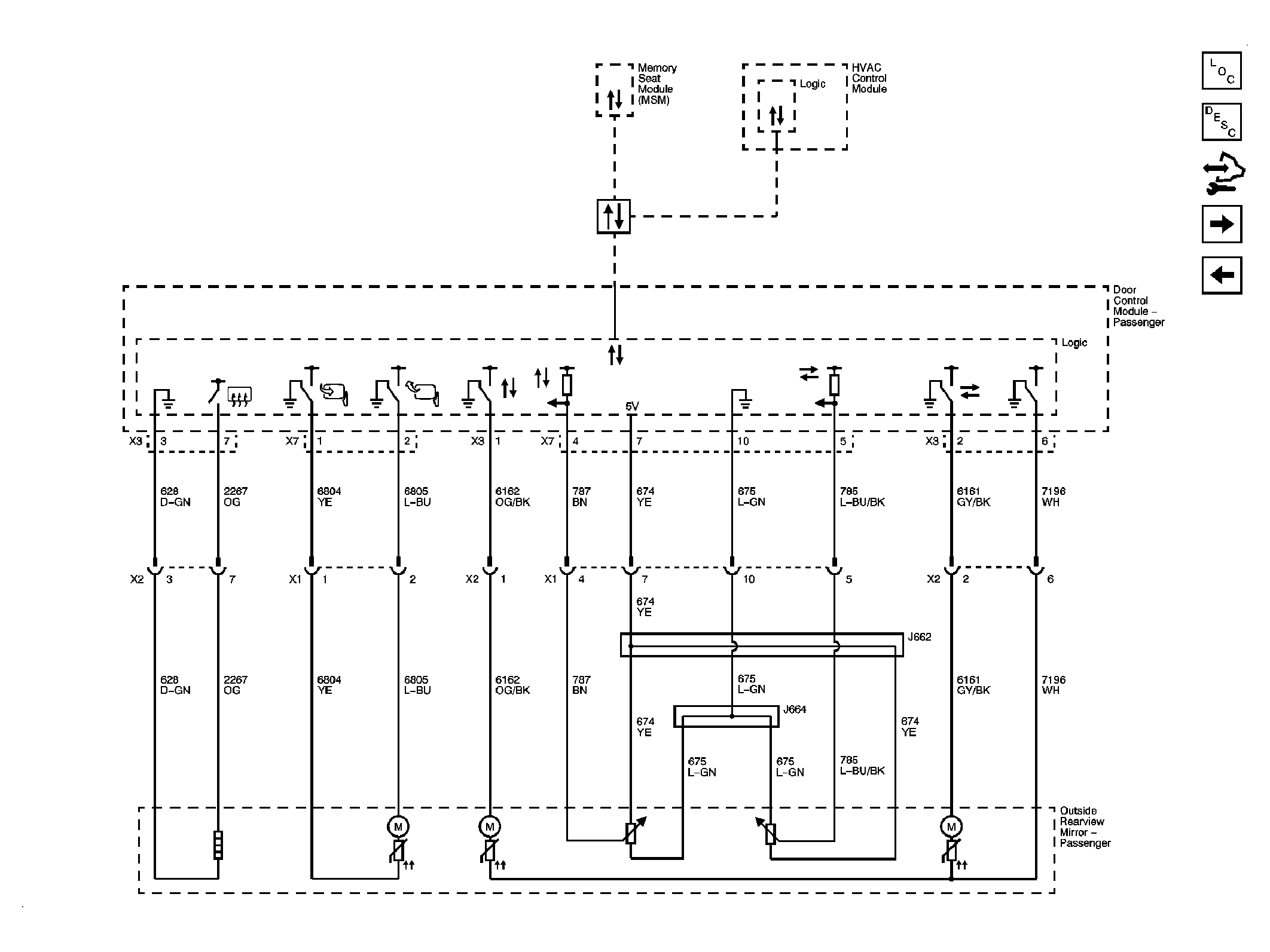

Fig 3: Passenger Mirror Circuit Schematic (DNP Or DNT)

Courtesy of GENERAL MOTORS CORP.

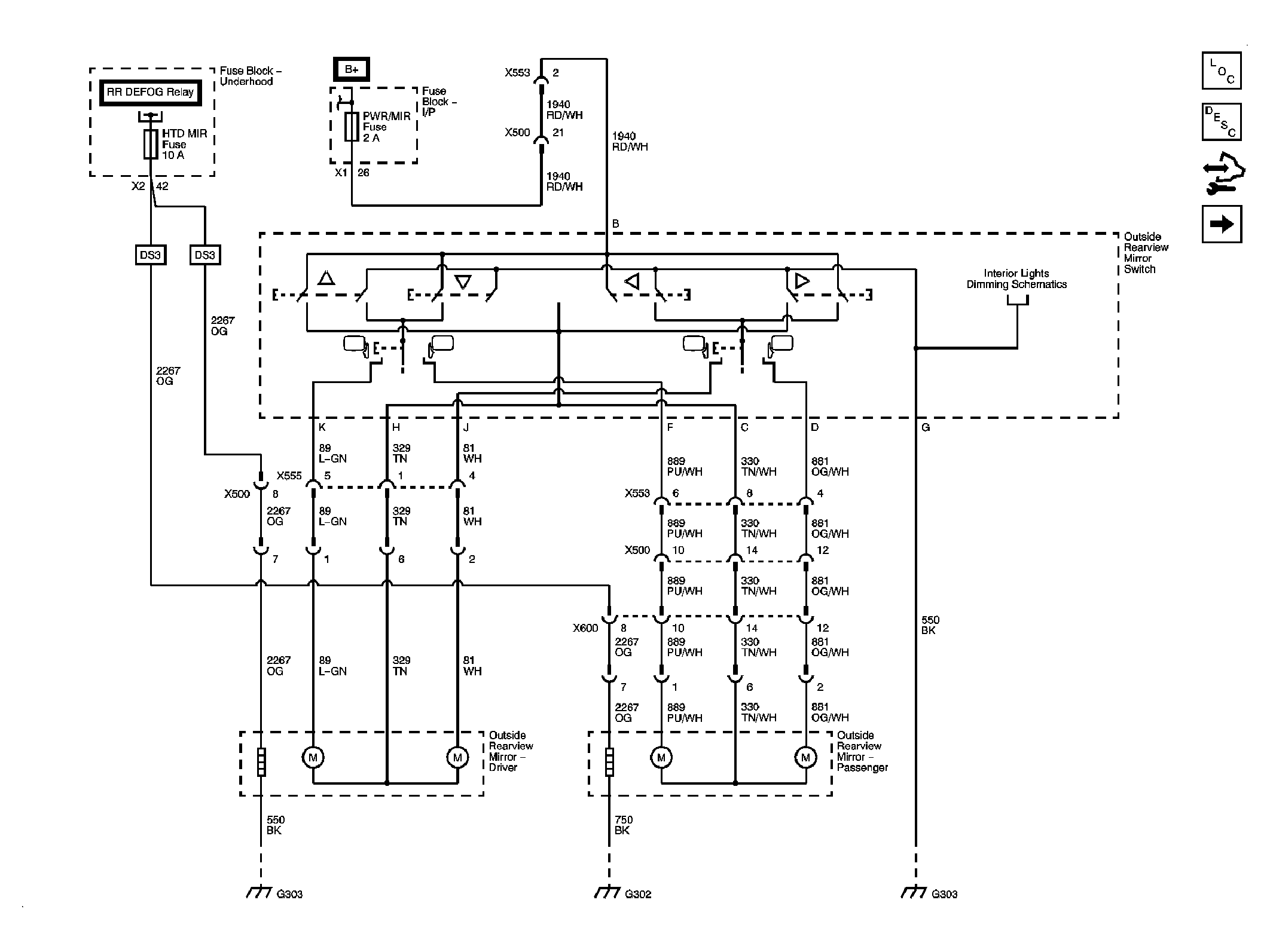

Fig 4: Mirror Circuit Schematic (W49 Without DNP)

Courtesy of GENERAL MOTORS CORP.
