Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Outside Rearview Mirror Motor & Actuator Ring
    GM2169848Courtesy of GENERAL MOTORS CORP.
  1. Install the motor/actuator ring (1) to the actuator (2), ensure that the actuator tabs (3) are in line with the motor/actuator ring.
    2. Fig 2: Identifying Actuator Ring & Motor/Actuator
    GM2168059Courtesy of GENERAL MOTORS CORP.
  2. Place the motor/actuator ring (1) in the center of the motor/actuator (2).
    1. Place mirror lens motor/actuator ring in the center of the motor, press inward until fully seated.
    2. Connect the electrical connectors to the mirror lens.

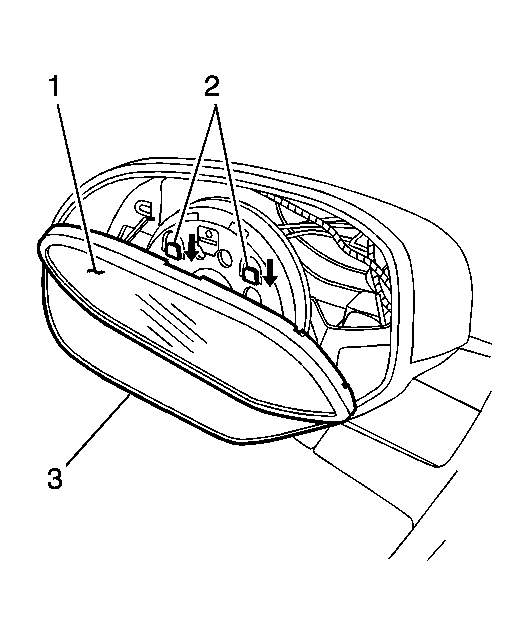

    3. Fig 3: View Of Outside Mirror Assembly
    GM2169874Courtesy of GENERAL MOTORS CORP.
  3. Install the mirror lens as follows:
    1. Position the mirror lens (1) on the mirror motor/actuator ring lower retaining tabs (2).
    2. Place your hand in the back of the mirror housing.
    3. Push downward use your hand until the mirror lens (1) locks onto the upper retaining tabs (2).
  4. Inspect the mirror lens for proper operation.
