Front Seat Heater Control Module Replacement (With UFL)

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

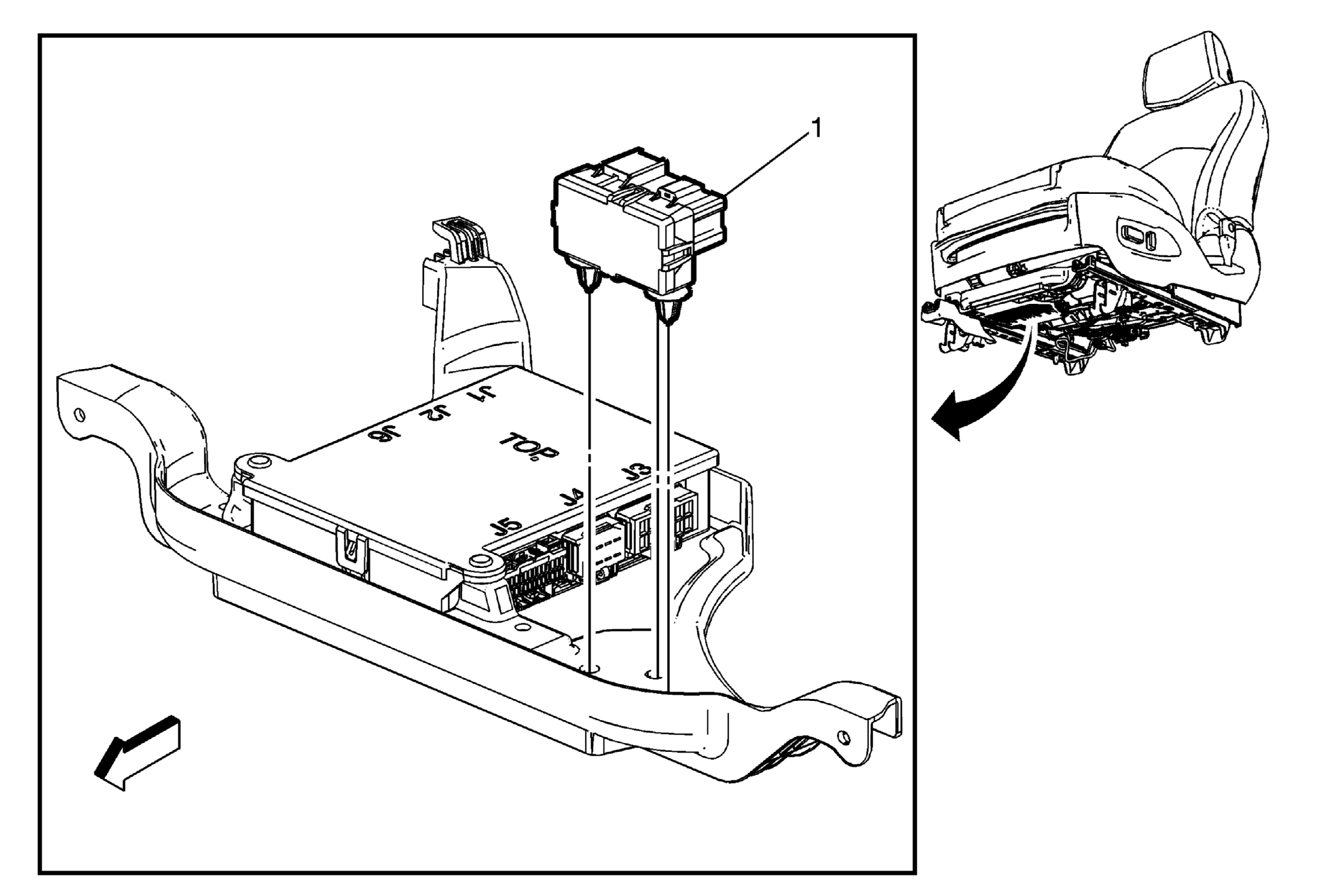

Fig 1: Front Seat Heater Control Module (With UFL)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Position the driver seat to the highest position to gain access to the heated seat module.
1	Front Seat Heater Control Module Procedure NOTE: The seat bracket does not need to be removed from the seat to access the heated seat control module. Disconnect electrical connectors. Remove the module from the driver seat bracket. Refer to Control Module References for programing and setup information.

Callout

Component Name

Preliminary Procedure
Position the driver seat to the highest position to gain access to the heated seat module.

Front Seat Heater Control Module

Procedure

NOTE:

The seat bracket does not need to be removed from the seat to access the heated seat control module.

Disconnect electrical connectors.
Remove the module from the driver seat bracket.
Refer to Control Module References for programing and setup information.
