Splice Pack Connector End Views

WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

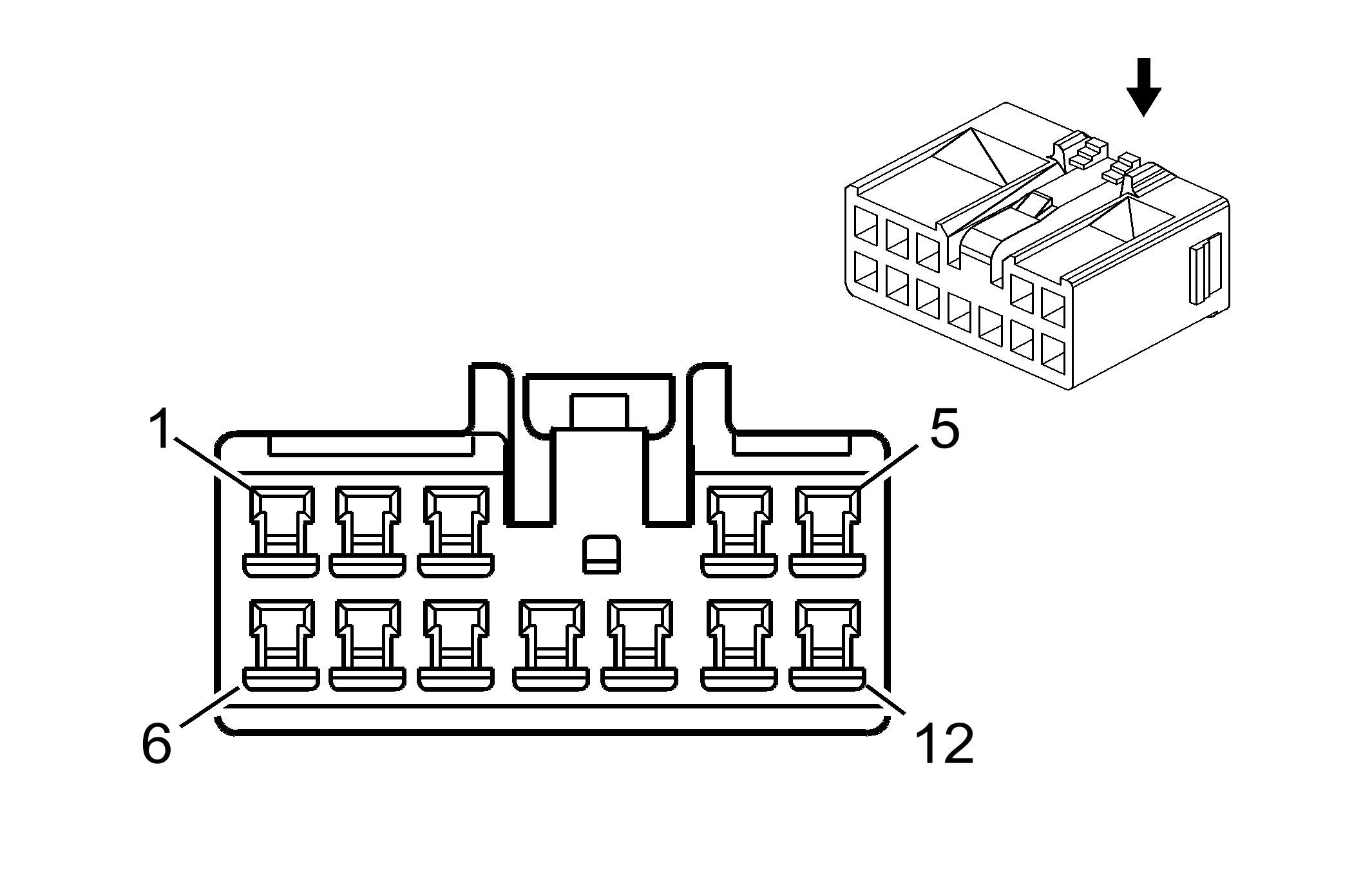

Fig 1: JX205 Splice Pack Connector End View

Courtesy of GENERAL MOTORS CORP.

JX205

Pin	Wire Color	Circuit No.	Function
1	0.35 D-GN	5060	Low Speed GMLAN Serial Data
2	0.35 D-GN	5060	Low Speed GMLAN Serial Data
3	0.35 D-GN	5060	Low Speed GMLAN Serial Data (A45)
4	-	-	Not Used
5	0.35 D-GN	5060	Low Speed GMLAN Serial Data (A45)
6	-	-	Not Used
7	0.35 D-GN	5060	Low Speed GMLAN Serial Data
8	0.35 D-GN	5060	Low Speed GMLAN Serial Data
9	-	-	Not Used
10	0.35 D-GN	5060	Low Speed GMLAN Serial Data
11	0.35 D-GN	5060	Low Speed GMLAN Serial Data
12	0.35 D-GN	5060	Low Speed GMLAN Serial Data

Connector Part Information

OEM: 7283-1120
Service: See Catalog
Description: 12-Way F 090 Series (NA)

Terminal Part Information

Terminal/Tray: 7116-4020/11
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Fig 2: JX405 Splice Pack Connector End View

Courtesy of GENERAL MOTORS CORP.

JX405

Pin	Wire	Circuit	Function
1	0.35 D-GN	5060	Low Speed GMLAN Serial Data
2-3	-	-	Not Used
4	0.35 D-GN	5060	Low Speed GMLAN Serial Data (UK6)
5	-	-	Not Used
6	0.35 D-GN	5060	Low Speed GMLAN Serial Data
7	0.35 D-GN	5060	Low Speed GMLAN Serial Data (UD7)
8	0.35 D-GN	5060	Low Speed GMLAN Serial Data (UE1)
9	0.35 D-GN	5060	Low Speed GMLAN Serial Data (U2K)
10	0.35 D-GN	5060	Low Speed GMLAN Serial Data
11	0.35 D-GN	5060	Low Speed GMLAN Serial Data (TB5)
12	0.35 D-GN	5060	Low Speed GMLAN Serial Data (A45/KA1)

Connector Part Information

OEM: 7283-1120
Service: See Catalog
Description: 12-Way F 090 Series (NA)

Terminal Part Information

Terminal/Tray: 7116-4020/11
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-18 (BK)
