Rear Floor Console Release Latch Replacement

WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

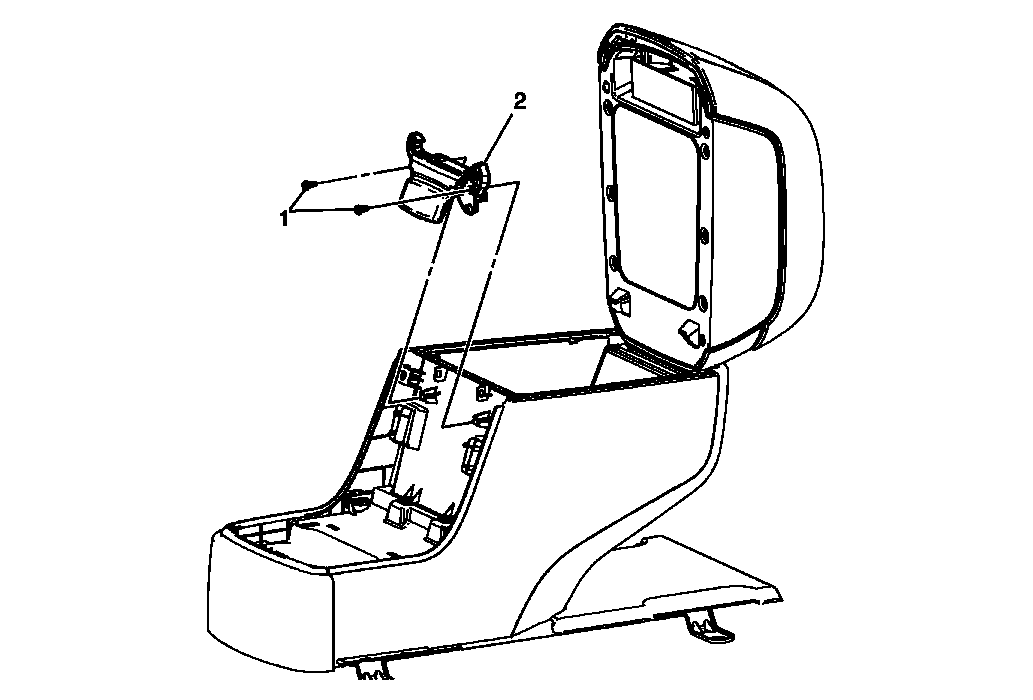

Fig 1: View Of Rear Floor Console Release Latch
GM1999364Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the rear floor console front upper trim panel assembly. Refer to Rear Floor Console Front Trim Upper Panel Replacement .
1 Rear Floor Console Rear Release Latch Screw (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  2.5 N.m (22 lb in)
2 Rear Floor Console Release Latch Assembly
