Front Floor Console Rear Trim Panel Replacement

WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

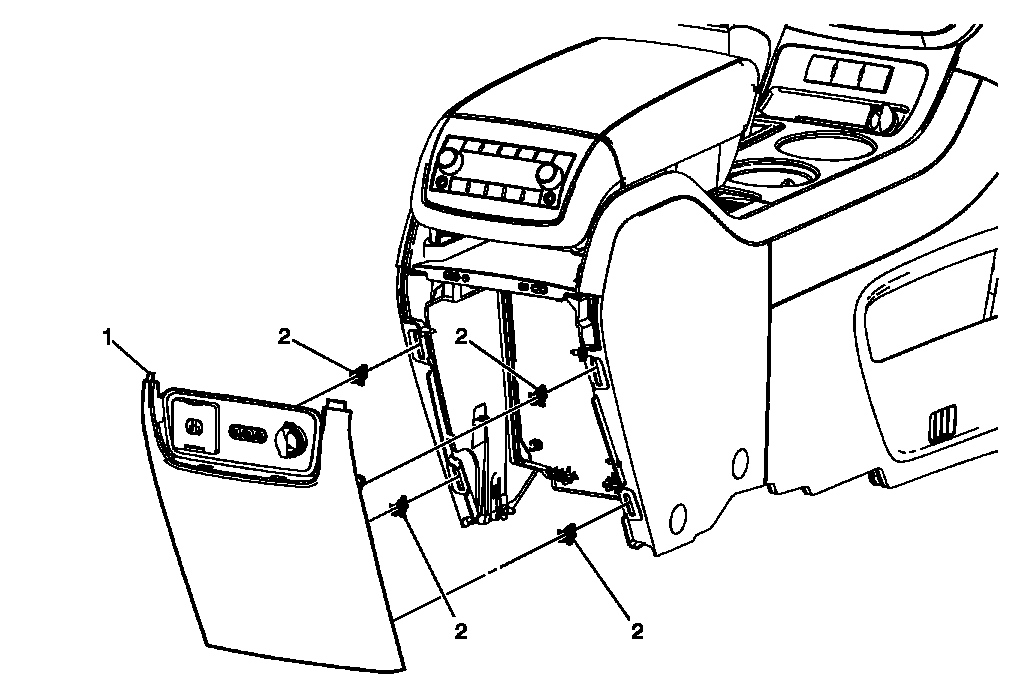

Fig 1: View Of Front Floor Console Rear Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the floor console accessory trim plate applique. Refer to Front Floor Console Accessory Trim Plate Applique Replacement .
1	Front Floor Console Rear Trim Plate Procedure Disconnect the electrical connections. When replacing the front floor console rear trim plate, transfer all necessary components.
2	Retainer Clip (Qty: 4)

Callout

Component Name

Preliminary Procedure:
Remove the floor console accessory trim plate applique. Refer to Front Floor Console Accessory Trim Plate Applique Replacement .

Front Floor Console Rear Trim Plate

Procedure

Disconnect the electrical connections.
When replacing the front floor console rear trim plate, transfer all necessary components.

Retainer Clip (Qty: 4)
