Remote Function Schematics

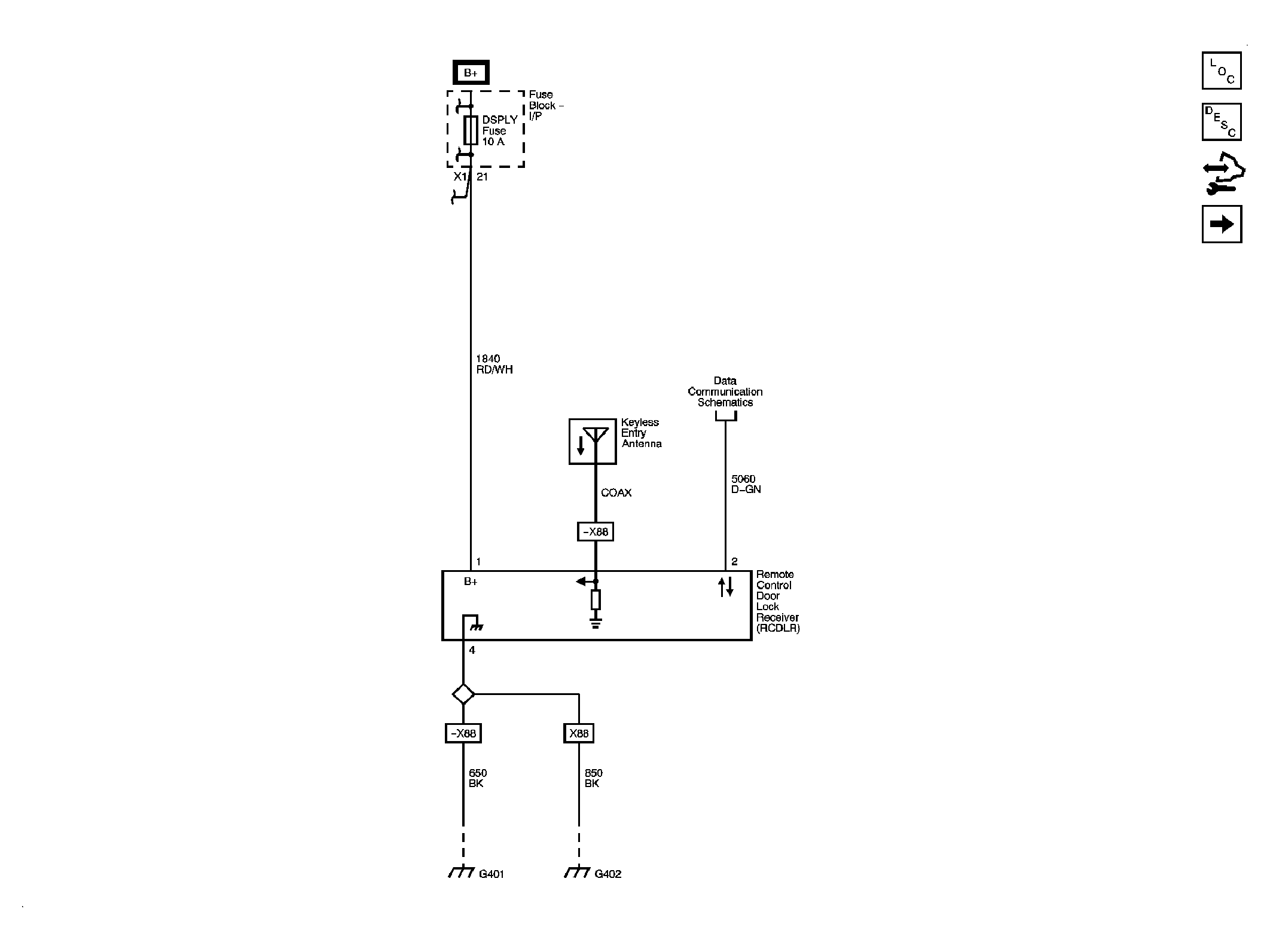

Fig 1: Keyless Entry Circuit Schematic (AQQ)

GM2248477

Courtesy of GENERAL MOTORS CORP.

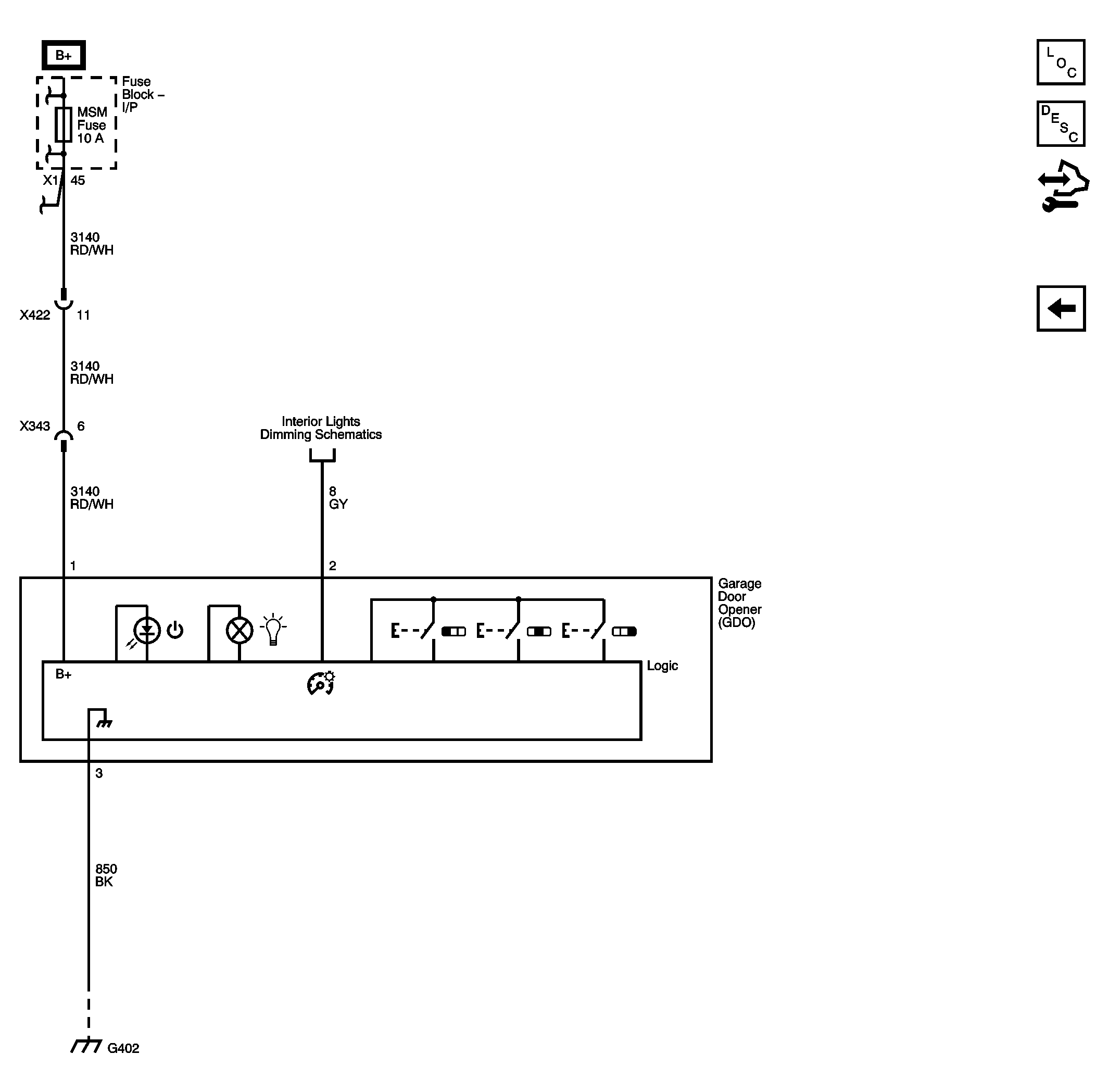

Fig 2: Garage Door Opener Circuit Schematic (UG1)

GM2248485

Courtesy of GENERAL MOTORS CORP.
