Steering Wheel Secondary/Configurable Control Schematics

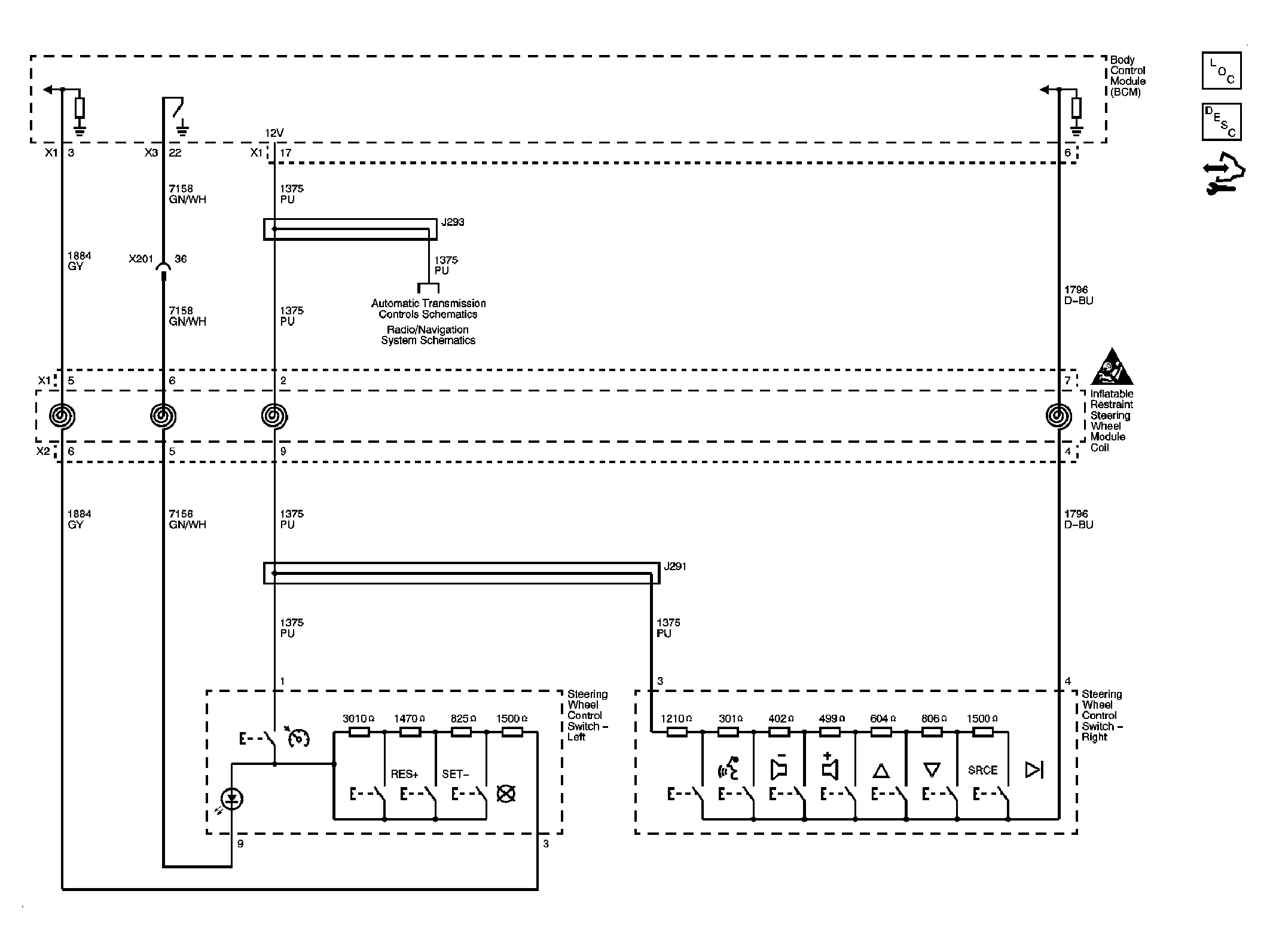

Fig 1: Steering Wheel Secondary/Configurable Control Circuit Schematic (UK3)

GM2248114

Courtesy of GENERAL MOTORS CORP.
