Passenger Compartment/Roof Component Views

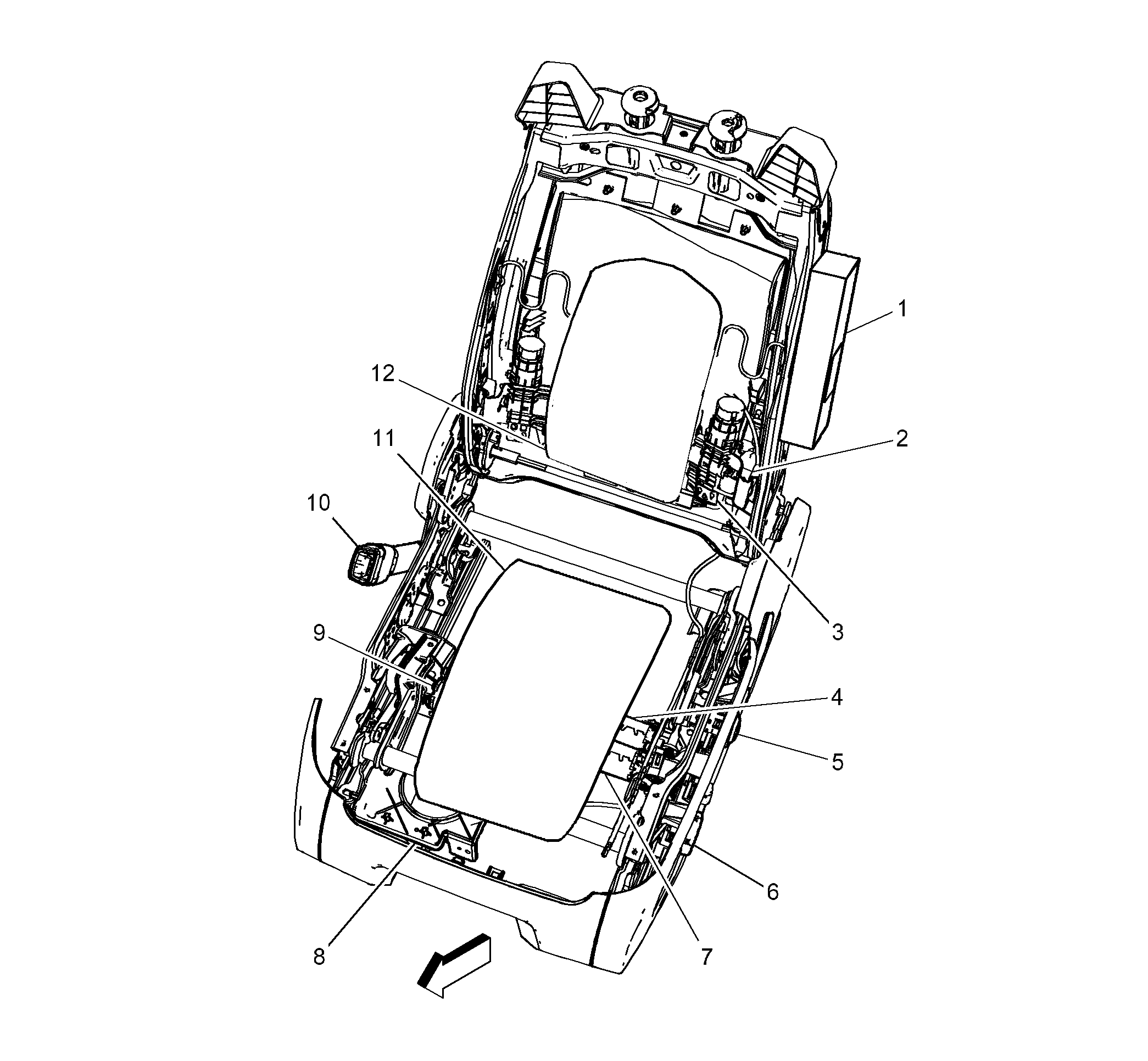

Fig 1: View Of Driver Seat (Except A45)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Left
2	Seat Recline Motor - Driver (AH5)
3	Seat Lumbar Horizontal Motor - Driver (AH5)
4	Seat Horizontal Motor - Driver (AG1 or AH5)
5	Seat Lumbar Switch - Driver (AH5)
6	Seat Adjuster Switch - Driver (AG1 or AH5)
7	Seat Rear Vertical Motor - Driver (AG1 or AH5)
8	Heated Seat Control Module - Driver (KA1)
9	Seat Front Vertical Motor - Driver (AG1 or AH5)
10	Seat Belt Buckle - Driver
11	Heated Seat Element - Driver Cushion (KA1 or KB6)
12	Heated Seat Element - Driver Back (KA1 or KB6)

Fig 2: Identifying Driver Seat Components (AG3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Front Vertical Motor - Driver
2	Seat Front Vertical Motor Position Sensor
3	Seat Rear Vertical Motor Position Sensor - Driver
4	Seat Front Vertical Motor - Driver
5	Heated Seat Element - Driver Back
6	Inflatable Restraint Side Impact Module - Left
7	Seat Adjuster Switch - Driver
8	Seat Lumbar Switch - Driver
9	Seat Belt Pretensioner - Driver
10	Seat Horizontal Motor - Driver
11	Seat Horizontal Motor Position Sensor - Driver
12	Seat Cushion Ventilation Heating and Cooling Module - Driver (KB6)
13	Memory Seat Module (MSM)
14	Seat Back Ventilation Heating and Cooling Module - Driver (KB6)
15	Heated Seat Element - Driver Cushion
16	Seat Belt Buckle - Driver
17	Seat Recline Position Sensor - Driver
18	Seat Recline Motor - Driver
19	Seat Lumbar Horizontal Motor - Driver (Early Production)

Fig 3: Identifying Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch - Passenger, part of Seat Belt Buckle - Passenger
2	Heated Seat Element - Passenger Cushion (KA1 or KB6)
3	Inflatable Restraint Side Impact Module - Right
4	Inflatable Restraint Front Passenger Presence System (PPS) Module (with Sensor)
5	Seat Recline Motor - Passenger (AAQ)
6	Seat Lumbar Horizontal Motor - Passenger (AAQ)
7	Seat Back Ventilation Heating and Cooling Module - Passenger (KB6)
8	Seat Horizontal Motor - Passenger (AAQ or AG2)
9	Seat Cushion Ventilation Heating and Cooling Module - Passenger (KB6)
10	Seat Belt Pretensioner - Passenger
11	Seat Lumbar Switch - Passenger (AAQ)
12	Heated Seat Element - Passenger Back (KA1 or KB6)
13	Seat Adjuster Switch - Passenger (AAQ or AG2)

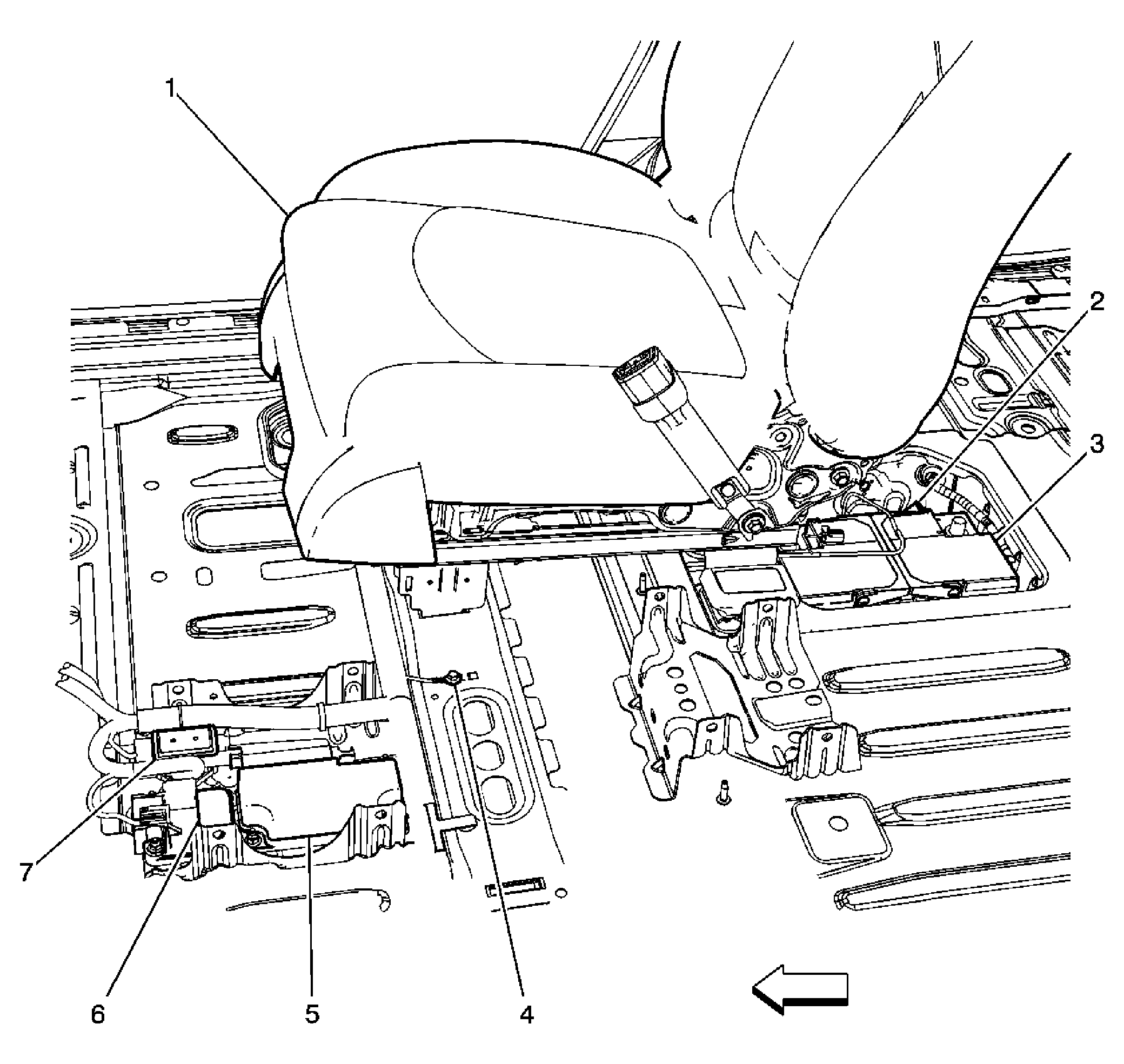

Fig 4: Identifying Components Near Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Seat
2	Battery Current Sensor
3	Battery
4	G304
5	Inflatable Restraint Sensing and Diagnostic Module (SDM)
6	Inflatable Restraint Vehicle Rollover Sensor
7	Yaw and Lateral Accelerometer Sensor

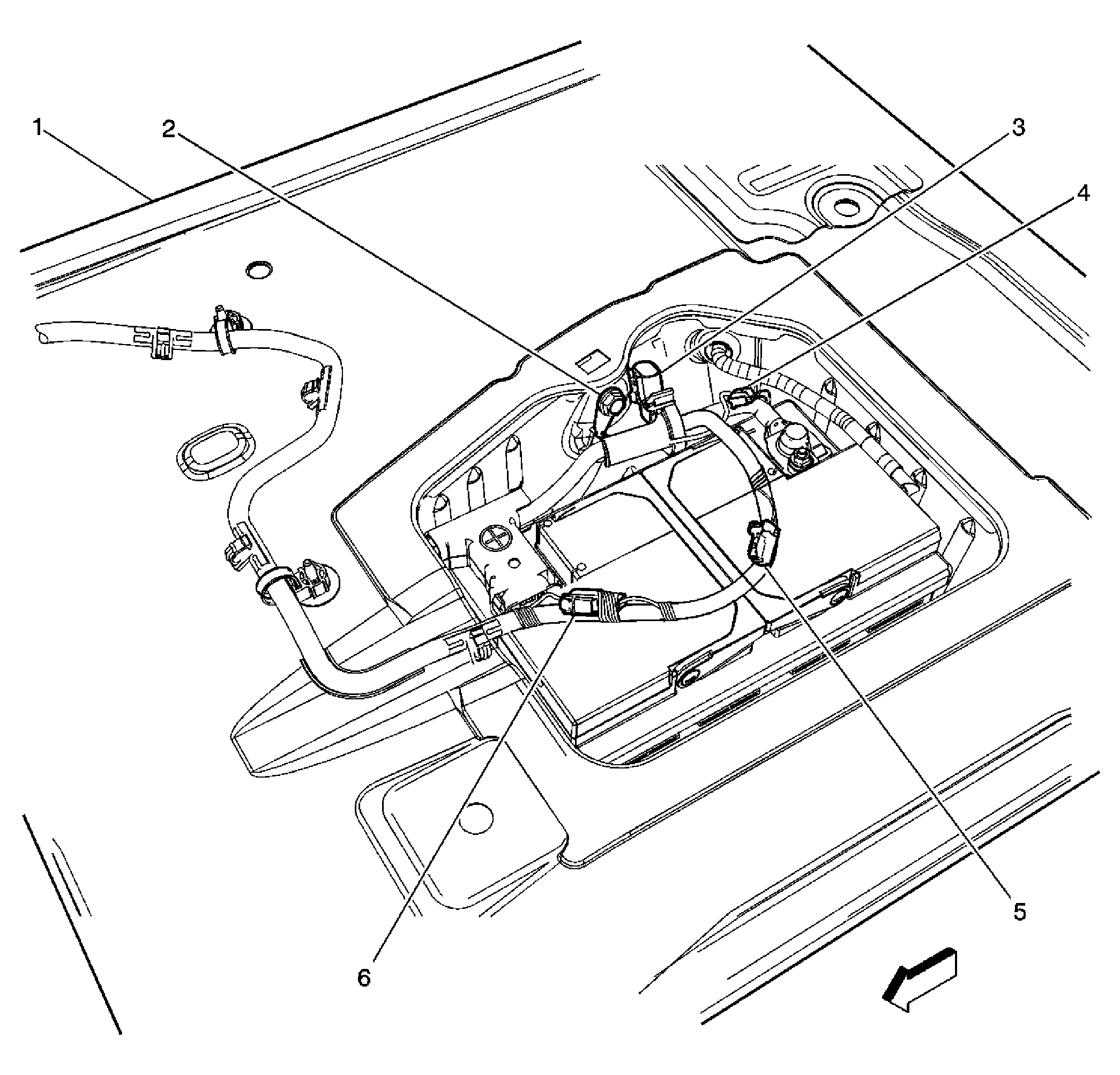

Fig 5: Second Row Seat Area Floor

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Overhead Console Courtesy/Reading Lamps - Rear
2	Infrared Transmitter (U42 with C3U)
3	Courtesy/Reading Lamps - 2nd Row (U42 with C3U)
4	Digital Video Disc (DVD) Display (U42 with C3U)
5	Sunroof Switch (C3U)
6	Cellular Telephone Microphone (UE1)
7	Overhead Console Courtesy/Reading Lamps - Front
8	Console Flood Lamp
9	Garage Door Opener (UG1)
10	Sunroof Shade Switch (C3U)
11	Sunshade - Right
12	Inside Rearview Mirror (ISRVM)
13	Sunshade - Left
14	Digital Video Disc (DVD) Display (U42 without C3U)
15	Courtesy/Reading Lamps - 2nd Row (without C3U)
16	Infrared Transmitter (U42 without C3U)
17	Rear Parking Assist (RPA) Display (UD7)
18	Electronic Compass Module (U80)
19	Remote Control Door Lock Receiver (RCDLR)

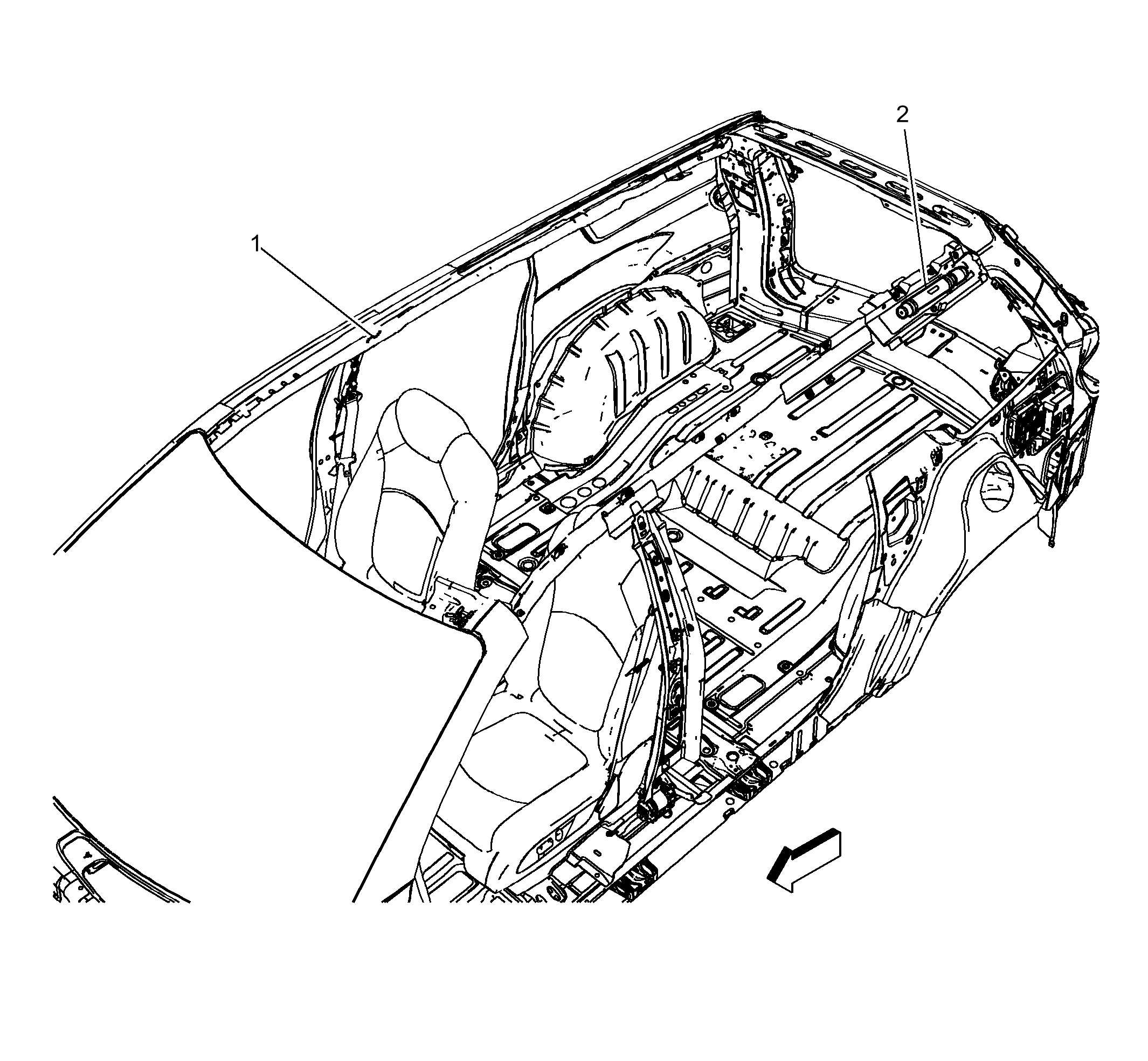

Fig 7: View Of Roof Rail Air Bags

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Passenger
2	Inflatable Restraint Roof Rail Module - Driver
3	Floor Panel
4	Windshield

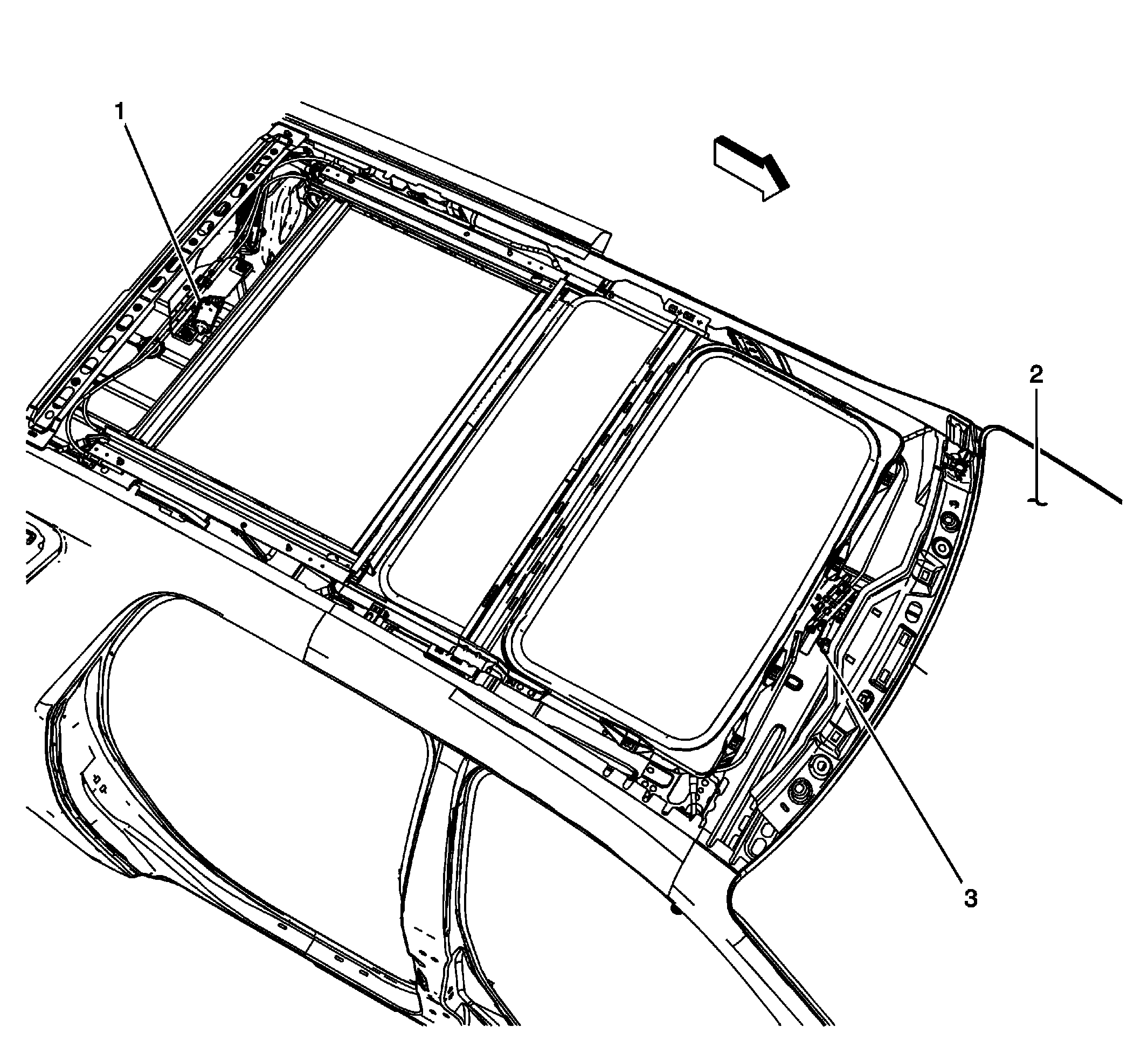

Fig 8: Identifying Sunroof Modules

Courtesy of GENERAL MOTORS CORP.
