Glow Plug Control Module Bracket Replacement

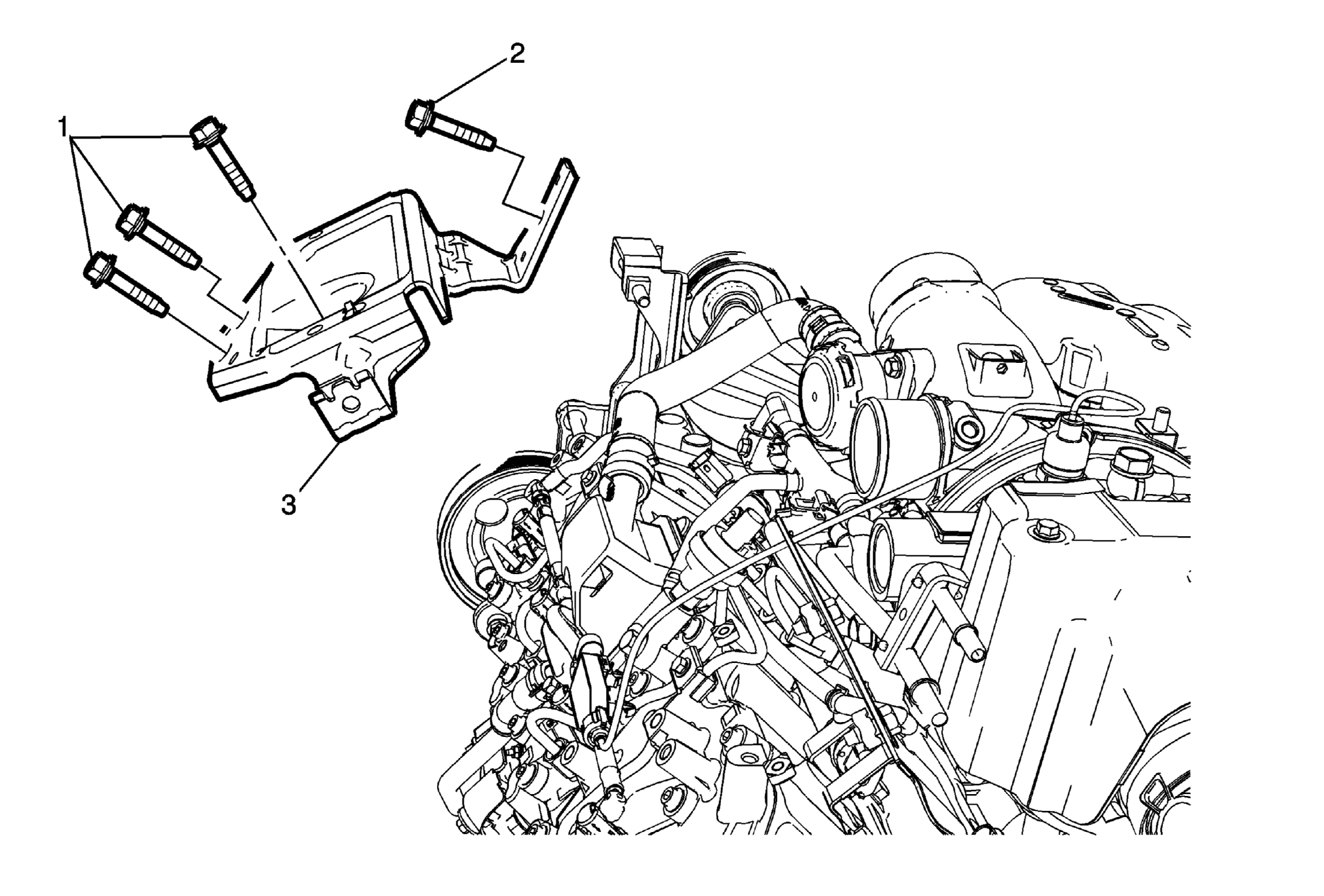

Fig 1: View Of Glow Plug Control Module Bracket & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the glow plug control module. Refer to Glow Plug Control Module Replacement .
1	Glow Plug Control Module Bracket Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  25 N.m (18 lb ft)
2	Glow Plug Control Module Bracket Fastener Tighten  10 N.m (89 lb in)
3	Glow Plug Control Module Bracket Procedure  Unclip the electrical wiring harness retainers from the glow plug control module bracket.
