Instrument Panel/Center Console Component Views

Fig 1: Behind Left Side of the Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Position Sensor (NVH)

Fig 2: Behind Right Side and Center of the Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Air Temperature Sensor - Upper (C68)
3	Air Temperature Actuator
4	Recirculation Actuator
5	Air Temperature Sensor - Lower (C68)

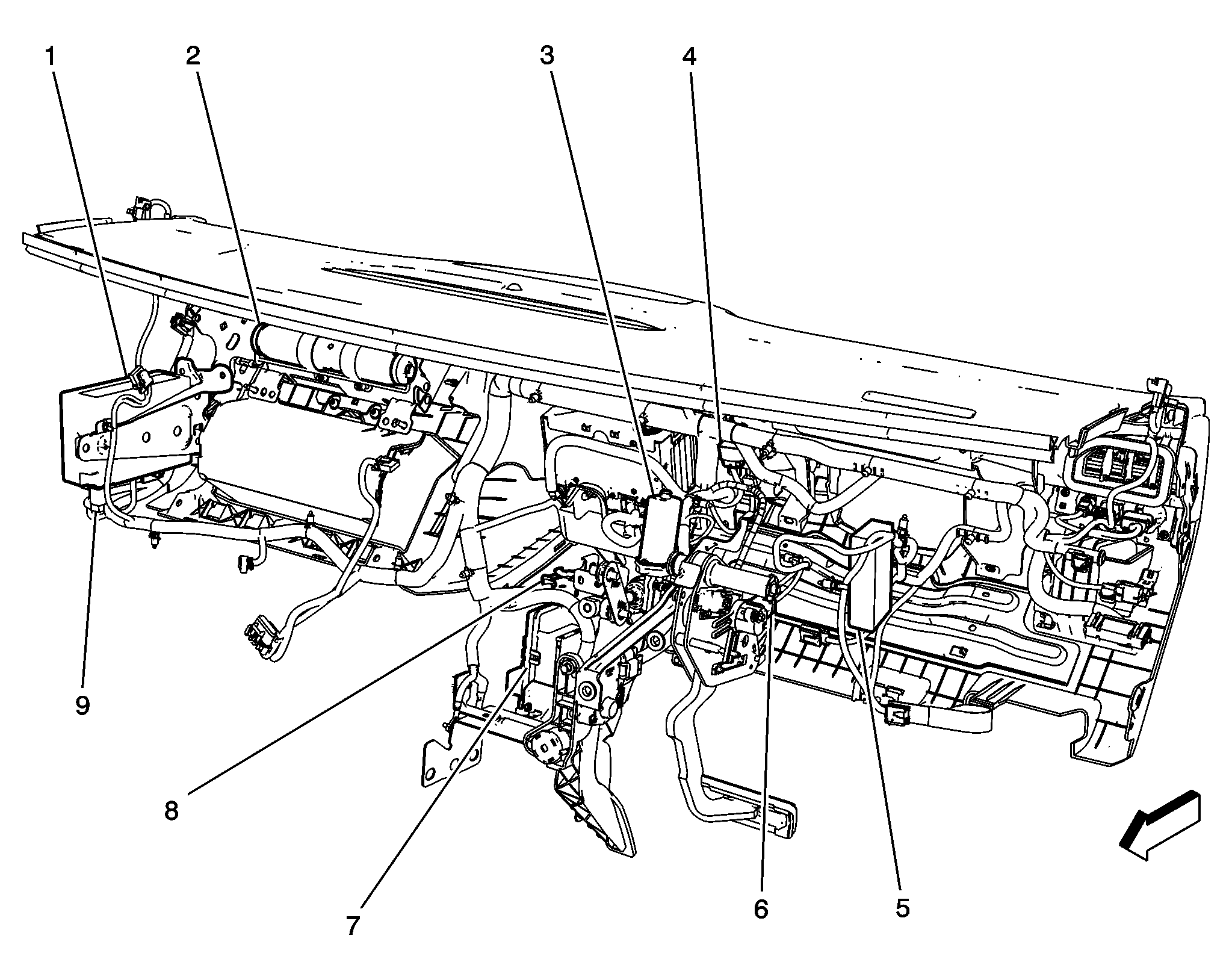

Fig 3: Behind the Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communications Interface Module (VCIM) (UE1)
2	Inflatable Restraint I/P Module
3	Adjustable Pedal Position Motor (JF4)
4	Theft Deterrent Module (TDM)
5	Adjustable Pedal Module (JF4)
6	Brake Pedal Position (BPP) Sensor
7	Body Control Module (BCM)
8	Adjustable Pedal Position Sensor (JF4)
9	Wireless Communication Interface Antenna Bluetooth (UPF)

Fig 4: Lower Left Side of the Instrument Panel Components (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Lower Left Side of the Instrument Panel Components (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pedal Position (BPP) Sensor
2	Accelerator Pedal Position (APP) Sensor
3	Accelerator Pedal
4	Brake Pedal

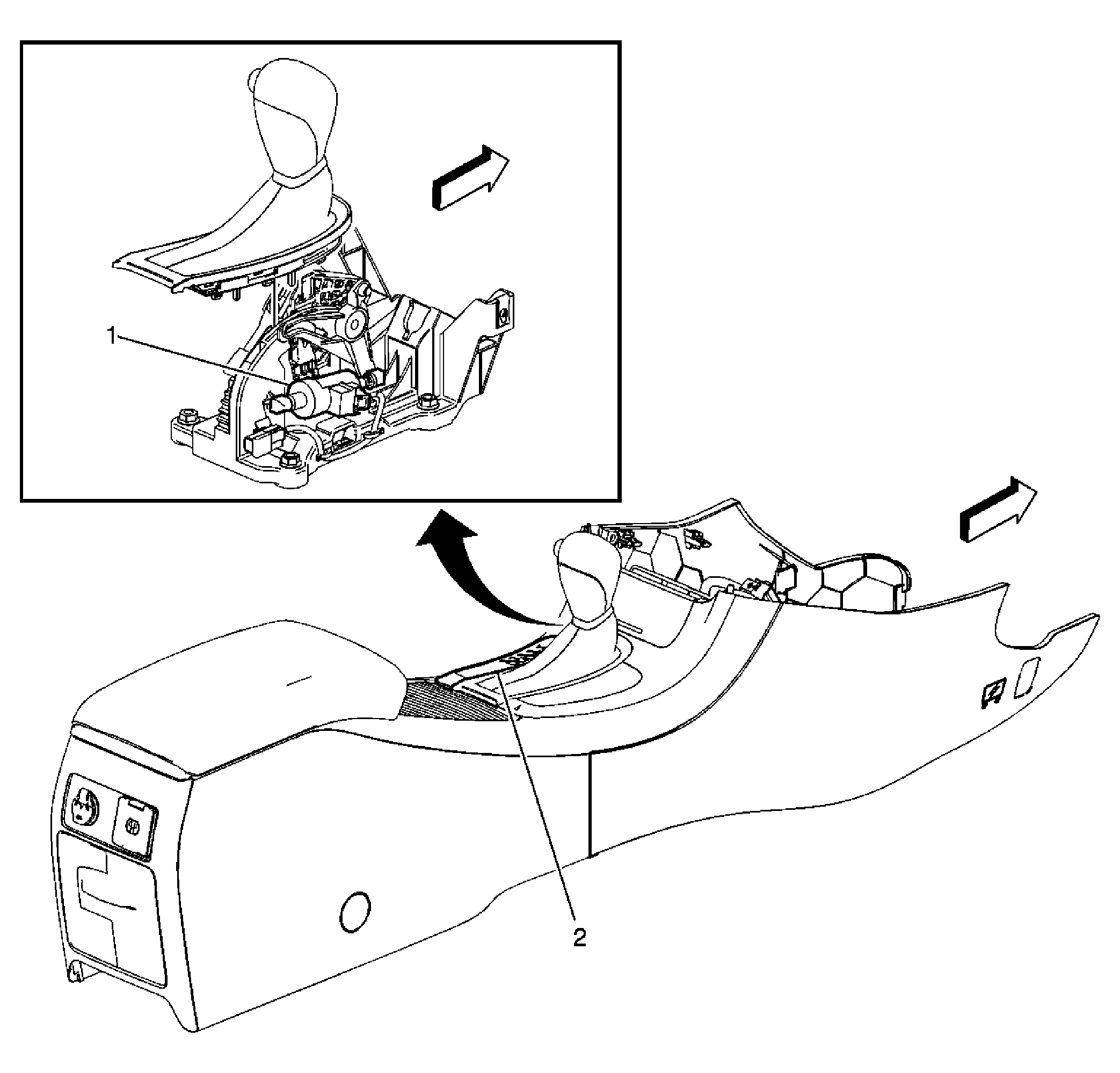

Fig 6: Center Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Shift Lock Control Solenoid
2	Automatic Transmission Shift Lever Position Indicator

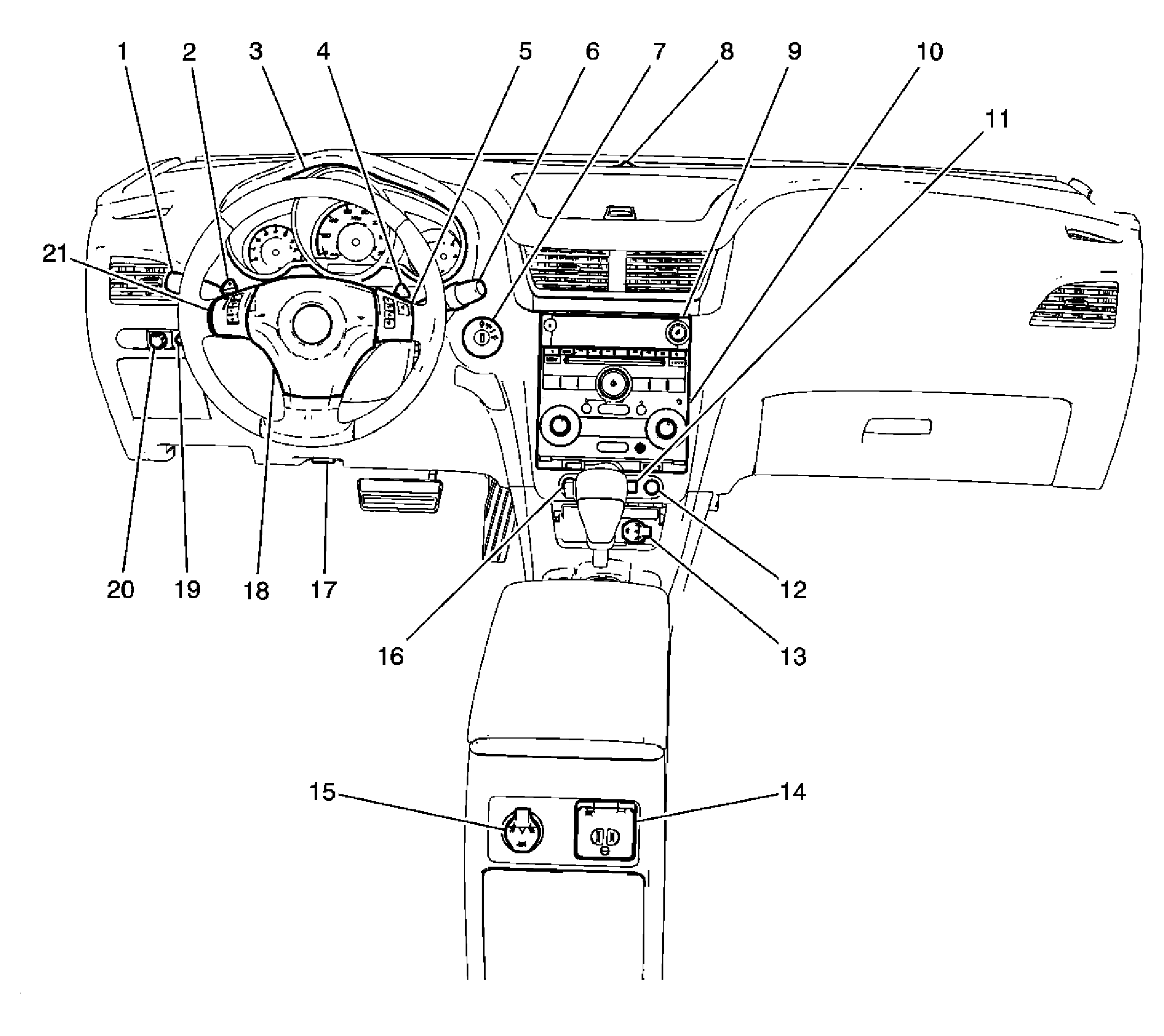

Fig 7: Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Automatic Transmission Manual Shift Switch - Left (KB7)
3	Instrument Panel Cluster (IPC)
4	Automatic Transmission Manual Shift Switch - Right (KB7)
5	Steering Wheel Control Switch - Right
6	Windshield Wiper/Washer Switch
7	Ignition Switch
8	Sunload Sensor (C68)/Ambient Light Sensor (C60)
9	Radio
10	HVAC Control Module
11	Inflatable Restraint I/P Module Indicator
12	Traction Control Switch (TCS)
13	Accessory Power Outlet - I/P
14	Accessory Power Outlet - 110V AC (KV1)
15	Accessory Power Outlet - Center Console
16	Hazard Warning Switch
17	Data Link Connector (DLC)
18	Inflatable Restraint Steering Wheel Module
19	Fog Lamp Switch (T96)
20	I/P Dimmer Switch
21	Steering Wheel Control Switch - Left

Fig 8: Instrument Panel Components - Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Power Steering Control Module (PSCM)

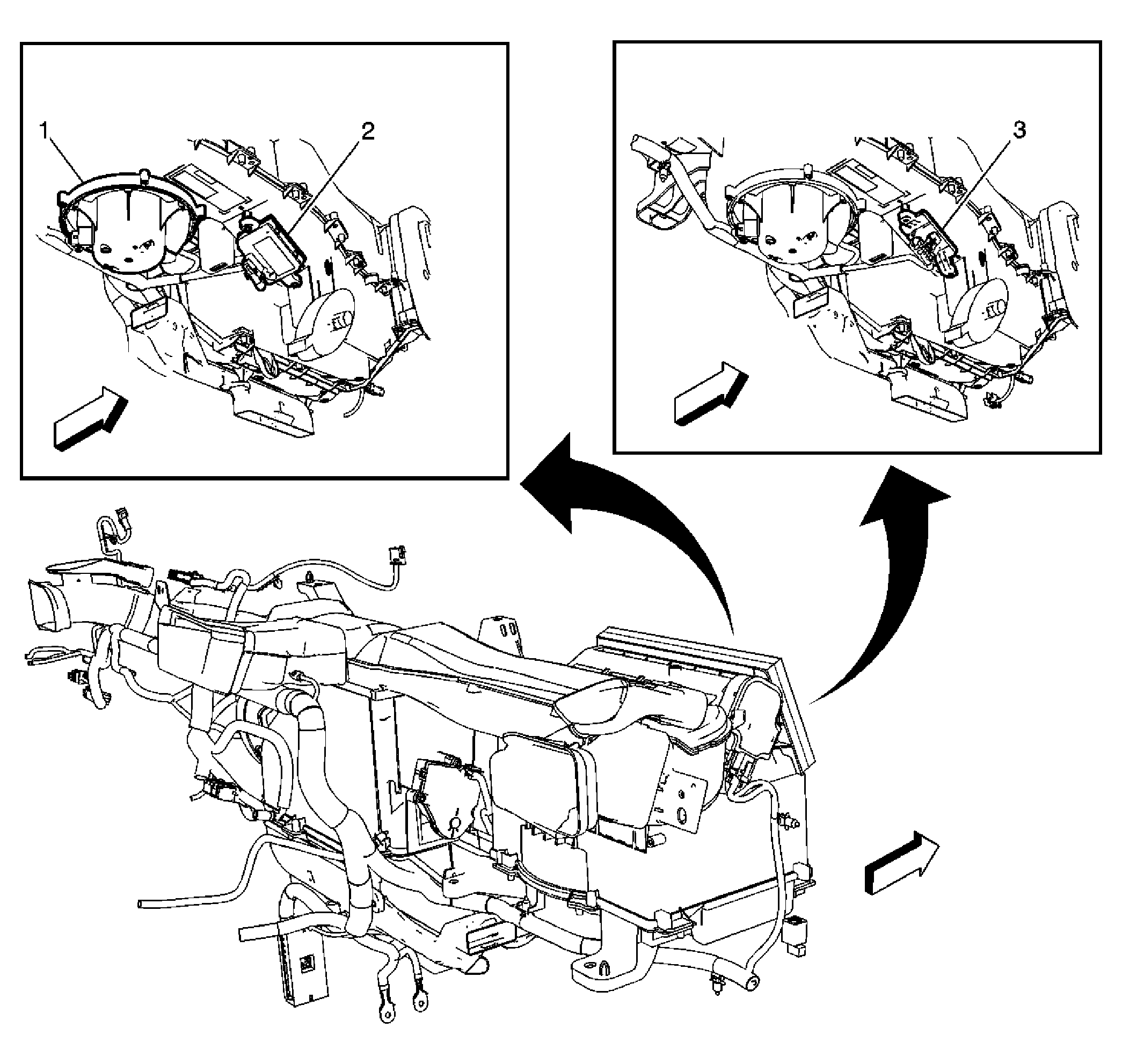

Fig 9: Under the Right Side of the Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor
2	Blower Motor Control Module (C68)
3	Blower Motor Resistor (C60)
