Impala Police
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System And Remote Functions
>>
Schematic and Routing Diagrams
>>
Remote Function Schematics
Remote Function Schematics

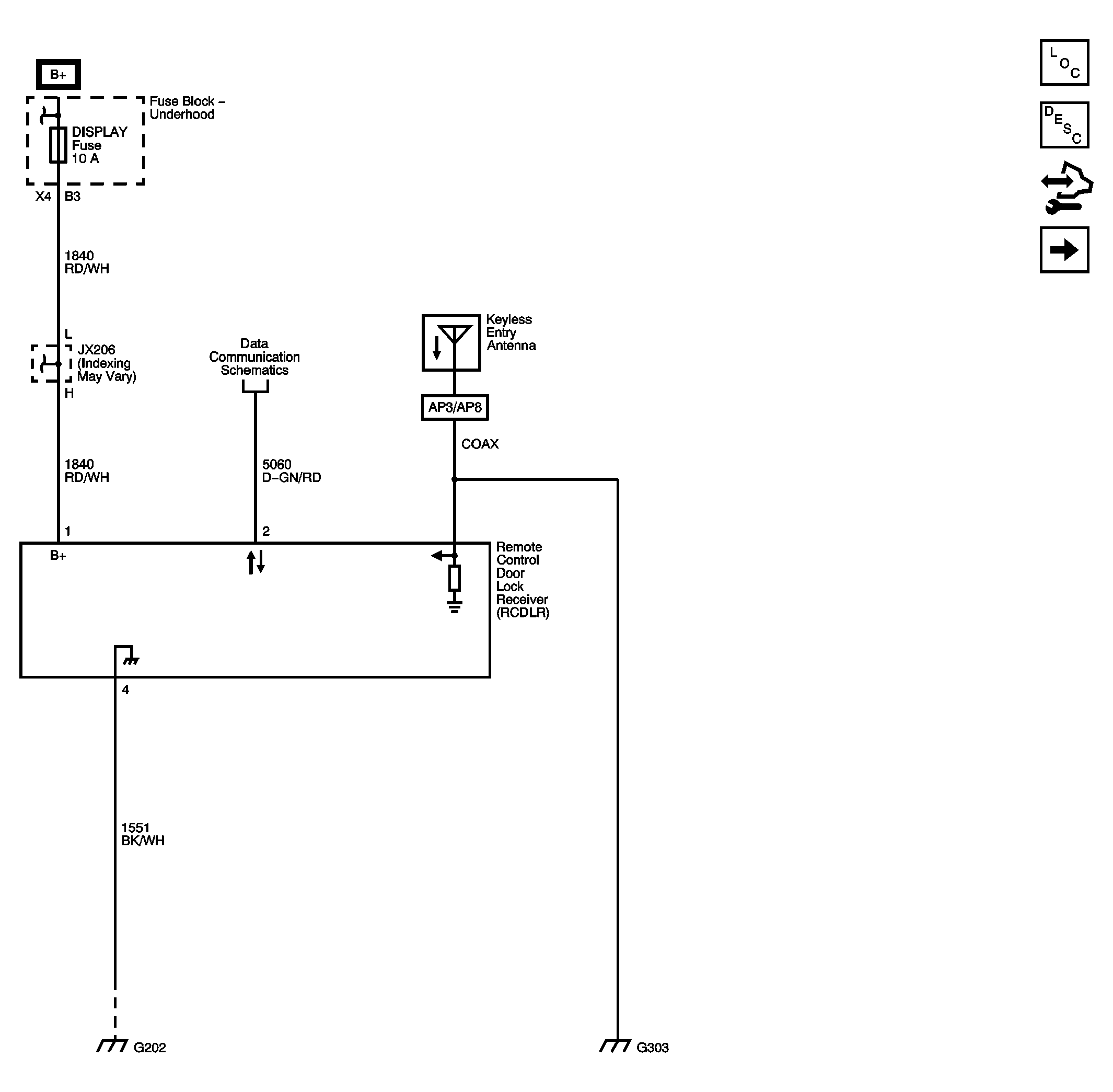

Fig 1: Keyless Entry
Courtesy of GENERAL MOTORS CORP.

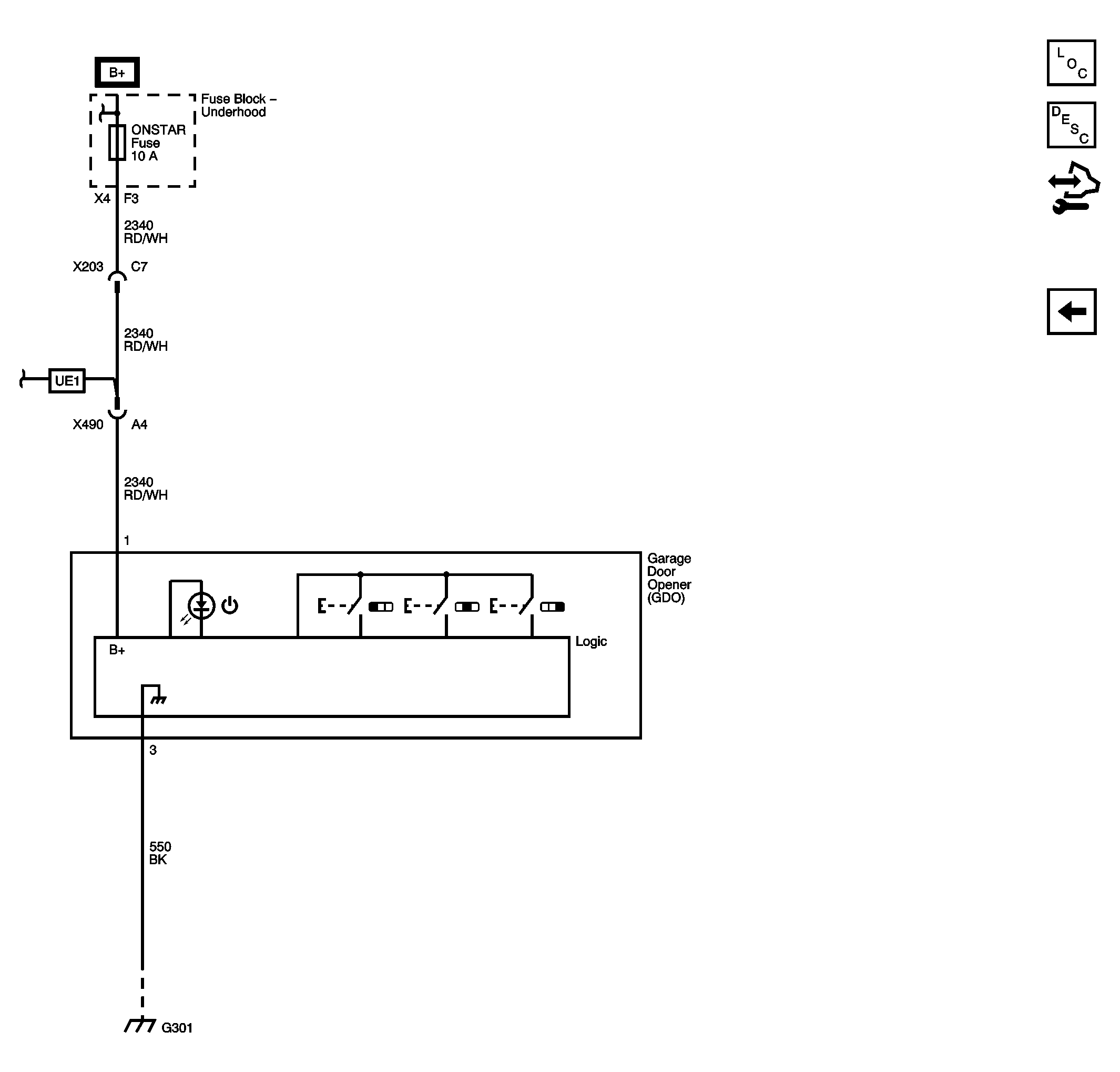

Fig 2: Garage Door Opener
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
