WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

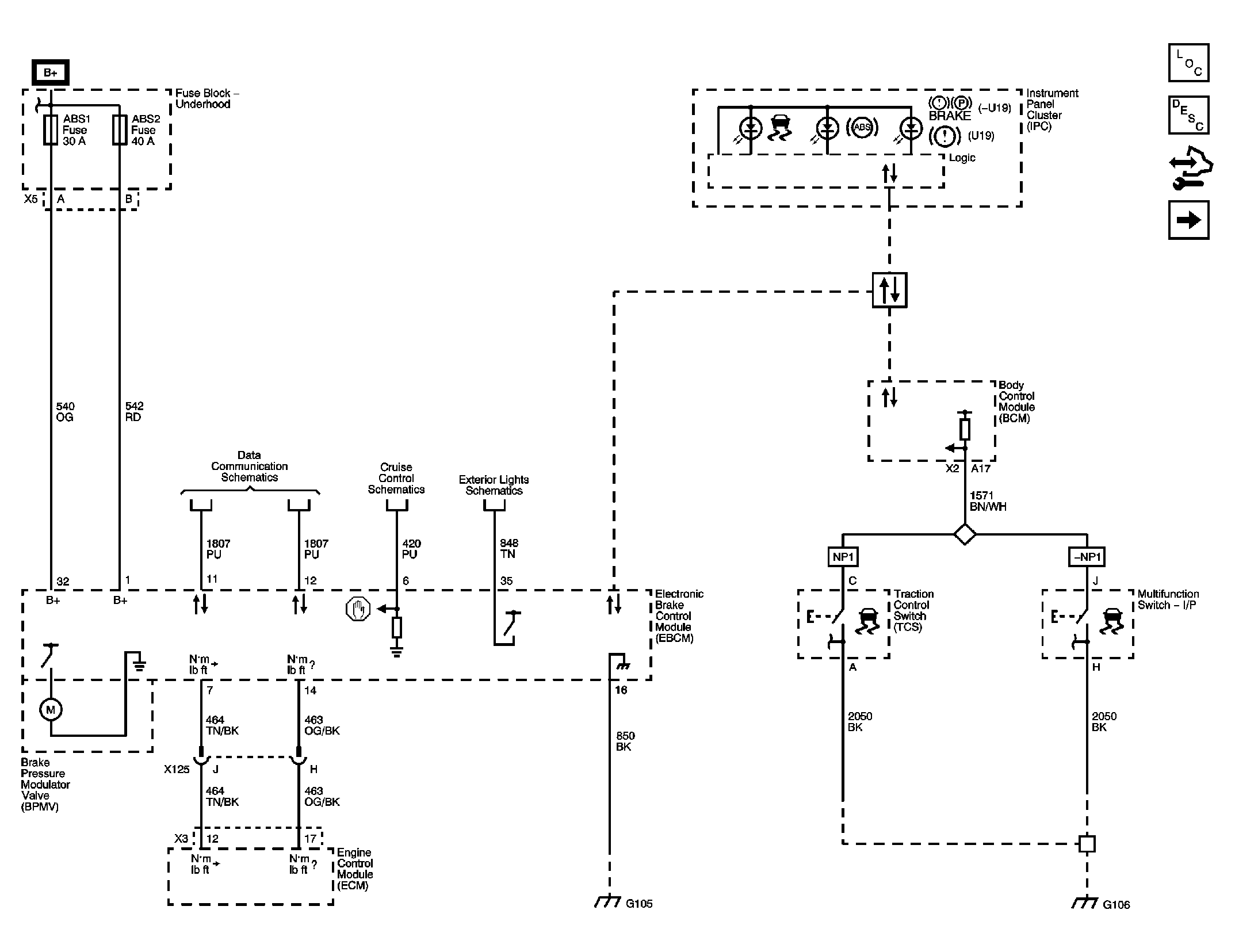

Fig 1: Power, Ground, Serial Data, Traction Control, and Vehicle Inputs Wiring Schematic
