Installation Procedure

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper motor onto the wiper transmission frame.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the bolts in order to secure the motor to the frame.

    Tighten:  Tighten the wiper motor mounting bolts to 9 N.m (81 lb in).

    3. Fig 1: Illustrating Wiper Transmission To Crank Arm Seal Compression
    GM429902Courtesy of GENERAL MOTORS CORP.
    NOTE: Lubricate the socket with Multi-Purpose Lubricant, Superlube, GM P/N 12346241 (Canadian P/N 10953474) or equivalent.
  3. Install the transmission drive link socket onto the crank arm ball of the wiper motor using the J 39529  . See Special Tools .

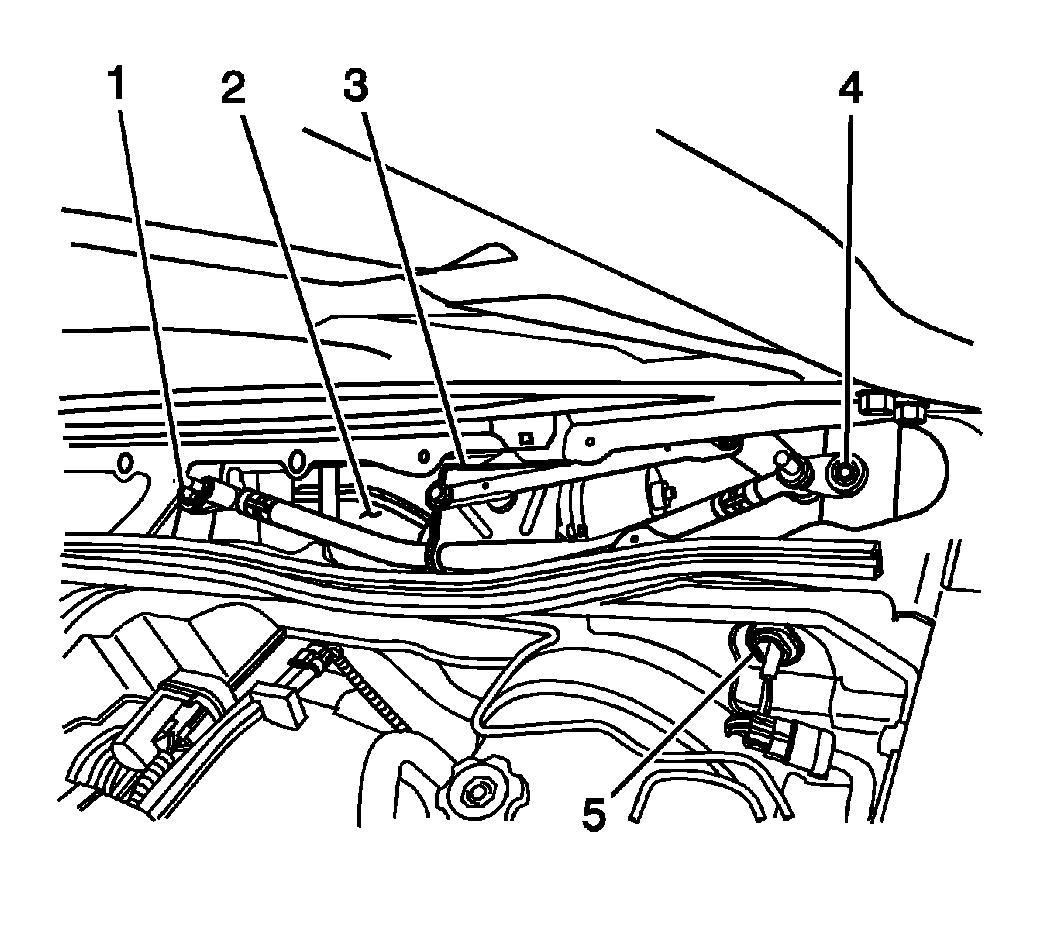

    4. Fig 2: View Of Wiper Transmission
    GM1272633Courtesy of GENERAL MOTORS CORP.
  4. Install the wiper transmission (3) to the plenum. Refer to Windshield Wiper Transmission Replacement .
  5. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  6. Install the wiper arms. Refer to Windshield Wiper Arm Replacement .
  7. Test the operation of the windshield wiper system.
