Installation Procedure

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

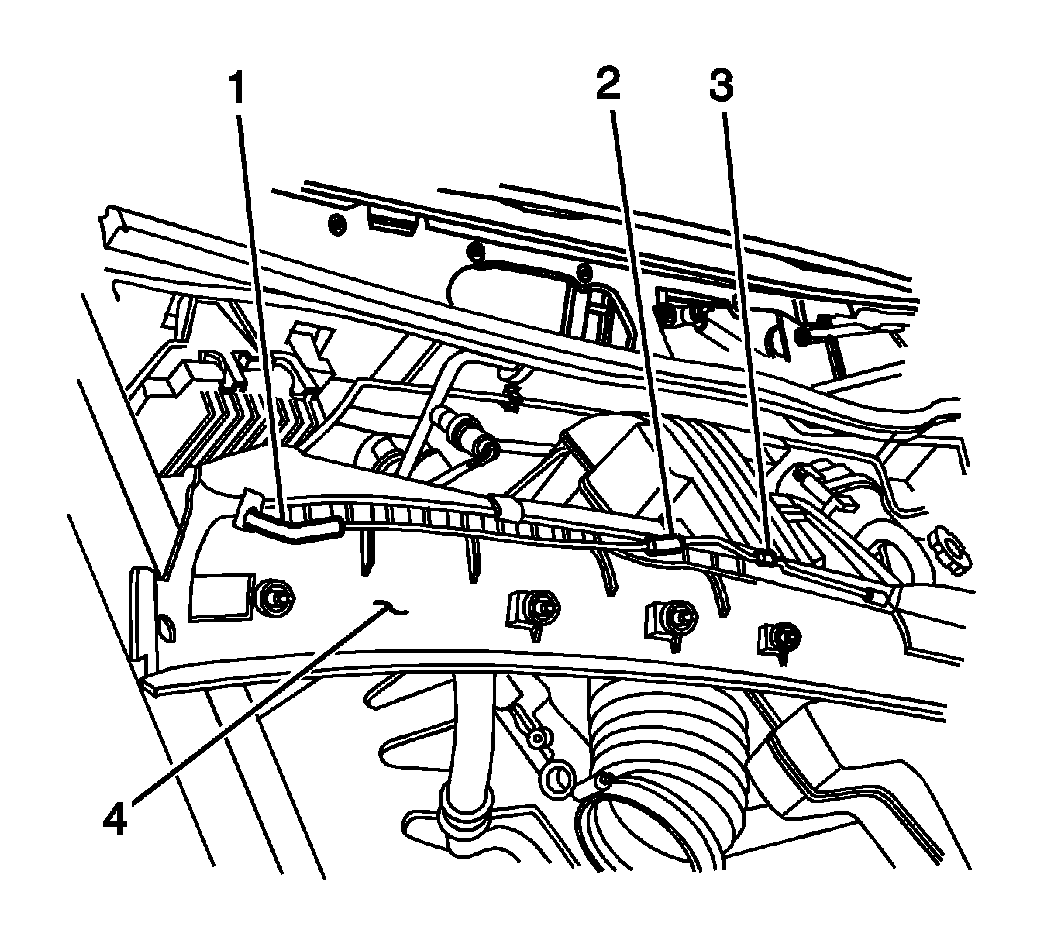

    Fig 1: View Of Washer Nozzles & Air Inlet Panel
    GM1272650Courtesy of GENERAL MOTORS CORP.
  1. Position the nozzles to the air inlet panel.
  2. Press the nozzles into the panel in order to secure.
  3. Install the hose to the nozzles (2, 3).
  4. Secure the hose to the air inlet panel.

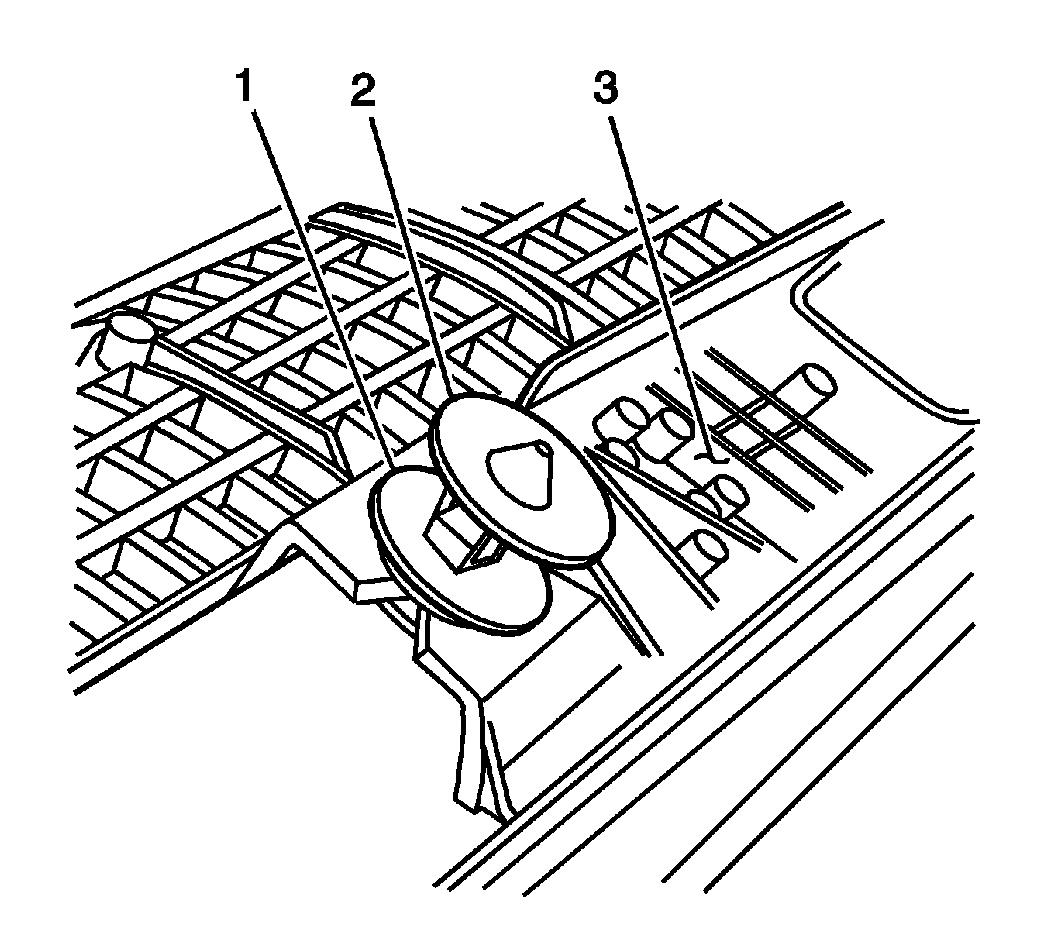

    5. Fig 2: View Of Air Inlet Grille Panel Retainers & Foam Washers
    GM1272648Courtesy of GENERAL MOTORS CORP.
  5. Ensure the foam washers (2) are secure to the retainers (1) prior to installing the air inlet grille panel (3) to the cowl.
  6. Position the air inlet panel around the hood hinges.
  7. Secure the retainers (1) to the cowl panel.

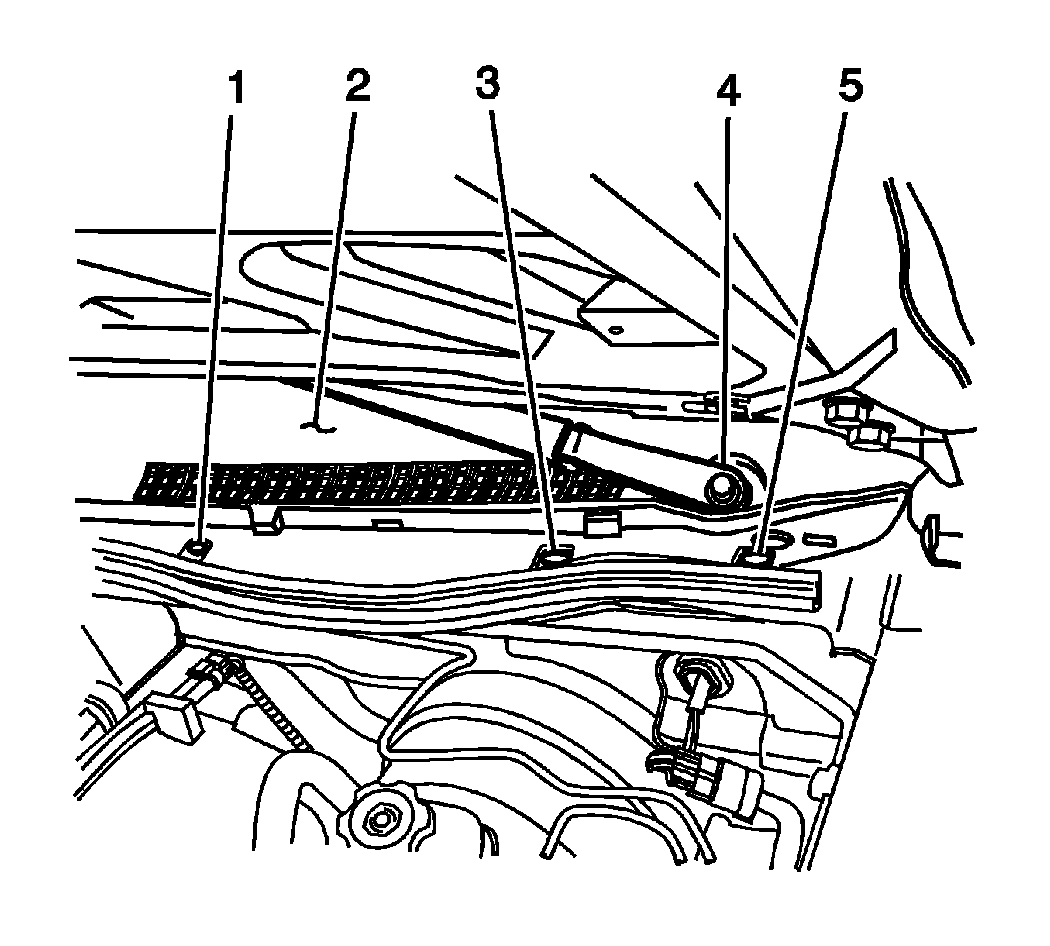

    8. Fig 3: View Of Air Inlet Panel Grille Retainers
    GM1272641Courtesy of GENERAL MOTORS CORP.
  8. Install the retainers (5) to the air inlet panel (2) in order to secure.
  9. Install the fixed antenna mast. Refer to Fixed Antenna Mast Replacement .
  10. Install the wiper arms. Refer to Windshield Wiper Arm Replacement .
  11. Close the hood.
  12. Test the washer spray pattern.
