Air Cleaner Element Replacement

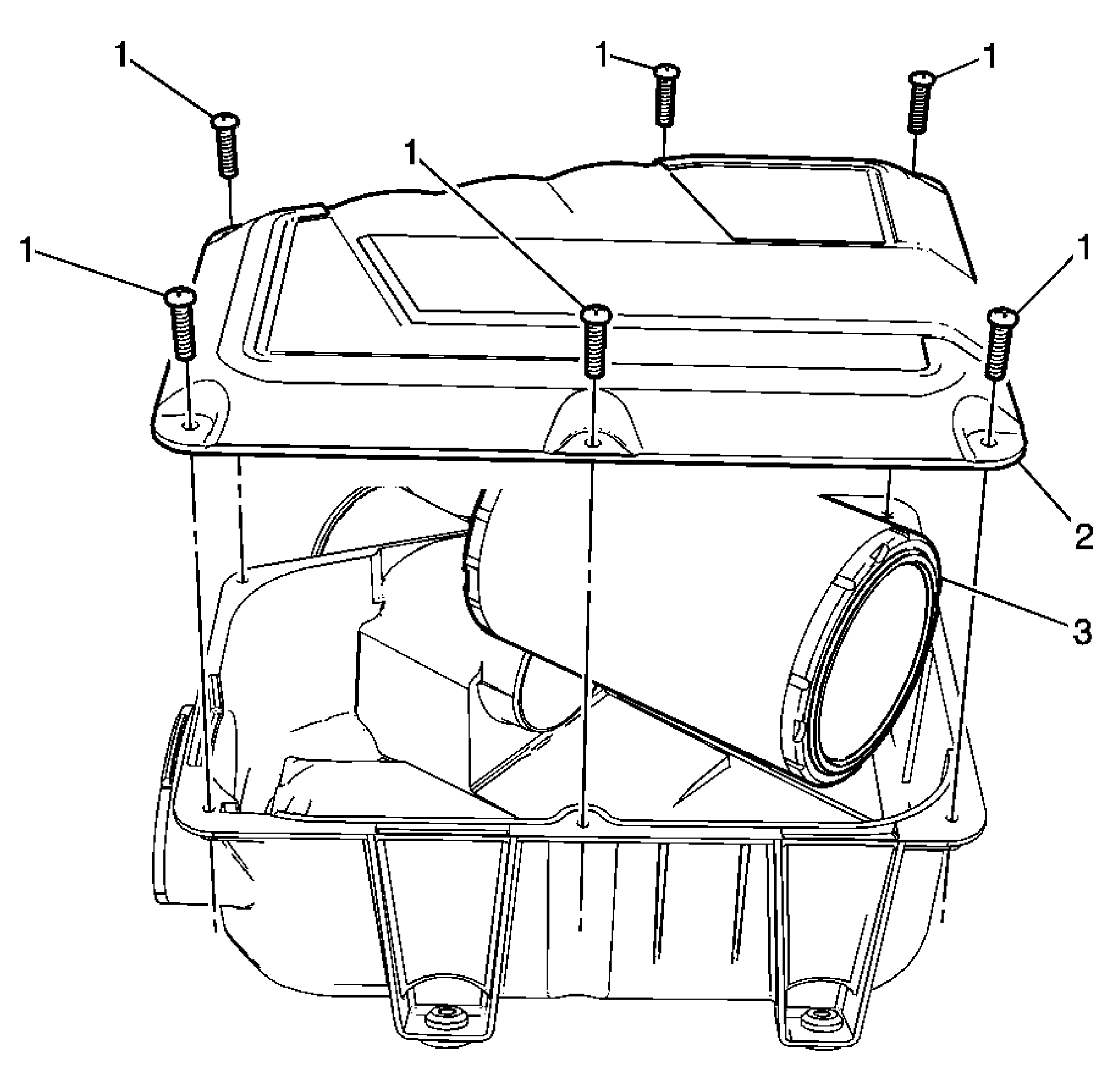

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Cleaner Assembly Screw (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Air Cleaner Assembly Cover
3	Air Cleaner Filter
