Moveable Window Schematics
Moveable Window Schematics

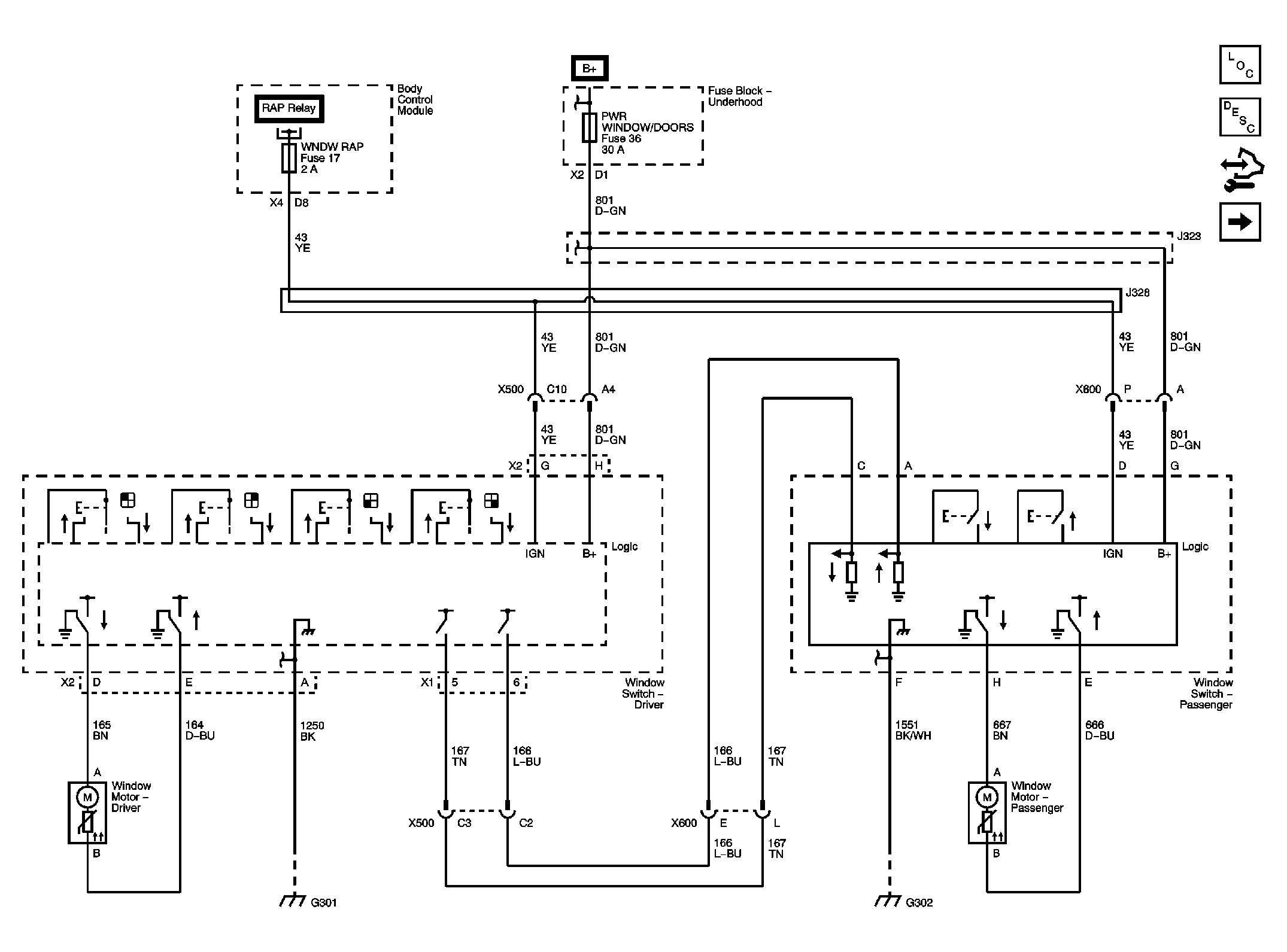

Fig 1: Front
Courtesy of GENERAL MOTORS CORP.

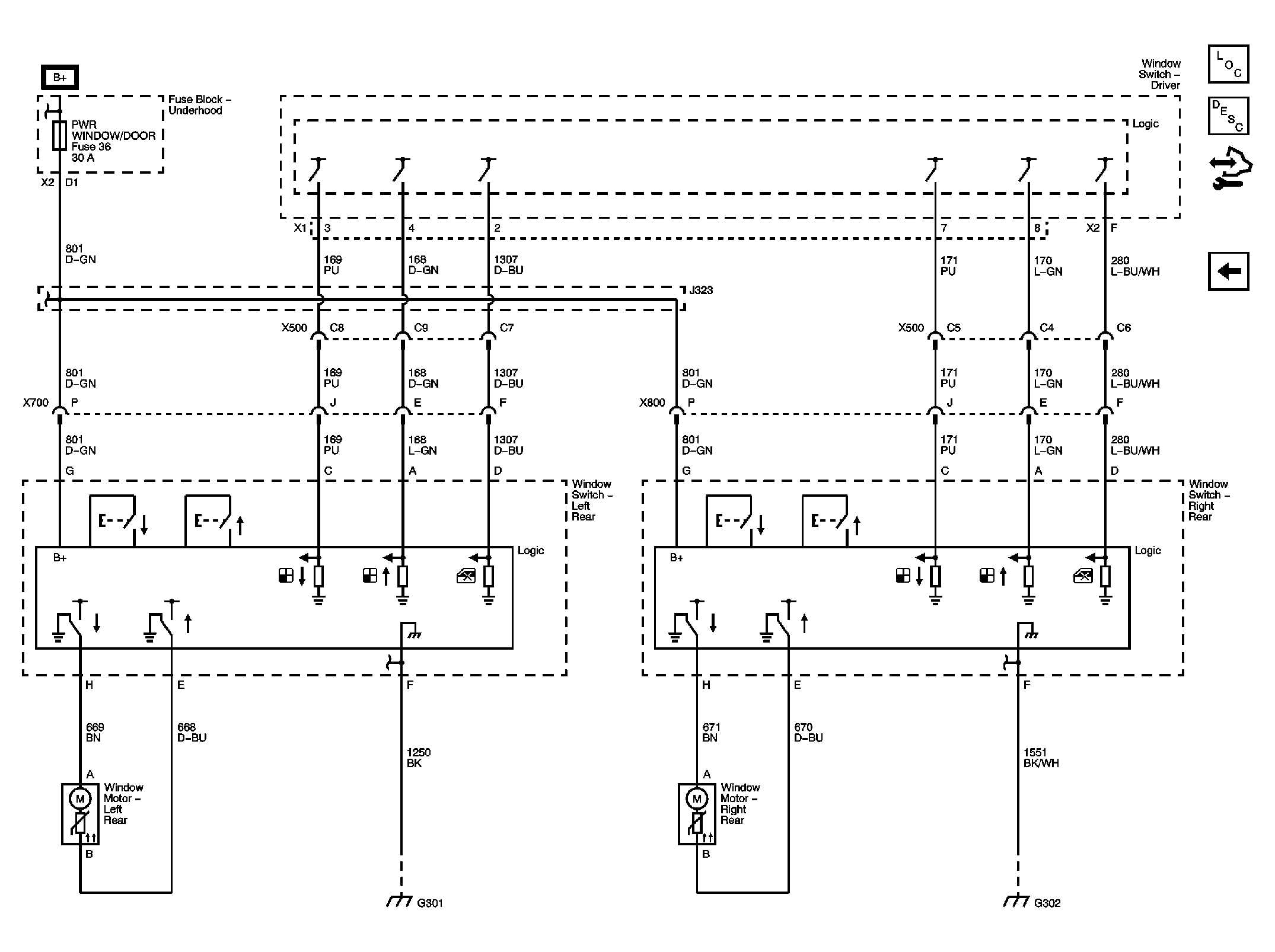

Fig 2: Rear
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
