Front Side Door Window Switch Replacement

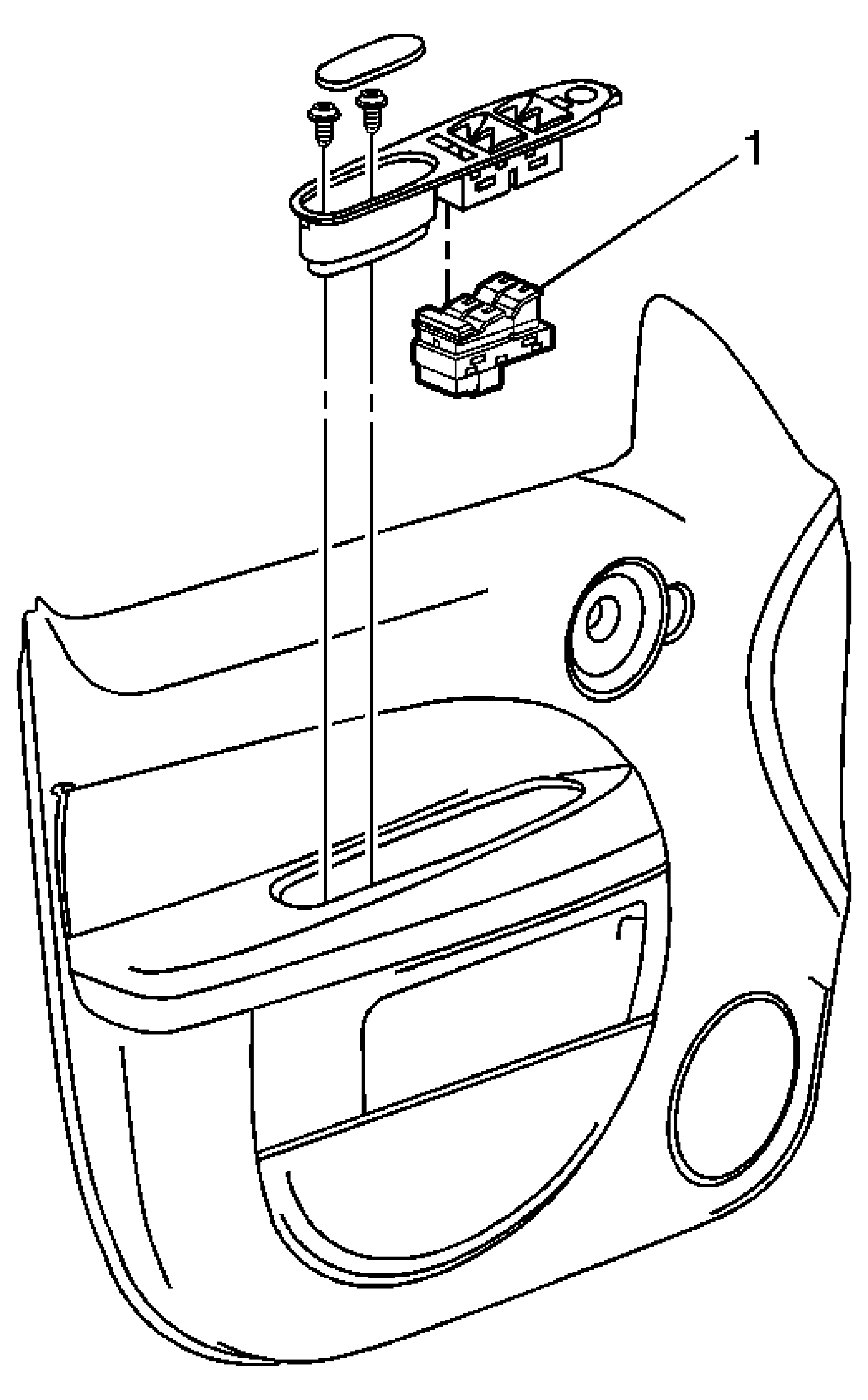

Fig 1: Front Side Door Window Switch
GM2105274Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the armrest pull cup. Refer to Armrest Pull Cup Replacement .
1 Power Window Switch
