Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

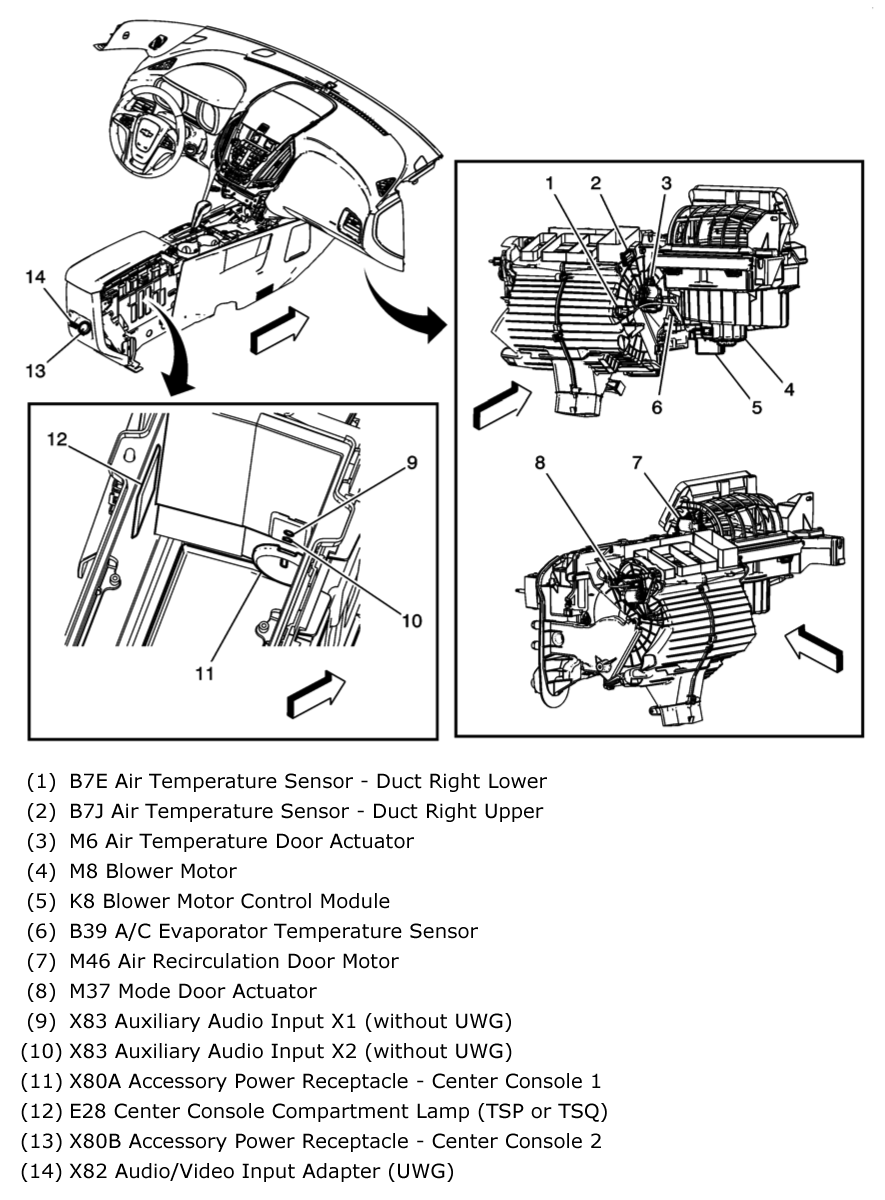

| Blower Motor Control Module | HVAC module. See Figure. |

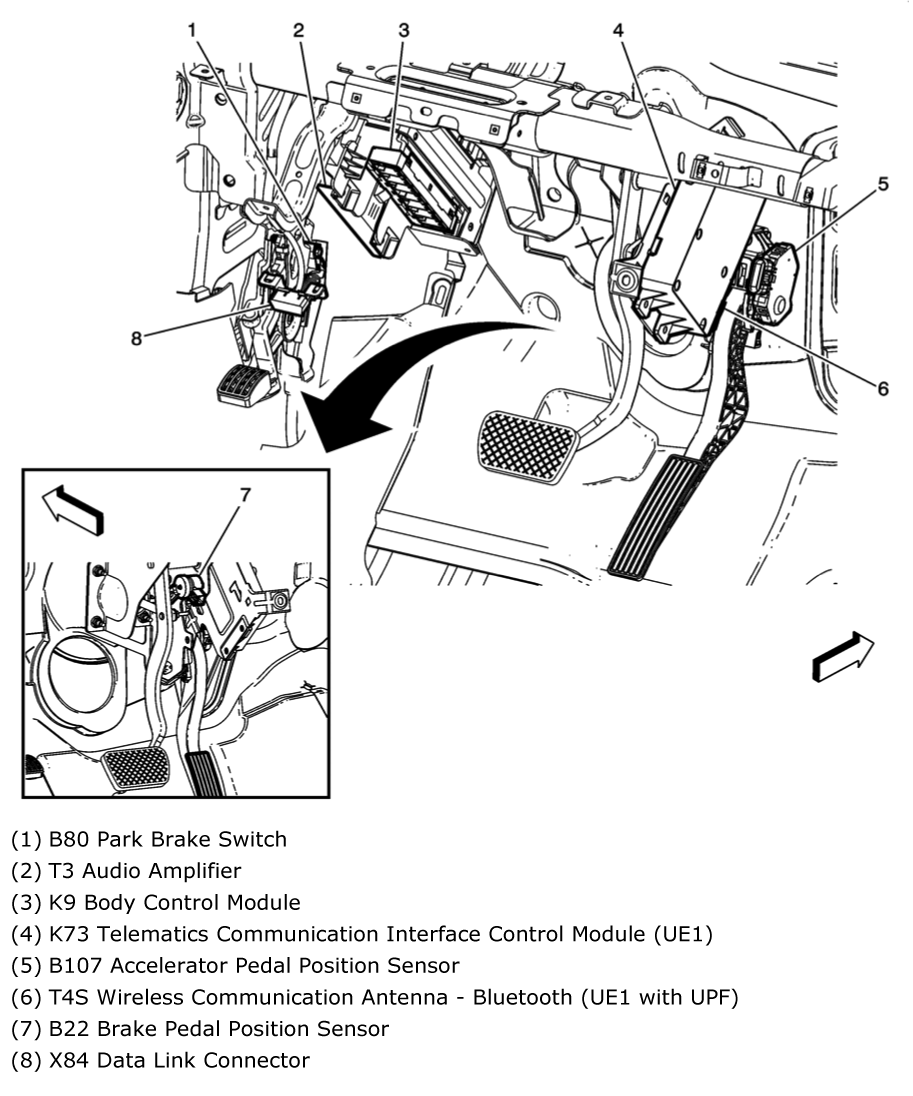

| Body Control Module | Left dash. See Figure. |

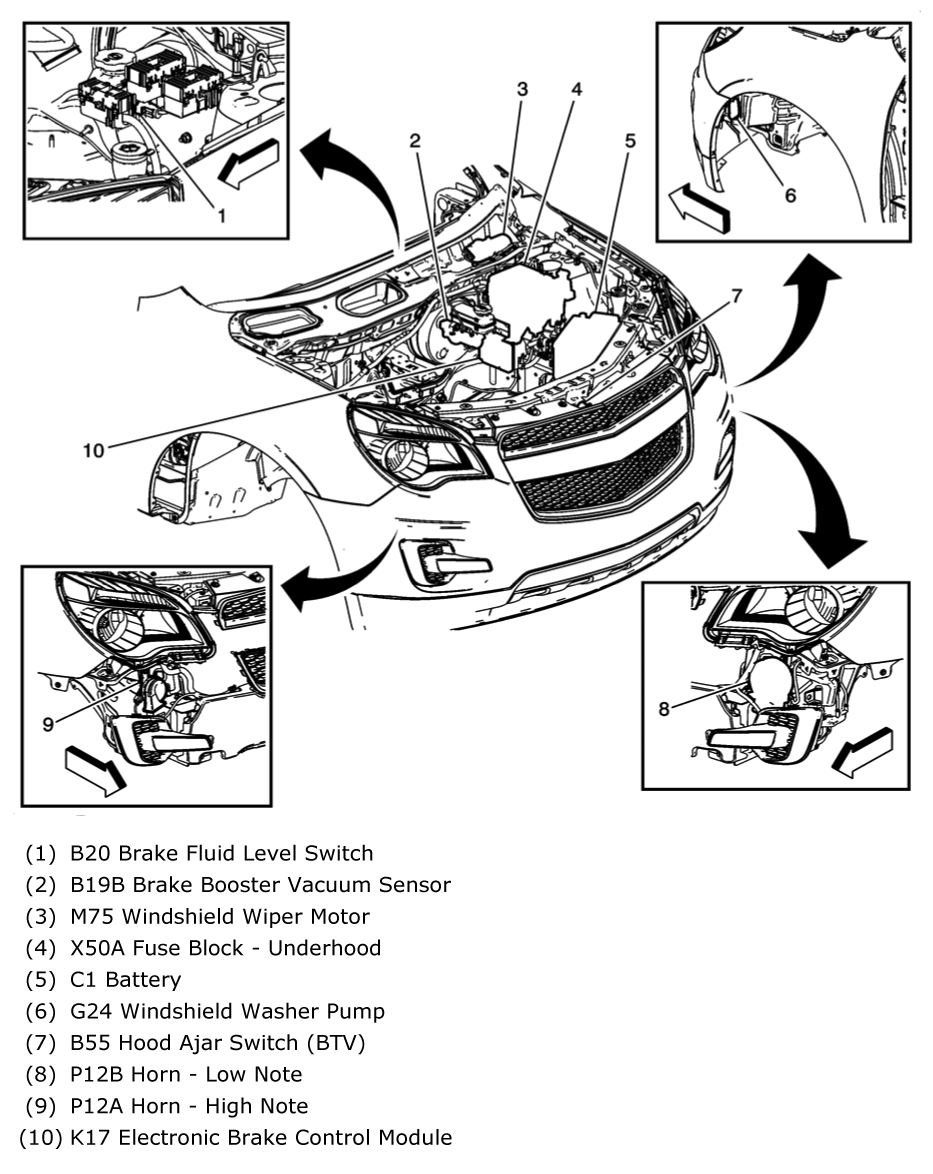

| Electronic Brake Control Module | Rear engine compartment. See Figure. |

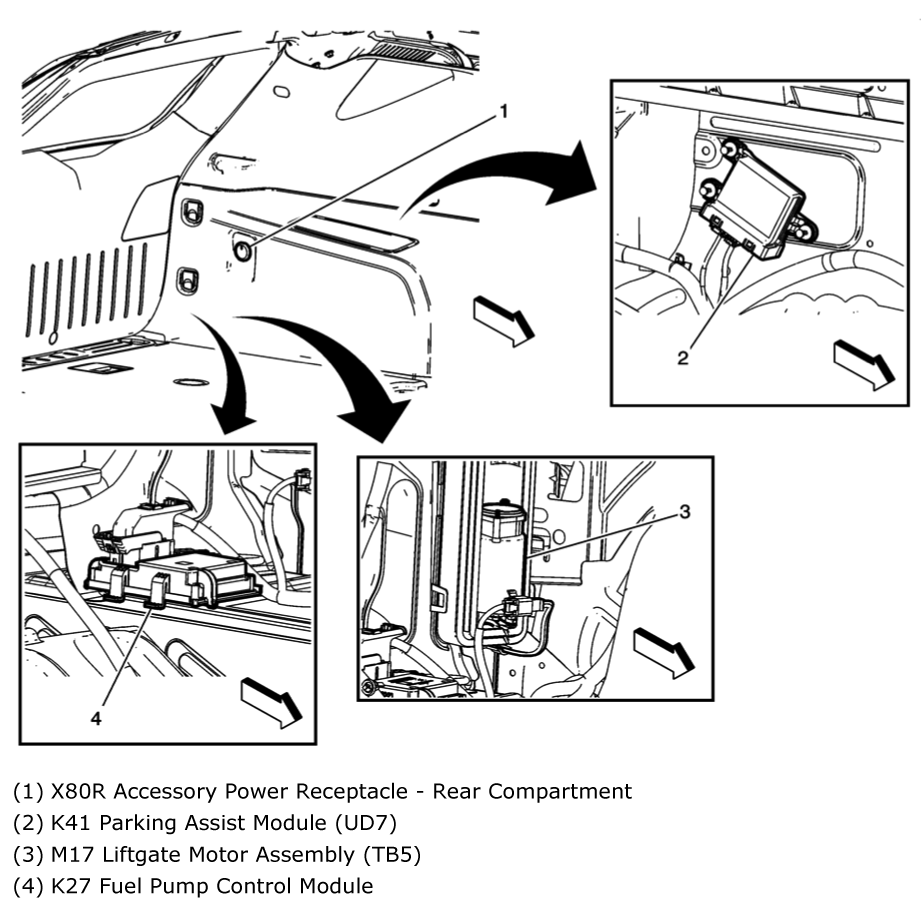

| Fuel Pump Control Module | Left quarter trim panel. See Figure. |

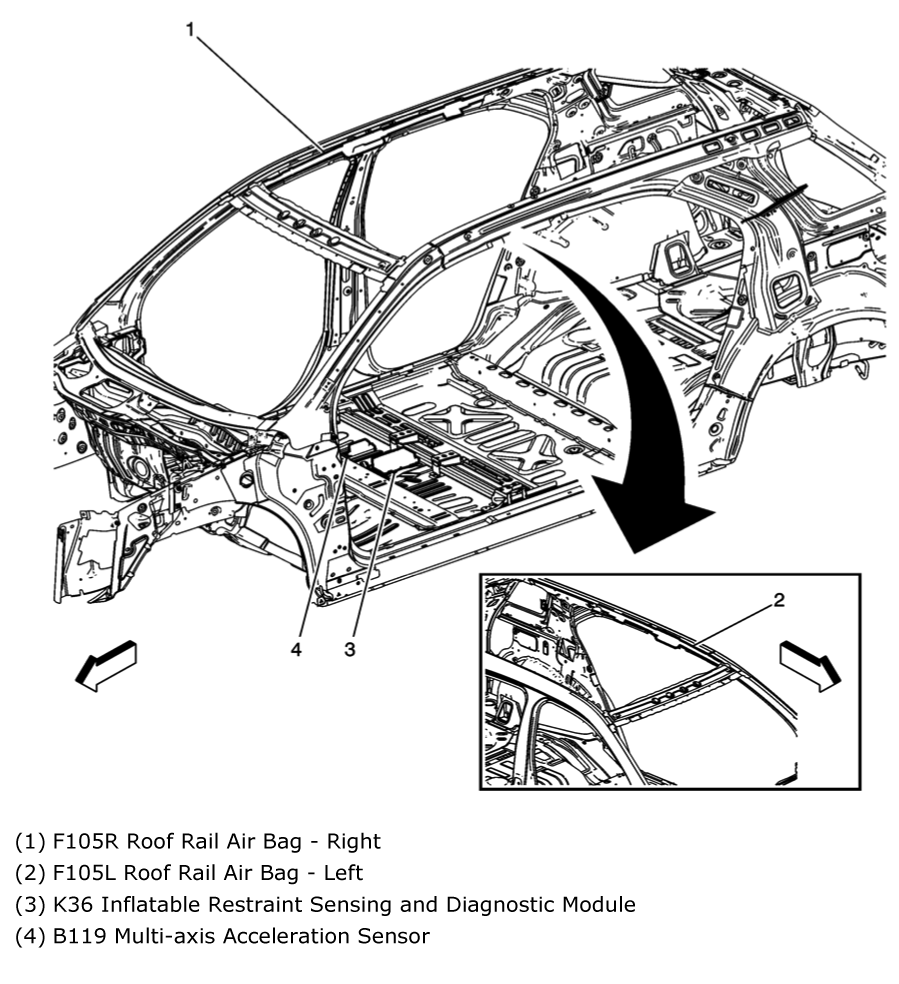

| Inflatable Restraint Sensing & Diagnostic Module | Center console. See Figure. |

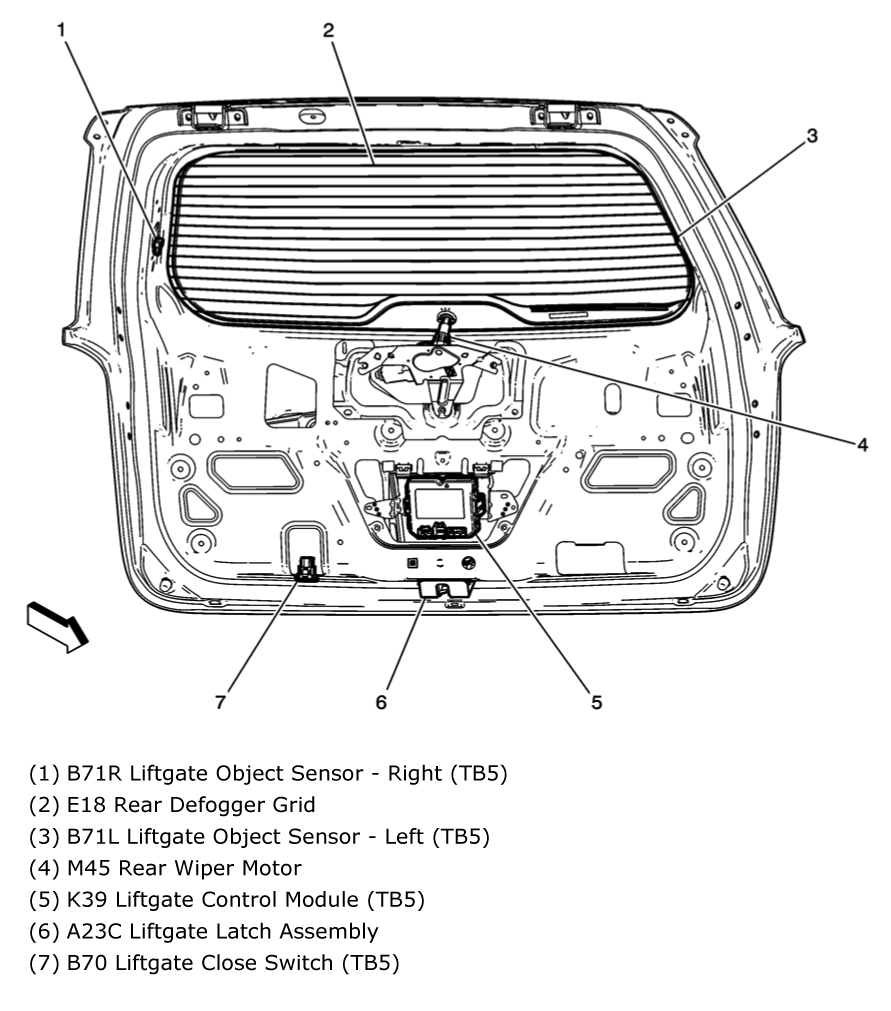

| Liftgate Control Module | Liftgate. See Figure. |
| Parking Assist Module | Left quarter trim panel. See Figure. |

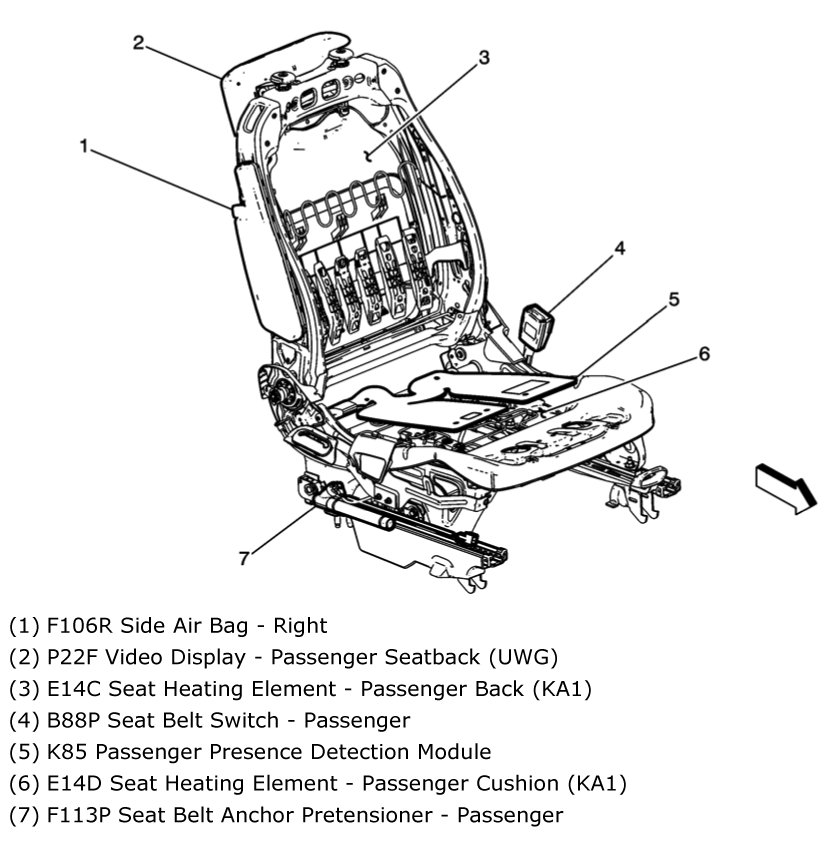

| Passenger Presence Detection Module | Seat cushion. See Figure. |

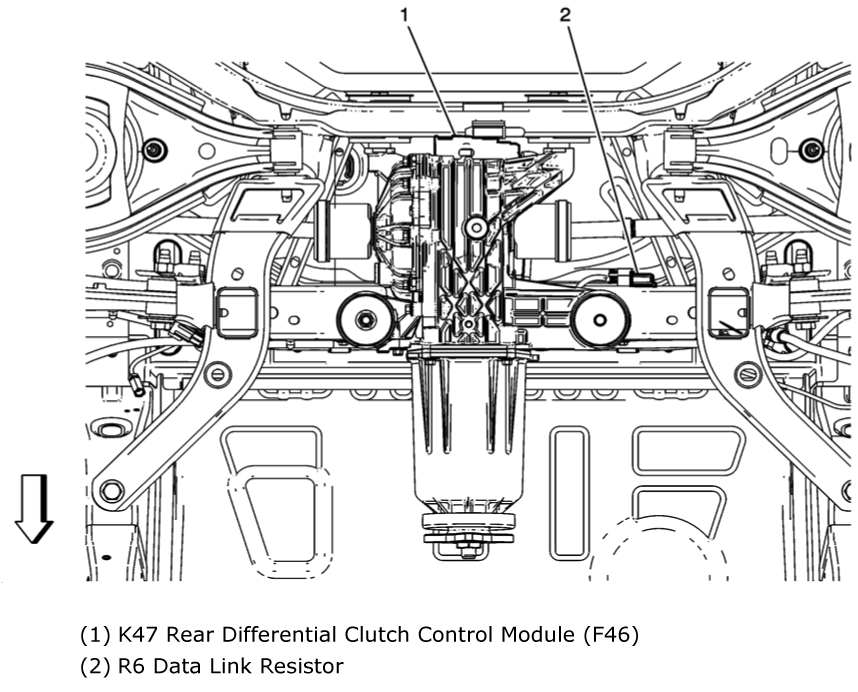

| Rear Differential Clutch Control Module | Rear differential. See Figure. |

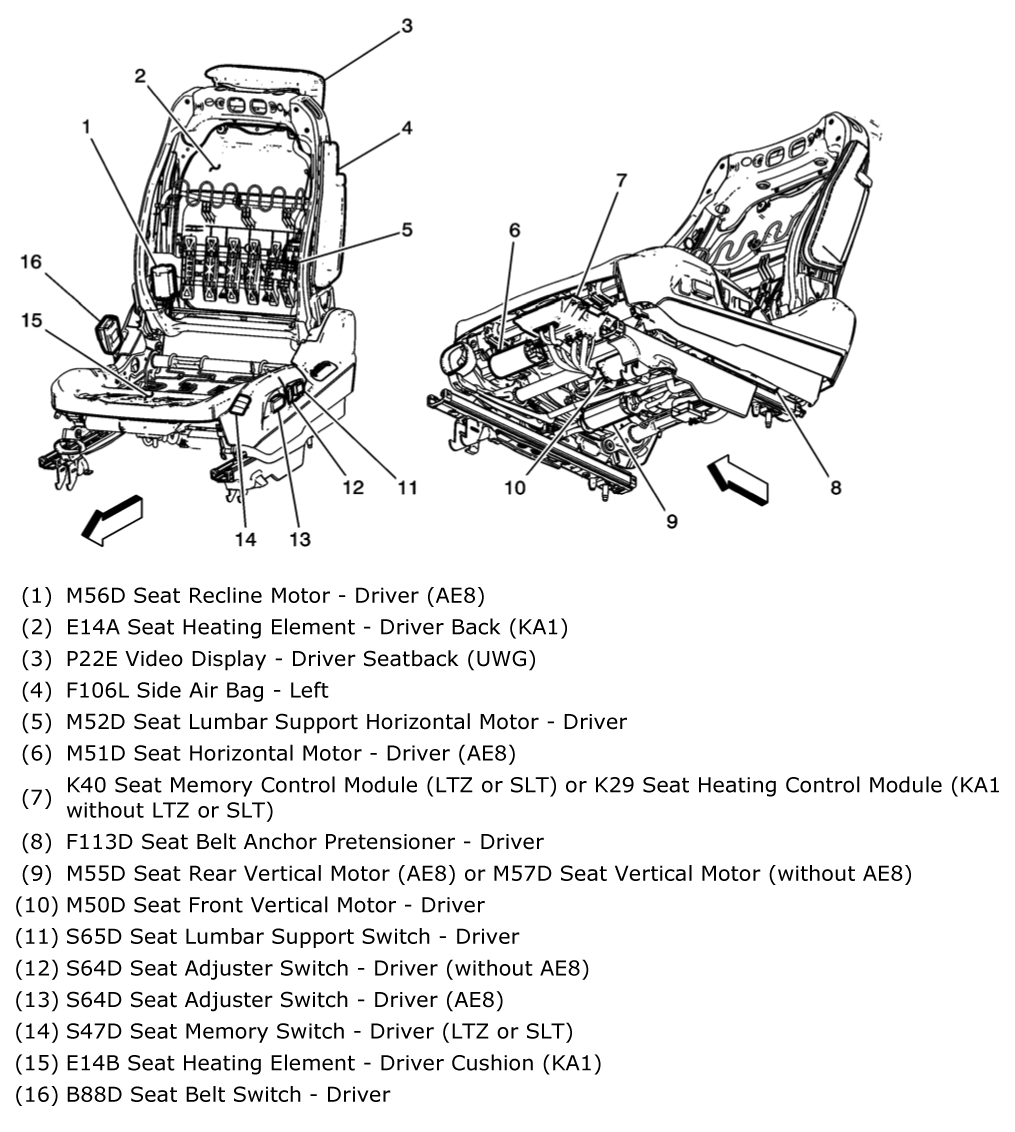

| Seat Memory Control Module Or Seat Heating Control Module | Lower seat frame. See Figure. |
| Telematics Communication Interface Control Module | Left dash. See Figure. |
